Product description:

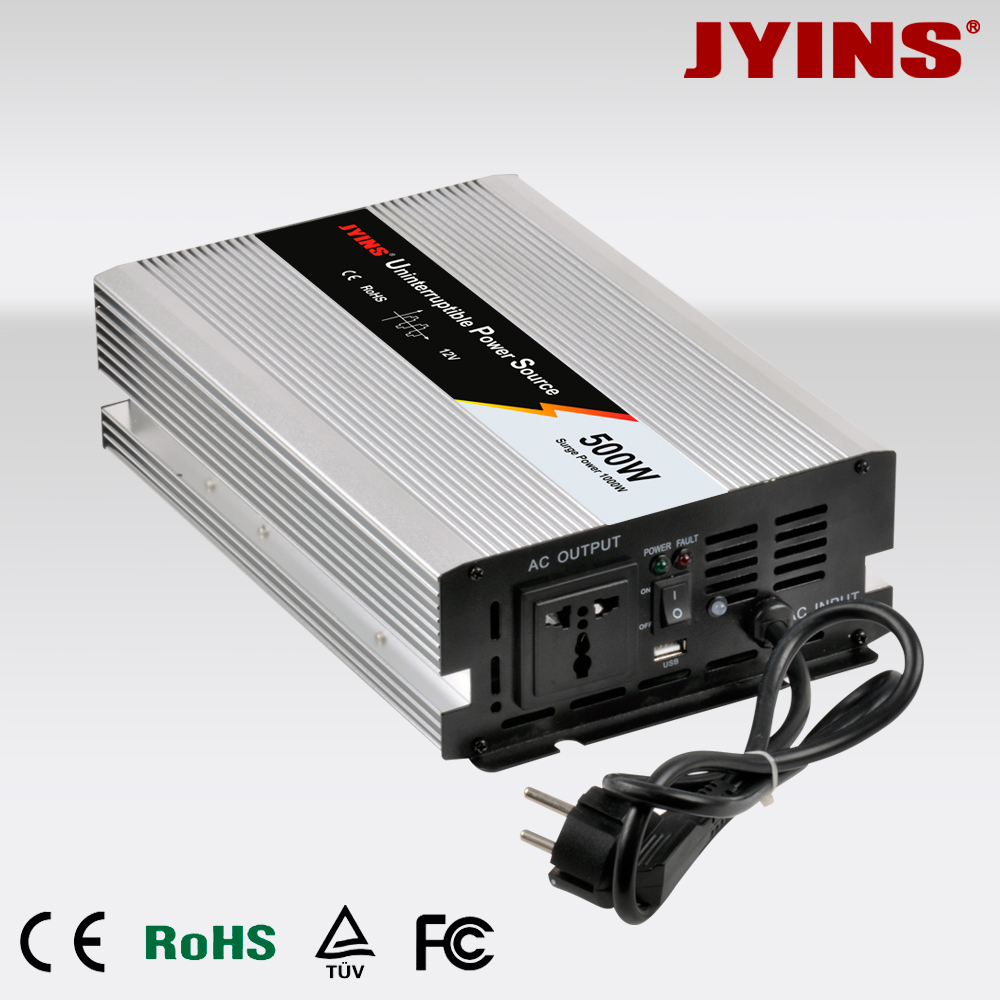

JYMU series inverter/charger is combination of an modified sine inverter, battery charger , Auto transfer switch into one complete system. When household AC power is disconnected, the inverter/charger inverts DC battery power into AC electricity. When AC power is avaliable, it recharges the battery.JYPU inverter/charger are available in different sizes and power ranges to run various of applications.

Application For:
1. Industrial equipment: solar energy system, solar street light system, etc.
2. Travel set equipment: vehicles, ambulances, RV, boats,traffic lights, etc.
3. Office equipment: computers, printers, scanners, digital cameras, etc.
4. Household electrical equipment: electric fans, light bulb ,Energy-saving lamp, hair dryer, etc.

Unavailable For:
Most sensitive load such as ivacuum cleaners, air conditioning, lighting,microwave, refrigerators,saws, drills.

Product features:
·Modified sine wave output.
·Built-in 3-stages battery charger,allow to run loads while charging.
·Automatically Switch with a Ultra-fast switching time.
·Soft-start technology.
·High efficiency-converts the battery’s available power
·100% sufficient power.
·Aluminum shell with good heat dissipation and strong shock resistance.
·Optional Crocodile clip and cigar lighters , easy to connect batteries or vehicles’ batteries.
·USB charging port: 5V ,ideally qualified for powering your phone,laptop,etc.
·LED indicators for power and protections.
·Switch-mode design, easy to use.
·Intelligent fan for cooling,long use life.
·OEM and ODM are available, shell color can be customized.
·Optional remote control and LED display for 500W - 3000W inverter/charger.
Protection Functions:
3-Stages charging protection
Over load protection
Over temperature protection
Over voltage protection
Low voltage protection
Short circuit protection
Revers polarity protection

Technical parameter:
Model JYMU-500-1 JYMU-500-1 JYMU-500-2 JYMU-500-2
Rated power 500W
Peak power 1000W
Input voltage DC12V DC24V DC12V DC24V
Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
Unload current less than 0.7A 0.4A 0.7A 0.4A
Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform Modified Sine Wave
USB port 5V 1A
Max.efficiency 90%
Input current 10A
Input voltage range 10-15.5V 20-31V 10-15.5V 20-31V
Low voltage alarm 10.5±0.5V 21±0.5V 10.5±0.5V 21±0.5V
Low voltage protection 10±0.5V 20±0.5V 10±0.5V 20±0.5V
Over voltage protection 15.5±0.5V 31±0.5V 15.5±0.5V 31±0.5V
Low voltage recover 12.3±0.5V 24±0.5V 12.3±0.5V 24±0.5V
Over voltage recover 14.8V±0.5V 29.5V±0.5V 14.8V±0.5V 29.5V±0.5V
Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
Output Current 15A 10A 15A 10A
Bulk charge 15A 10A 15A 10A
Absorption 14.6VDC 28.8VDC 14.6VDC 28.8VDC
Float Charging Voltage 13.8VDC 27.6VDC 13.8VDC 27.6VDC
AC Input voltage range 190~260VAC 90-135VAC 190~260VAC 90-135VAC
Working temperature -10°- +50°
Storage temperature -30°- +70°
Dimension(mm) 305x180x78mm
Packing(mm) 360x225x100mm
Net./gross weight(g) 2820/3255g
QTY/Ctn 8 pcs
Meas./Ctn(mm) 465x380x440mm
Gross weight/Ctn(g) 26040g
Warranty 1 years
Configuration Standard
Cooling method Intelligent air cooling
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
