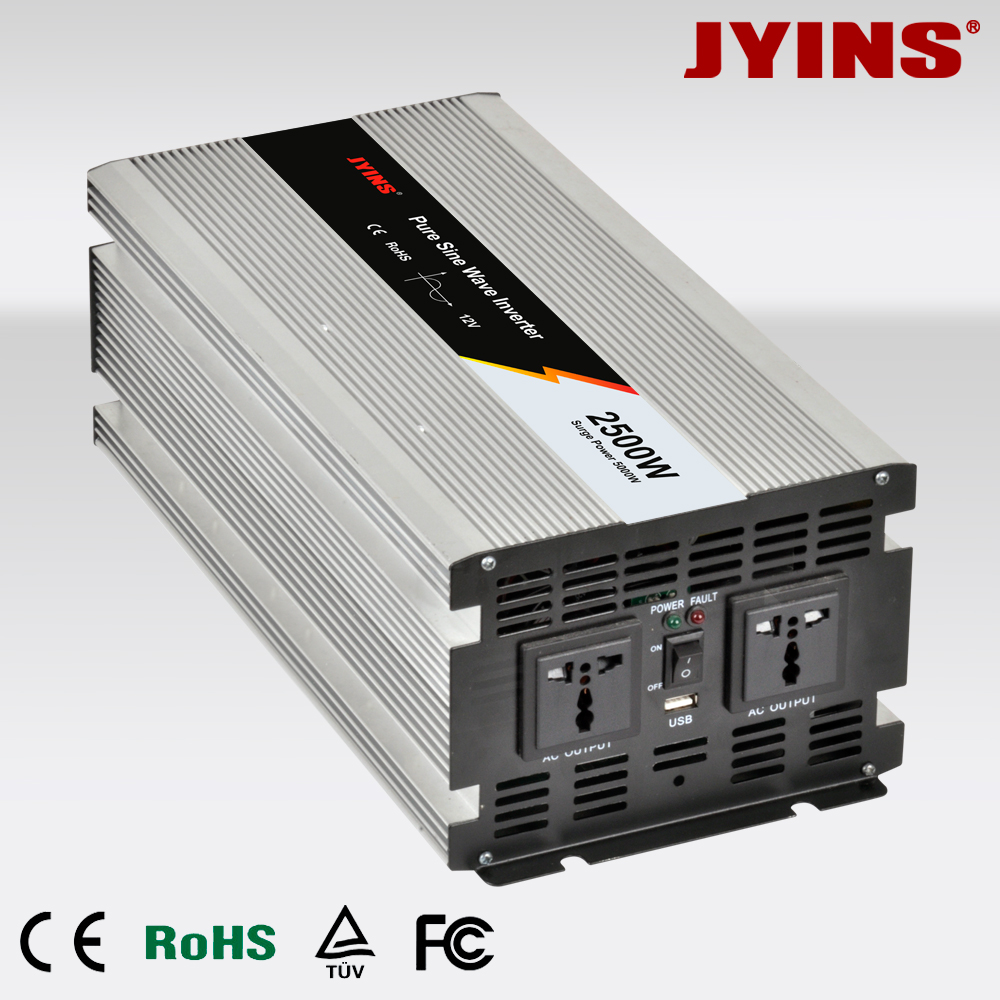

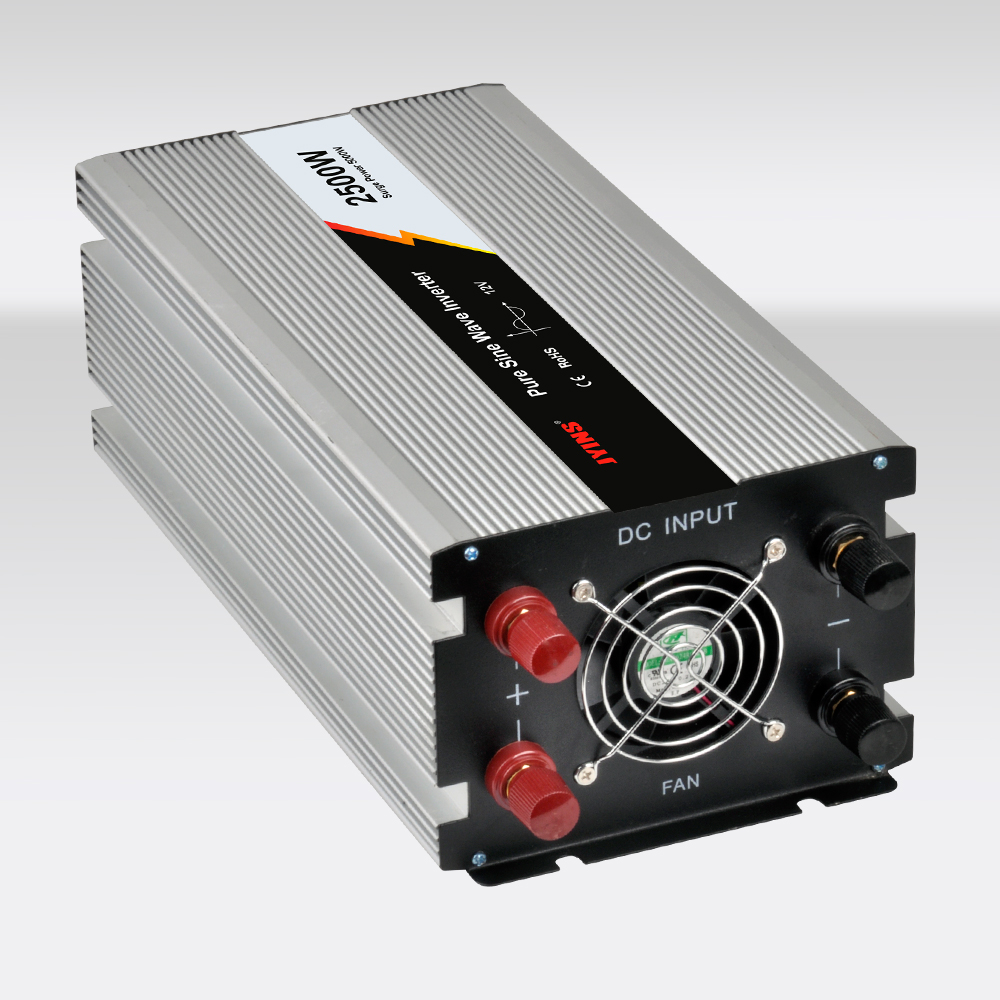

JYP-2500W-B 12V 24V 48V Dc Ac 110V 220V Solar Power Inverter

300W-6000W Pure sine wave Inverter

PDF File:
Product description:

2500 watt off grid single phase solar power inverter.

JYP series inverter is JYINS pure sine wave power inverter, fullly contain 300W-6000W. It can convert 12V/24V/48V DCfrom dedicated batteries or DC outlet in vehicles or boats into 100V/110V/120V/220V/230V/240V AC power.

It can provide clean, stable and high quality AC power,ideally qualified for powering all kinds of electrical appliances including sensitive electronics(Such as Air Conditioner,refrigerator etc.) and resistive electronics(Such as Bulbs,TV,Fans and etc.) .
Application For:
1. Industrial equipment: solar energy system, solar street light system, etc.
2. Travel set equipment: vehicles, ambulances, RV, boats,traffic lights, etc.
3. Office equipment: computers, printers, scanners, digital cameras, etc.
4. Household electrical equipment: electric fans, vacuum cleaners, air conditioning, lighting,microwave, refrigerators etc.
5. Power tools: Pumps,Saws, drills, punching machines, air compressors, etc.

Product features:
·Pure sine wave output (THD<3%)
·Soft-start technology.
·High efficiency-converts the battery’s available power
·100% sufficient power.
·Aluminum shell with good heat dissipation and strong shock resistance.
·Optional Crocodile clip and cigar lighters,easy to connect batteries or vehicles’ batteries.
·USB charging port: 5V ,ideally qualified for powering your phone,laptop,etc.
·LED indicators for power and protections.
·Switch-mode design, easy to use.
·Intelligent fan for cooling,long use life.
·OEM and ODM are available, shell color can be customized.
·Optional remote control and LED display for 800W-6000W inverters.
Protection Functions:
Over load protection
Over temperature protection
Over voltage protection
Low voltage protection
Short circuit protection
Revers polarity protection
2500W Power Inverter Technical parameter:
Model JYP-2.5K-1 JYP-2.5K-1 JYP-2.5K-1 JYP-2.5K-2 JYP-2.5K-2 JYP-2.5K-2
Rated power 2500W
Peak power 5000W
Input voltage DC12V DC24V DC48V DC12V DC24V DC48V
Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
Unload current less than 1.3A 0.8A 0.6A 1.3A 0.8A 0.6A
Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform Pure Sine Wave
Waveform distortion THD<3%(Linear load)
USB port 5V 1A
Max.efficiency 90%
Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
Low voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
Low voltage protection 10±0.5V 20±0.5V 40±15V 10±0.5V 20±0.5V 40±15V
Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
Low voltage recover 13±0.5V 24±0.5V 48±1V 13±0.5V 24±0.5V 48±1V
Over voltage recover 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V
Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
Working temperature -10°- +50°
Storage temperature -30°- +70°
Dimension(mm) 396x180x128mm
Packing(mm) 475x245x195mm
Net./gross weight(g) 5580/6710g
QTY/Ctn 4 Pcs
Meas./Ctn(mm) 540x545x445mm
Gross weight/Ctn(g) 26840g
Warranty 1 years
Configuration Standard
Cooling method Intelligent air cooling
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
