Product description:

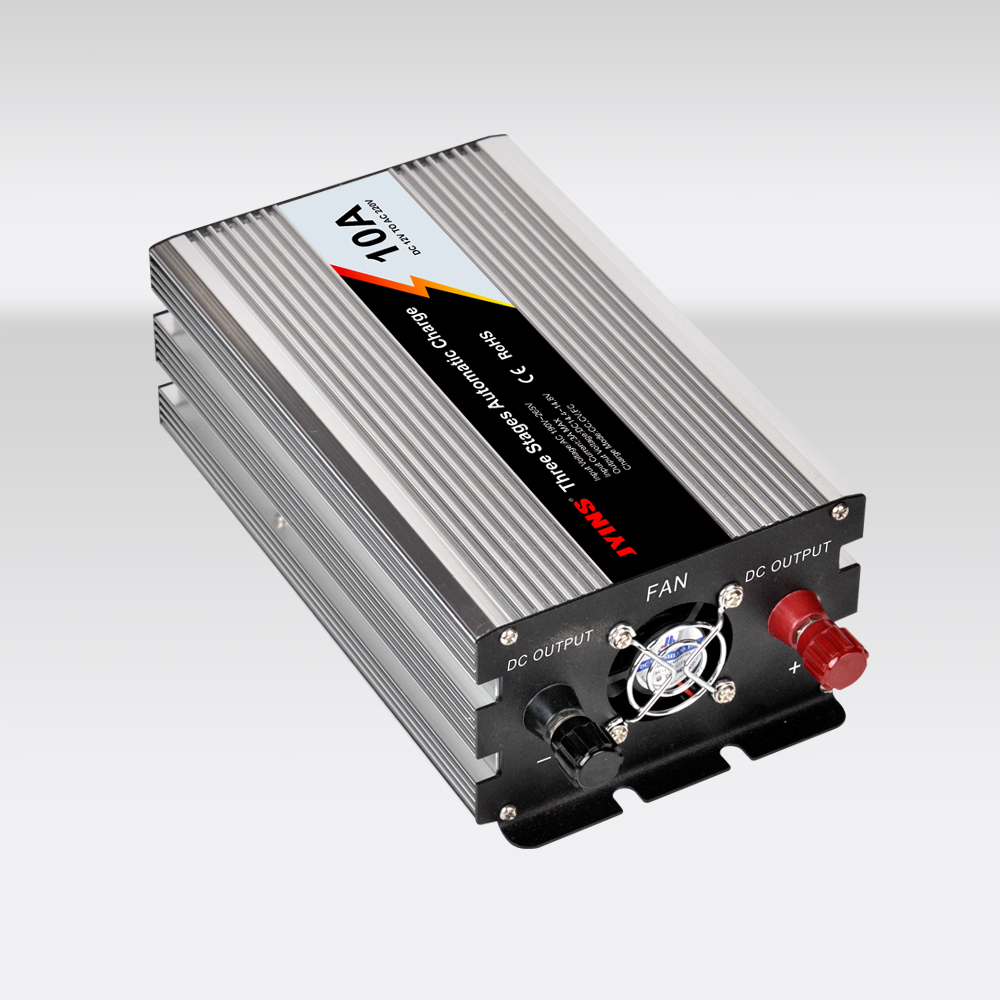

JYINS Battery Charger is a fully automatic charger. Automatic 3 stage charge , LED indicates different charge status. We produced 12V, 24V and 12/24V auto.switch series recently. An external temperature sensor is optional, if it is installed, it will adjust the bulk and float charge voltage according to the temperature of the battery type.
Product characteristics:
·Automatic 3 stage charge : constant current, constant voltage, floating charge
·Automatic Temperature Compensation
·LED indicators for different charge status
·Fully protection : short circuit , over charge , over heat,reverse polarity protection
·Strong & stylish : designed by reliable high frequency technology with smaller size
·Compact & Reliable: designed by stylish alliminum case with better cooling efficiency
·ON/OFF switch control the charger by hand.
Technical parameter:
Model JYCH1210 JYCH2405
Output Voltage DC12V DC24V
Max.Current 10A 5A
Output Current 10A 5A
Bulk charge 10A 5A
Absorption 14.6VDC 28.8VDC
Float Charging Voltage 13.8VDC 27.6VDC
AC Input voltage range 190~260VAC 90-135VAC
Protection Function AC Fuse&Output short-circuit，Overcharge，thermal shutdown
Dimension 220×112×65mm（L×W×H）
N.W./unit 1020g
QTY/Ctn 16Pcs
Packing Gift box
Meas./Ctn 50×40.5×42.5cm
Warranty 12Months
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
