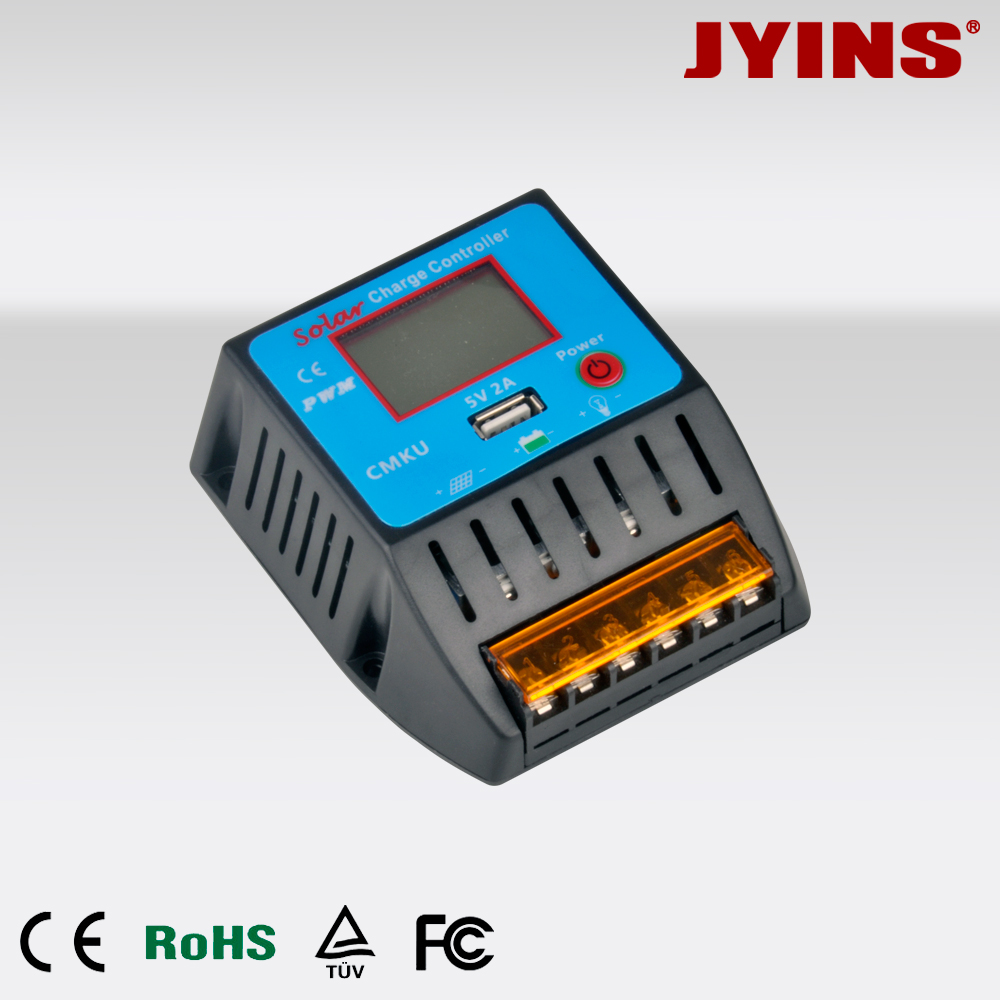

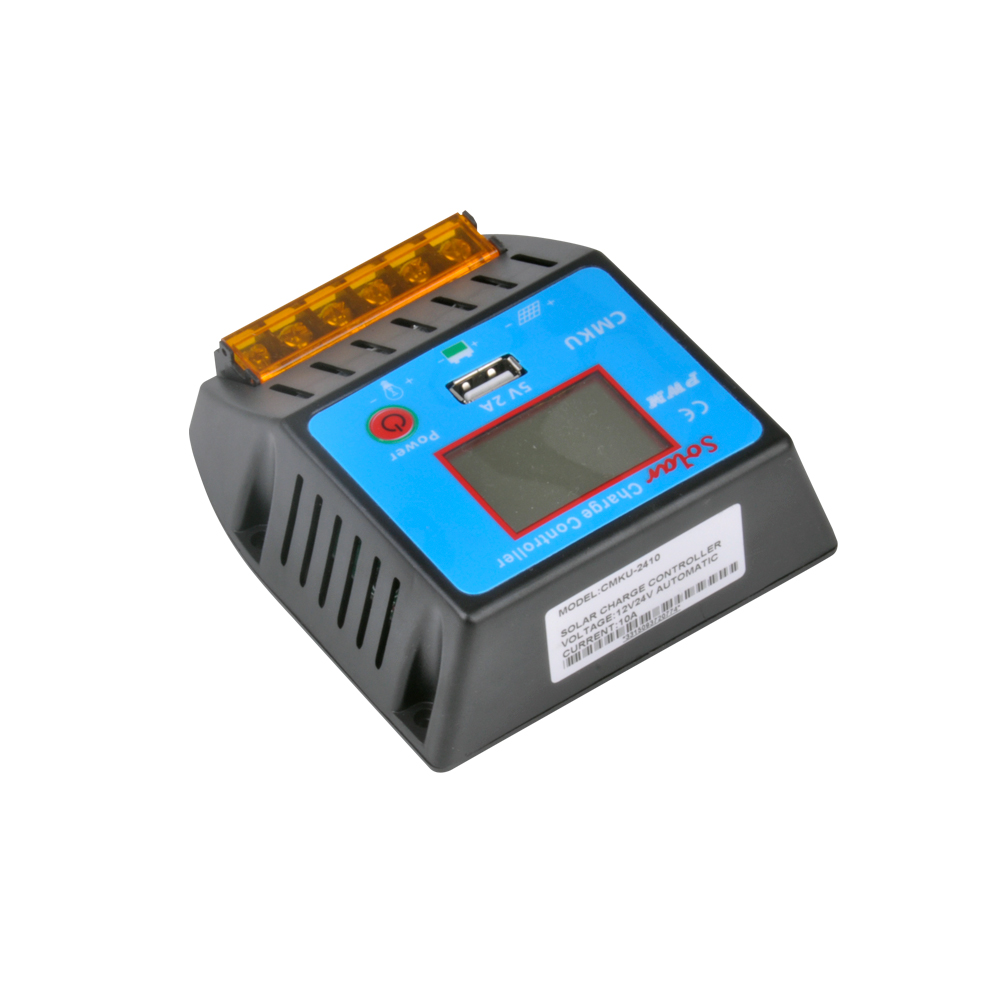

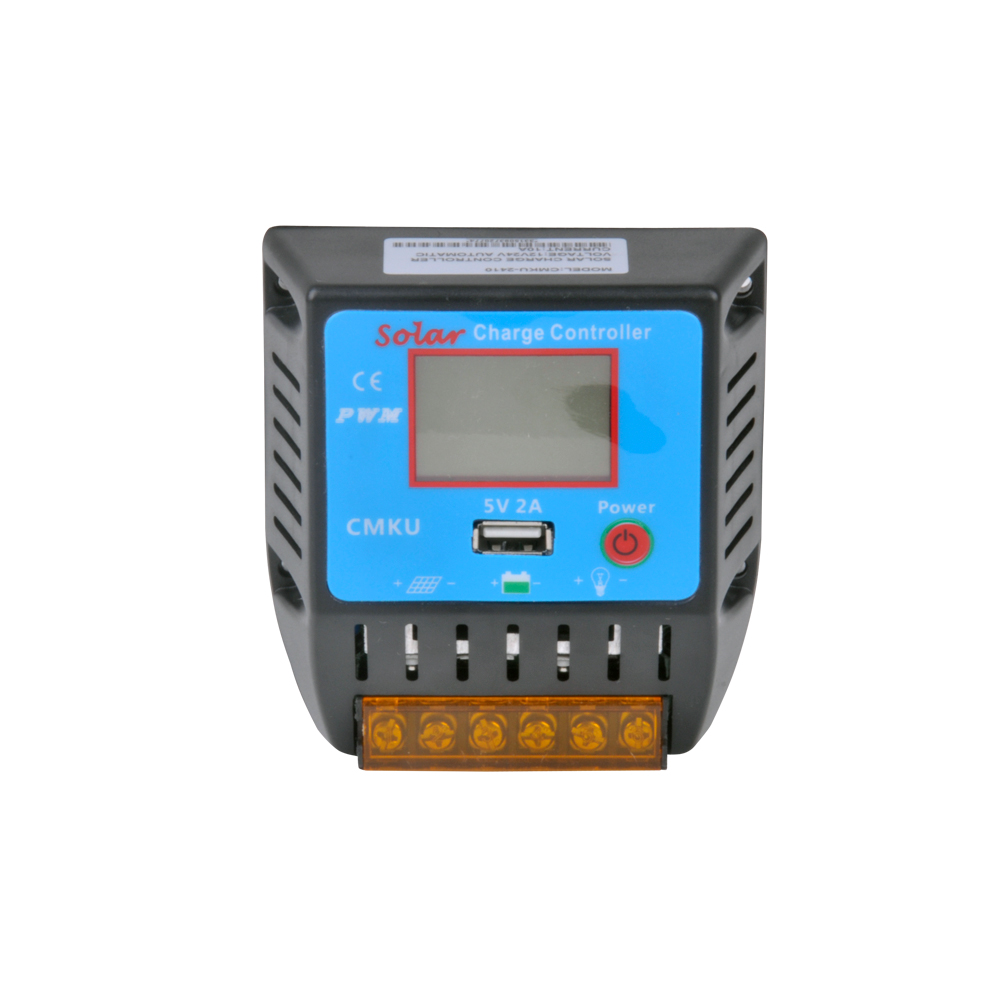

CMKU2410

LCD solar charge controller

PDF File: CMKU2410 controller
Product Overview
1. Use single-chip microcomputer control which makes the controller has the advantages of intelligent, strong adaptability, reliable function.
2. Use PWM charge mode, which can improve system efficiency and prolong the life span of the battery.
3. Clear charge state, discharge state and battery power display.
4. Adopts the modified shell which accords with air flow, has better cooling effect (compare with the old version).
5. Optimize the assembly design, the structure more stable (new shell uses 4 screws, old version use 2 screws).
Protection
1. Over-load protection
2. Short circuit protection
3. Lightning protection
4. Under-voltage protection
5. Over-charging protection
6. Reverse polarity protection
Specification

Model

CMP

-2410

CMP

-2420

CMU

-2410

CMU

-2420

CMD

-2410

CMD

-2420

CMK

-2410

CMK

-2420

CMKU

-2410

CMKU

-2420

Rated charge current

10A

20A

10A

20A

10A

20A

10A

20A

10A

20A

Rated discharge current

10A

20A

10A

20A

10A

20A

10A

20A

10A

20A

Rated voltage

12V/24V

Over discharge voltage

10.5V/21.0V

Discharge recovery voltage

12.2V/24.4V

Voltage of stop charging

14.7V/29.4V

LED voltmeter

-

-

-

-

√

√

-

-

-

-

LCD display

-

-

-

-

-

-

√

√

√

√

Output switch

-

-

-

-

-

-

√

√

√

√

USB output voltage

-

-

5V

5V

-

-

-

-

5V

5V

USB output current

-

-

2A

2A

-

-

-

-

2A

2A

Working temperature

-20～+60℃

Temperature compensation

-3mV/℃/cell

Dimension of controller

103×95×38(mm)（L×W×H）

Packing dimension

115×102×55(mm)（L×W×H）

Weight

160g～180g
