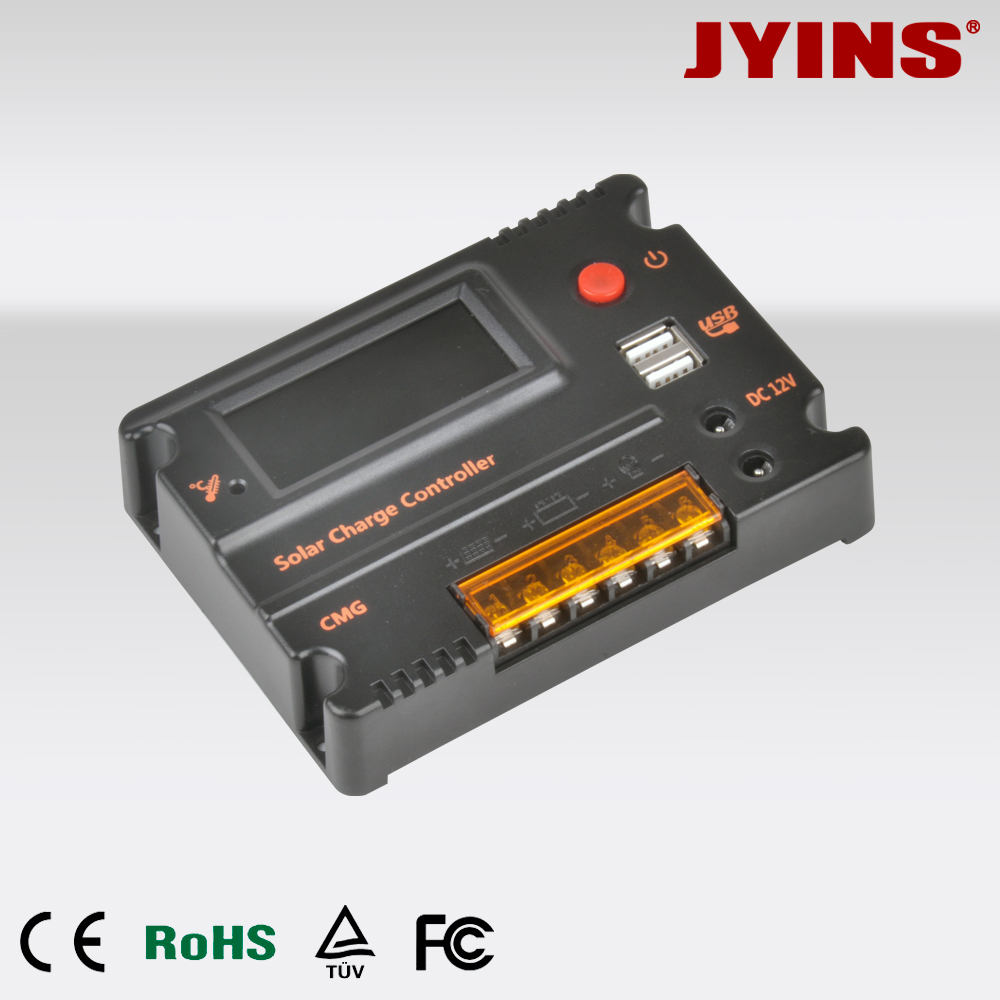

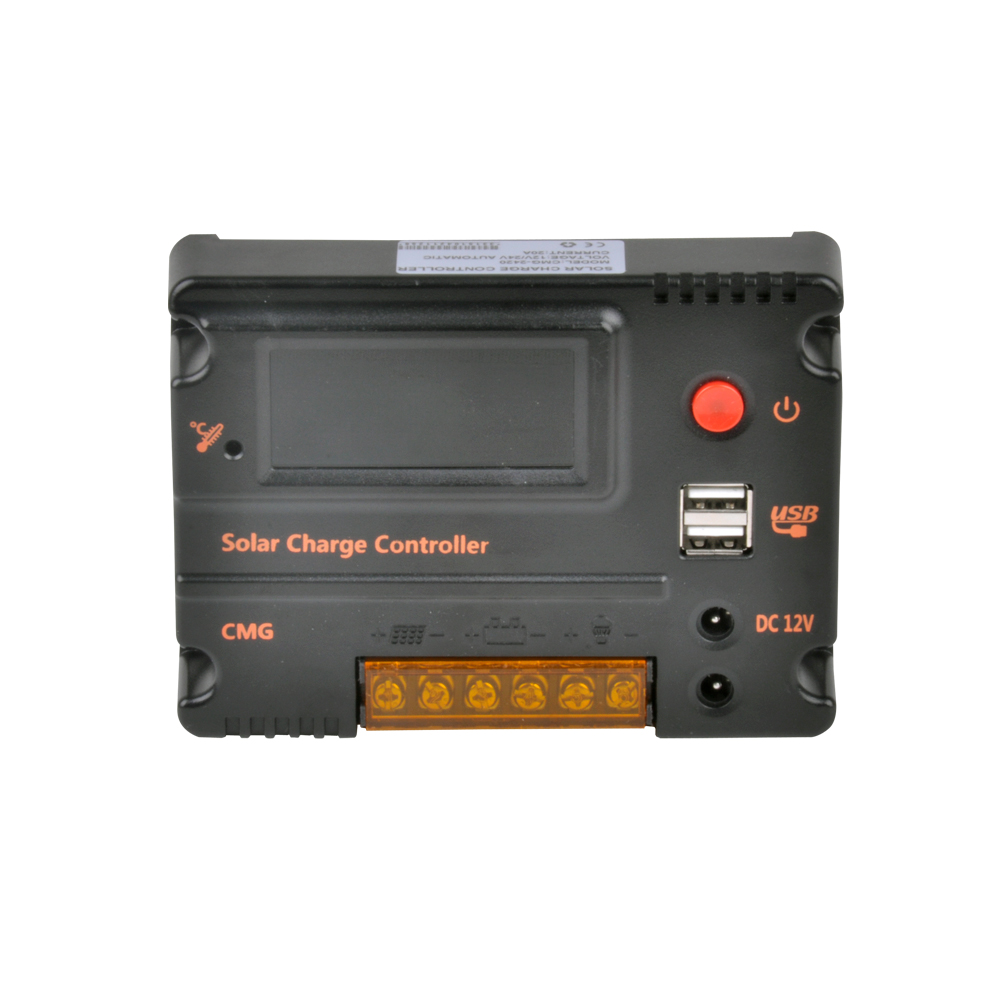

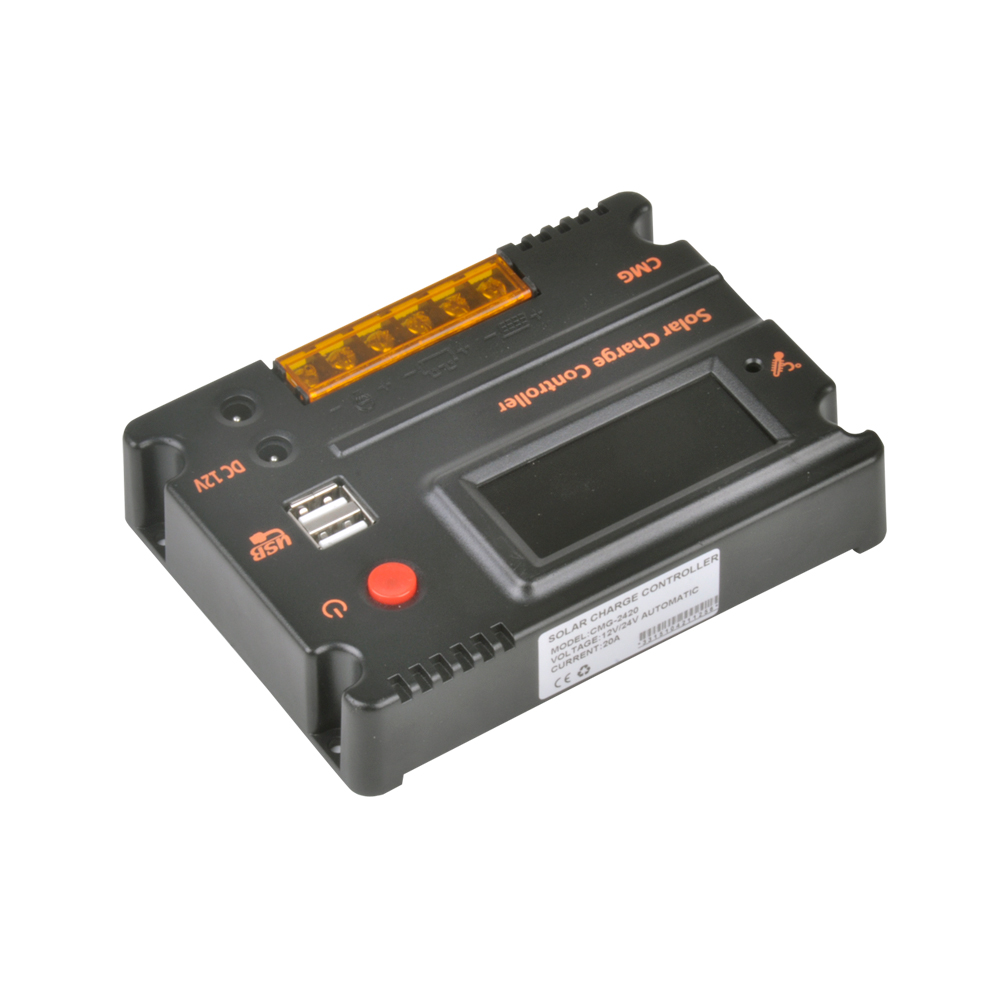

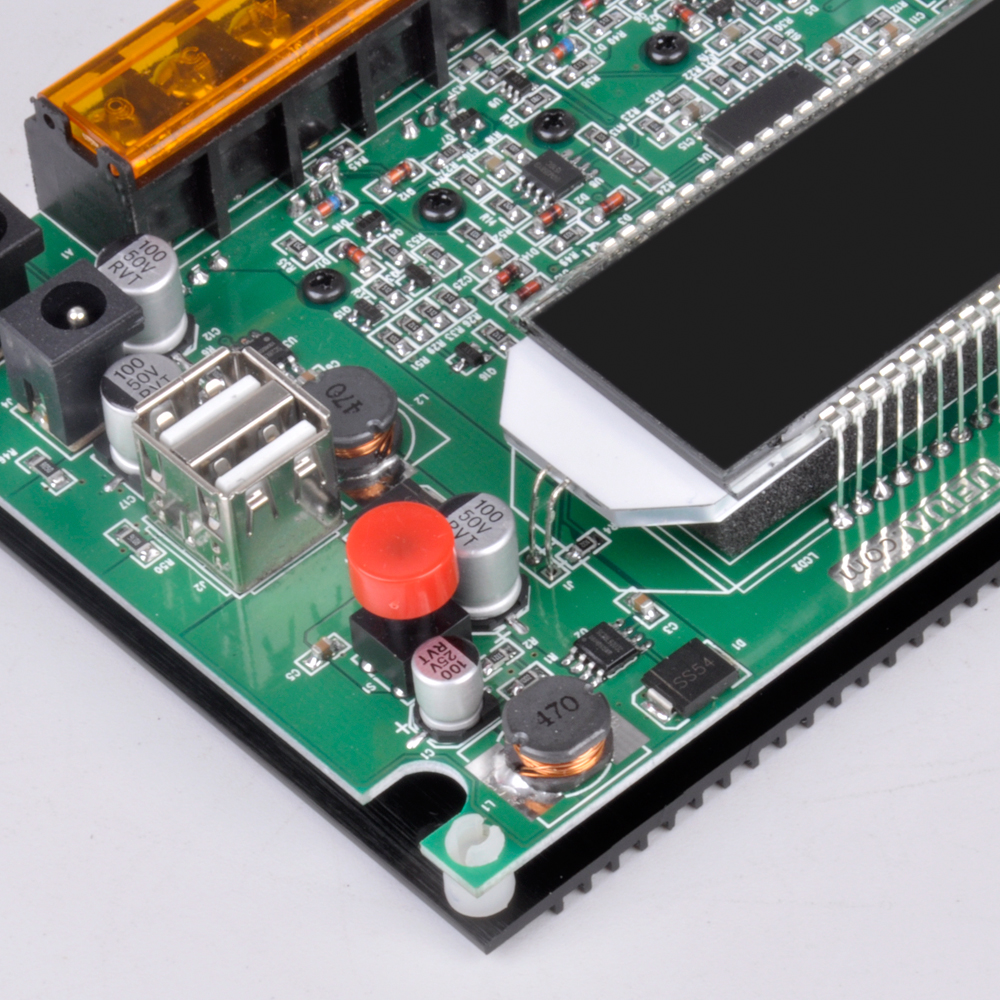

Product overview

1. With LCD to display all parameters, the LCD has rich contents, the users can intuitively know the working condition of the controller.
2. With built-in energy-saving backlight LCD, display better and more power-efficient.
3. With SMPS DC12V and USB 5V stabilized voltage output, available for DC lamp and phone charging.
4. With output switch, intelligent control, easy to operate;
5. The system power adopts switching mode power supply which can reduce the quiescent current.
5. With separated temperature detected circuit, with high precision temperature compensation function.
7. With exposed terminals, the wiring more convenient, what’s more, the CMF series with metal shell.
8. Use single-chip microcomputer control which makes the controller has the advantages of intelligent, strong adaptability, reliable function.
9. Use PWM upgrade control scheme to WPC mode, which can improve system efficiency and prolong the life span of the battery.

Installation Instructions

Open the top cover of controller and connect the wire with terminals as the diagram on the top cover of it.

1.Connect the “+”, “-” Poles of the battery to the corresponding ports of controller (the third and the fourth one from left).

2.Connect the “+”, “-” poles of the solar panel to the corresponding ports of controller (the first and the second one from left).

3. Connect the “+”, “-” poles of the load to the corresponding ports of controller (the fifth and the sixth one from left).
Note: If there is connection error, it may damage your controller.

Technical Data

Model	CMG-2405 CMF-2405	CMG-2410 CMF-2410	CMG-2415 CMF-2415	CMG-2420 CMF-2420
Rated charge current	5A	10A	15A	20A
Rated discharge current	5A	10A	15A	20A
USB output voltage	5V
Total USB output current	3A
DC output voltage	12V (only CMG)
Total DC output current	2A (only CMG)
Over load, short circuit protection	1.5 times by rated current
Short circuit recovery time	10s
Open circuit voltage of solar panel	40V
No load loss	0.05W
Over voltage protection	15V; ×2/24V
Float charge voltage	14V; ×2/24V
Discharge recovery voltage	12V; ×2/24V
Over discharge voltage	10.5V; ×2/24V
Control mode	software intelligent control
Working temperature	-35℃～+55℃

Model	CMG	CMF
Dimension（L×W×H）	13510030(mm)	201.610837.1(mm)
Weight	275g	560g
