CM5048Z-JYINS Electric

CM5048Z

Add to Inquiry basket View My Inquiry Basket SEND INQUIRY

Product Introduction

The CM/CY series charge controllers is the highlight in the range.

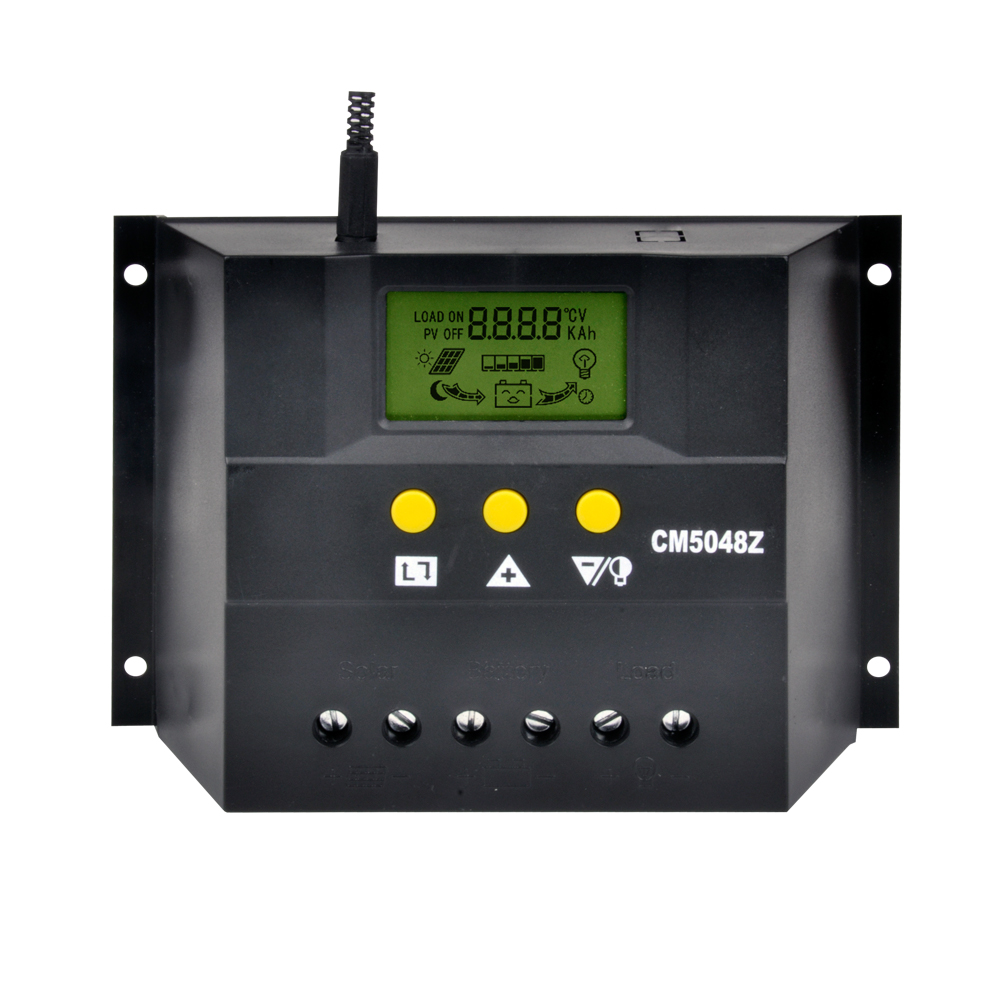

Use of the latest charging technologies combined with state of charge determination enable optimal battery maintenance and module power monitoring for up to 2880 Wp of connected power. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display.

Quality assurance

1. Quality assurance should be carried out according to the following rules:
● The product is guaranteed of replacement, returning and repairing within 7 days after Sale.
● The product is guaranteed of replacement and repairing within 1 month after sale.
● The product is guaranteed of repairing within 12 months after sale.
2. If it is not possible to identify the using date of the controller, we would refer to the ex-work date, and prescribe 18 months as the warranty period. We need to charge beyond the warranty period. The controller can be repaired for life no matter when and where you use it.

3. If the controller is damaged by the following causes, we need to charge even if it is in the guarantee period:
● Do not operate according to the user's manual.
● Use the controller under the condition which is beyond the using standard and technical requirements.
● Repair by yourself or reform by yourself.
● The inappropriate environmental condition which can cause the breakdown and aging of the apparatus.
● Improper carrying or storage.
● Regarding to the service of replacement, returning and repairing, you need to retreat the product to our company, and we decide whether to replace or repair after we make clear who should be responsible.
4.We will not note if there is any change of this product.

Technical datasheet

Model	CM3024 CY30A-24	CM5024 CY50A-24		CM3048 CY30A-48	CM5048 CY50A-48	CM6024 CY60A-24		CM6048 CY60A-48
Rated current	30A	50A		30A	50A	60A		60A
Rated voltage	12/24V	12/24V		48V	48V	12/24V		48V
Max solar voltage	<50V	<50V		<100V	<100V	<50V		<100V
Low voltage disconnect	10.7/21.4V			42.8V			10.7/21.4V		42.8V
Low voltage reconnect	12.6/25.2V			50.4V			12.6/25.2V		50.4V
Float charge	13.7/27.4V			54.8V			13.7/27.4V		54.8V
Standby loss	<30mA
Charging mode	PWM
Temp compensation	-4mV/Cell/℃
Opearating condition	-20℃~+60℃
Size/Weight	CM3024 CM3048		90x188x48 360g		CY30A-24 CY30A-48		11017055 300g
	CM5024 CM6024 CM5048 CM6048		130x188x62 590g		CY50A-24 CY50A-48 CY60A-24 CY60A-48		130x188x62 570g
