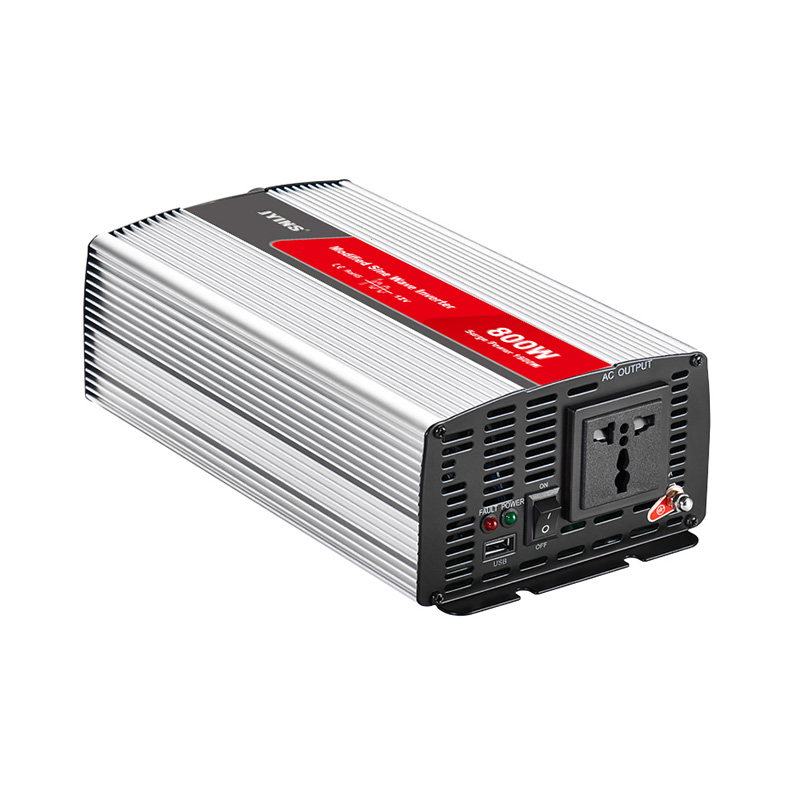

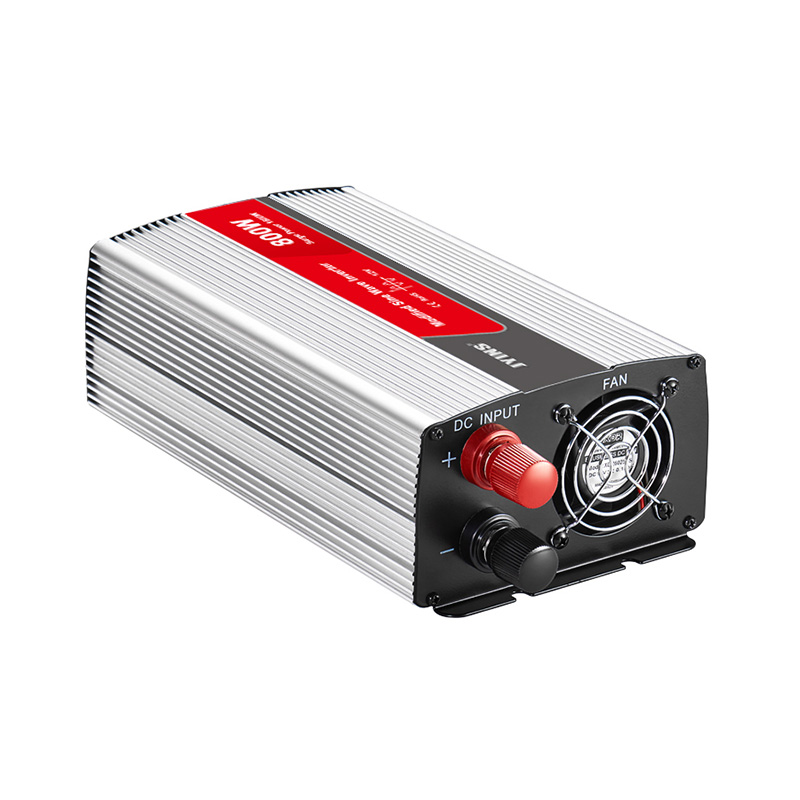

JYM series inverter is modified sine wave inverter, JYM series fullly contain 75W-6000W, It can convert 12V/24V/48V DC from dedicated batteries or DC outlet in vehicles or boats
into 110V/120V/220V AC power. Modifeid sine wave inverter is a reliable and cost-effective choice, more economical than pure sine wave inverter.It have the advantage to run all
resistive load.
1. Industrial equipment: solar energy system, solar street light system, etc.
2. Travel set equipment: vehicles, ambulances, RV, boats,traffic lights, etc.
3. Office equipment: computers, printers, scanners, digital cameras, etc.
4. Household electrical equipment: electric fans, light bulb ,Energy-saving lamp, hair dryer, etc.
Unavailable For:
Most sensitive load such as ivacuum cleaners, air conditioning, LED lighting,microwave, refrigerators,saws, drills.
·Modified sine wave output.
·Soft-start technology.
·High efficiency-converts the battery’s available power
·100% sufficient power.
·Aluminum shell with good heat dissipation and strong shock resistance.
·Optional Crocodile clip and cigar lighters , easy to connect batteries.
·USB charging port: 5V , ideally qualified for powering your phone,laptop,etc.
·LED indicators for power and protections.
·Switch-mode design, easy to use.
·Intelligent fan for cooling,long use life.
·OEM and ODM are available, Shell color can be customized.
·Optional remote control and LED display for 800W-6000W inverters.
Over load protection
Over temperature protection
Over voltage protection
Low voltage protection
Short circuit protection
Revers polarity protection
|
Model
|
JYM-800-1
|
JYM-800-1
|
JYM-800-1
|
JYM-800-2
|
JYM-800-2
|
JYM-800-2
|
|
Rated power
|
800W
|
|
Peak power
|
1600W
|
|
Input voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|
Output voltage
|
100VAC or 110VAC or 120VAC±5%
|
220VAC or 230VAC or 240VAC±5%
|
|
Unload current less than
|
0.8A
|
0.5A
|
0.2A
|
0.8A
|
0.5A
|
0.2A
|
|
Output frequency
|
50Hz±0.5Hz or 60Hz±0.5Hz
|
|
Output waveform
|
Modified Sine Wave
|
|
USB port
|
5V 1A
|
|
Max.efficiency
|
90%
|
|
Input voltage range
|
10-15.5V
|
20-31V
|
40-61V
|
10-15.5V
|
20-31V
|
40-61V
|
|
Low voltage alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
|
Low voltage protection
|
10±0.5V
|
20±0.5V
|
40±15V
|
10±0.5V
|
20±0.5V
|
40±15V
|
|
Over voltage protection
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
|
Low voltage recover
|
12.3±0.5V
|
24±0.5V
|
48±1V
|
12.3±0.5V
|
24±0.5V
|
48±1V
|
|
Over voltage recover
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
|
Protection function
|
Low voltage
|
Alarm at first, voltage continously reduce. LED Red light on & shut sown.
|
|
Over voltage
|
LED Red light on, shut down
|
|
Over load
|
LED Red light on, shut down
|
|
Over temperature
|
Alarm at first, tempurature continously rise.LED Red light on & shut sown
|
|
Short circuit
|
LED Red light on
|
|
Input reverse polarity
|
Fuse burn-out
|
|
Working temperature
|
-10°- +50°
|
|
Storage temperature
|
-30°- +70°
|
|
Dimension(mm)
|
264x180x78mm
|
|
Packing(mm)
|
320x240x105mm
|
|
Net./gross weight(g)
|
2300/2850g
|
|
QTY/Ctn
|
12Pcs
|
|
Meas./Ctn(mm)
|
630x535x335mm
|
|
Gross weight/Ctn(g)
|
34200g
|
|
Warranty
|
1 years
|
|
Configuration
|
Standard
|
|
Cooling method
|
Intelligent air cooling
|
|
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
|
