JYP-600W-D-JYINS Electric

JYP-600W-D

Add to Inquiry basket View My Inquiry Basket SEND INQUIRY

PDF File:

Product description:

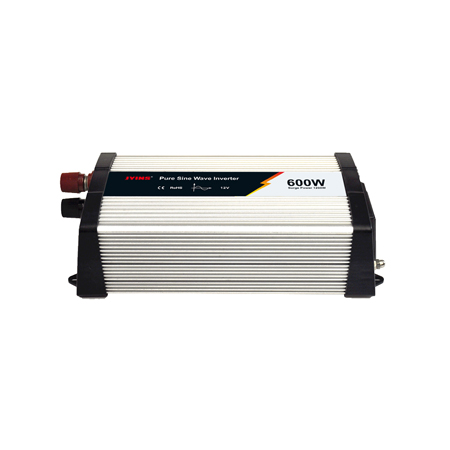

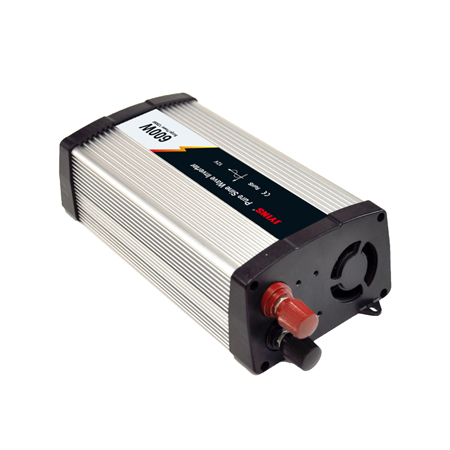

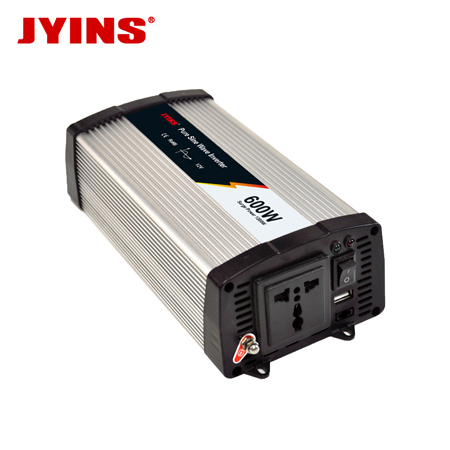

JYP series inverter is JYINS pure sine wave power inverter, fullly contain 300W-6000W. It can convert 12V/24V/48V DCfrom dedicated batteries or DC outlet in vehicles or boats into 100V/110V/120V/220V/230V/240V AC power.

It can provide clean, stable and high quality AC power,ideally qualified for powering all kinds of electrical appliances including sensitive electronics(Such as Air Conditioner,refrigerator etc.) and resistive electronics(Such as Bulbs,TV,Fans and etc.) .

Application For:

1. Industrial equipment: solar energy system, solar street light system, etc.
2. Travel set equipment: vehicles, ambulances, RV, boats,traffic lights, etc.
3. Office equipment: computers, printers, scanners, digital cameras, etc.
4. Household electrical equipment: electric fans, vacuum cleaners, air conditioning, lighting,microwave, refrigerators etc.
5. Power tools: Pumps,Saws, drills, punching machines, air compressors, etc.

Product features:

·Pure sine wave output (THD＜3%)
·Soft-start technology.
·High efficiency-converts the battery’s available power
·100% sufficient power.
·Aluminum shell with good heat dissipation and strong shock resistance.
·Optional Crocodile clip and cigar lighters,easy to connect batteries or vehicles’ batteries.
·USB charging port: 5V ,ideally qualified for powering your phone,laptop,etc.
·LED indicators for power and protections.
·Switch-mode design, easy to use.
·Intelligent fan for cooling,long use life.
·OEM and ODM are available, shell color can be customized.
·Optional remote control and LED display for 800W-6000W inverters.

Protection Functions:

Over load protection
Over temperature protection
Over voltage protection
Low voltage protection
Short circuit protection
Revers polarity protection

Technical parameter:

Model	JYP-600-1	JYP-600-1	JYP-600-1	JYP-600-2	JYP-600-2	JYP-600-2
Rated power	600W
Peak power	1200W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.6A	0.4A	0.3A	0.6A	0.4A	0.3A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD＜3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
