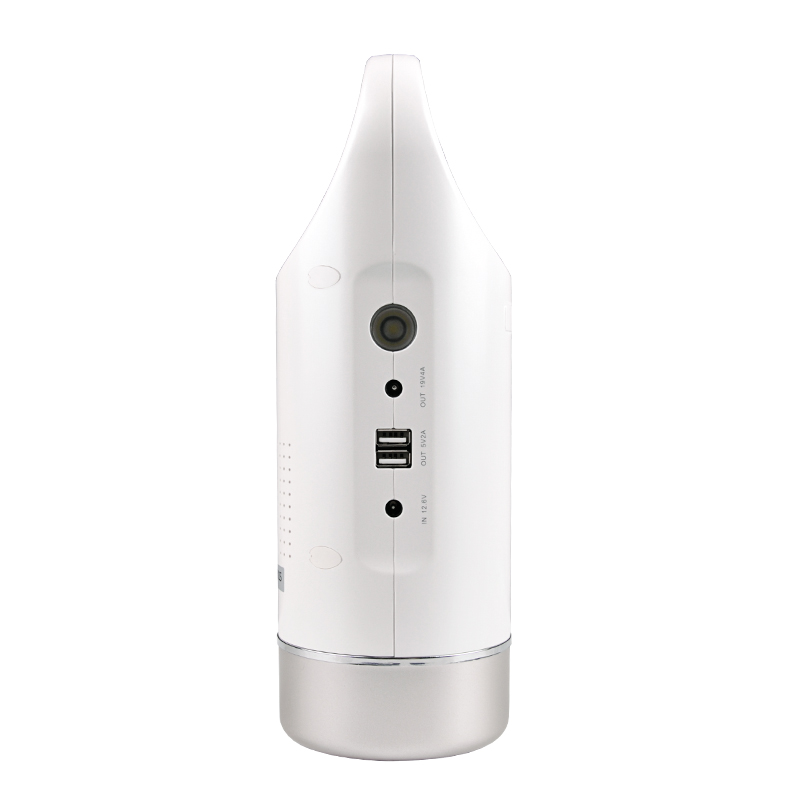

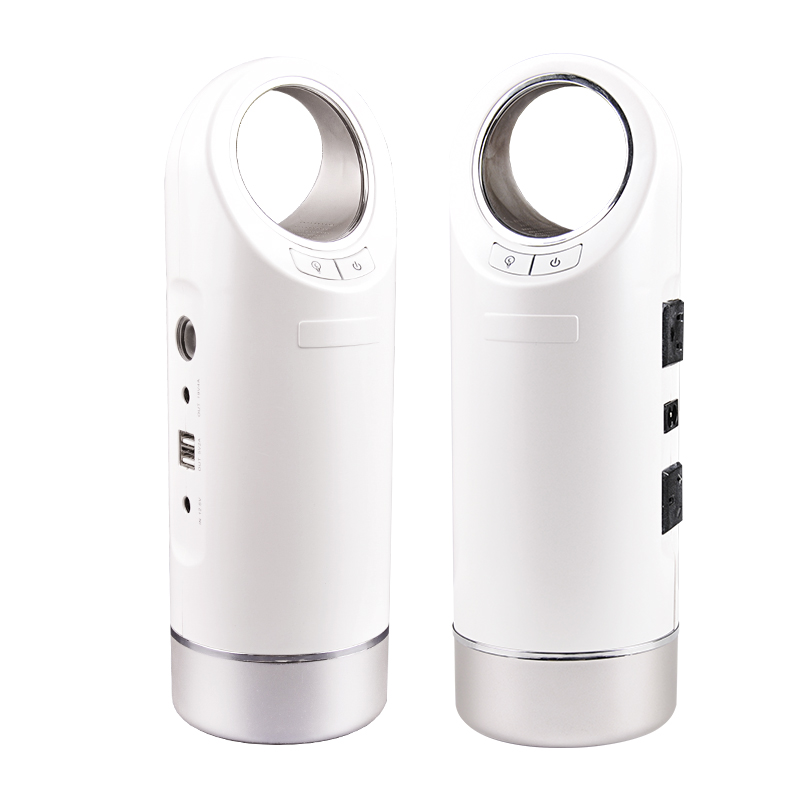

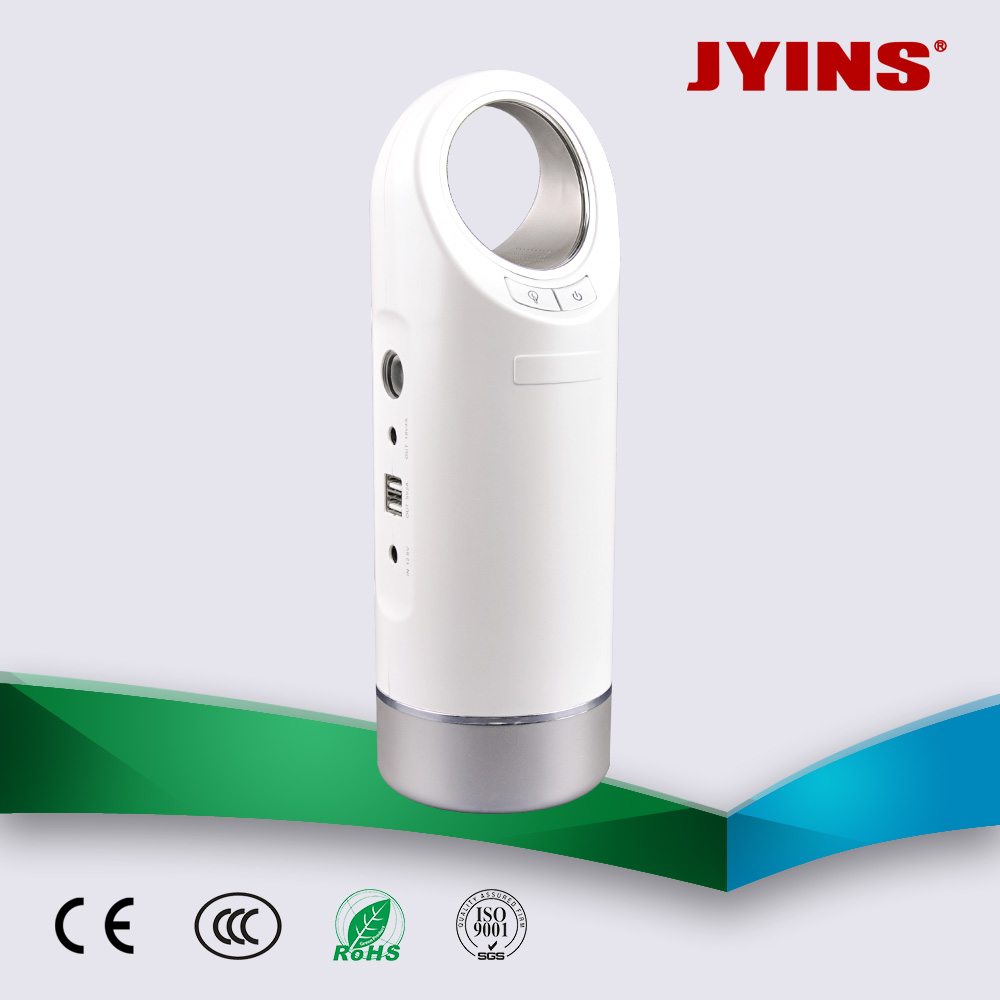

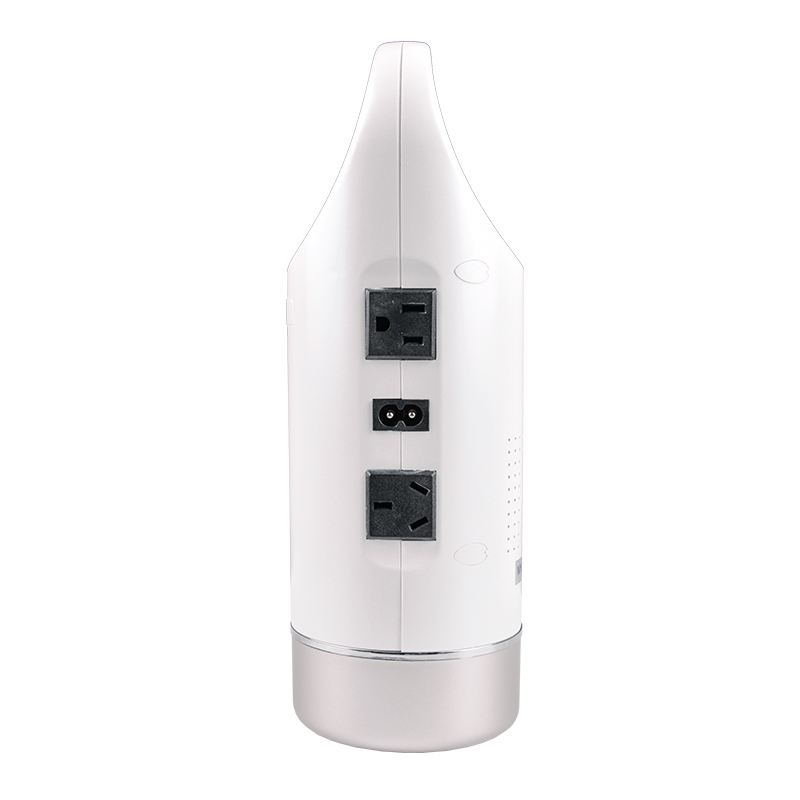

200W portable mini UPS with 12v 13ah lithium battery

Protable Mini UPS

PDF File:
Introduction

Portable UPS is a online uninterruptible power supply system with both AC & DC power supply device, it used safe lithium battery and inverter conversion technology,with a feature of light weight, high capacity and user friendly, which can provide you a convenient mobile power solutions,with the main features are:

220V / 50Hz pure sine wave AC output (110V / 60Hz);

12V / 20A DC output, 5V / 2A-USB dual port output;

On-line uninterruptible power supply (UPS);

LED emergency lighting;

battery power display;

Solar charging;

Portable UPS meet the needs of the vast majority of electrical appliances, such as mobile phones,digital camera,mobile hard disk,tablet computer, LED light, laptop, car starter, outdoor lighting, water pump,telecommunications, medical equipment, etc .;

It can also be used in the areas such as: finance, first aid, mining, exploration, military, science, media

Body, tourism, disaster relief, medical assistance .

.

Before using,please read the specifications carefully

Specification

Products Specification

Model

JYU500

JYU300

JYU-200

Battery Capacity

12V,42AH

12V,26AH

12V,13AH

Continuously output power

500W

300W

200W

Peak Power

1000W

600W

400W

Output Wave

Pure sine Wave

Pure sine Wave

Modified Sine Wave

DC Input

DC12.6-18V,20A

DC12.6-18V,20A

DC 12.6-18V, 4A

AC Input

AC80-260V, 7A

AC80-260V,4.5A

AC80-260V,1A

DC output

12V/20A

12V/20A

12V 4A,    19V 4A

USB output

5V/2A

LED torch light

2W

2W

2W

Protection Function

Over Voltage,Over Load,Over temprature,Low Voltage,Short Circut Protect

Switching time

Less than 5MS

Working Temprature

-20℃-60℃

Dimenssion

340*185*60MM

340*185*60MM

98*98*286MM

Net Weight

3.7KG

3.2KG

1.4KG

Warranty

1 Year
