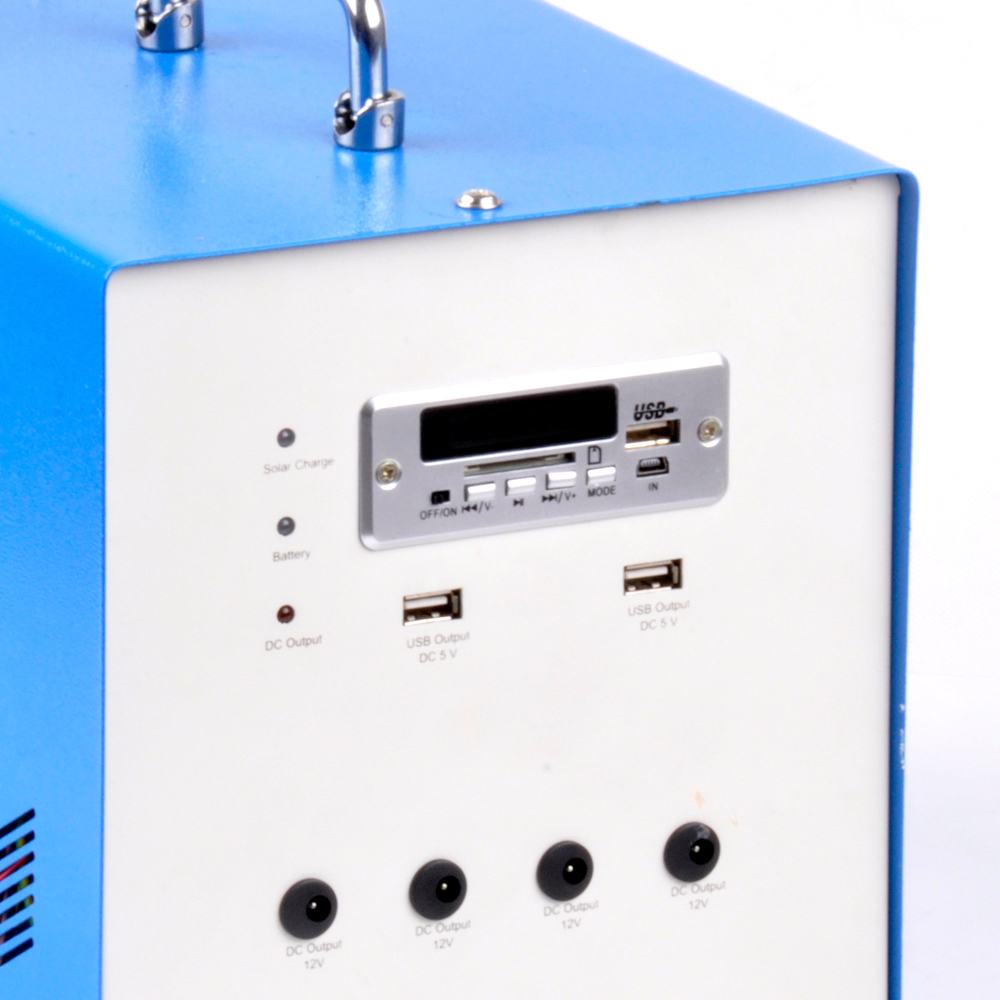

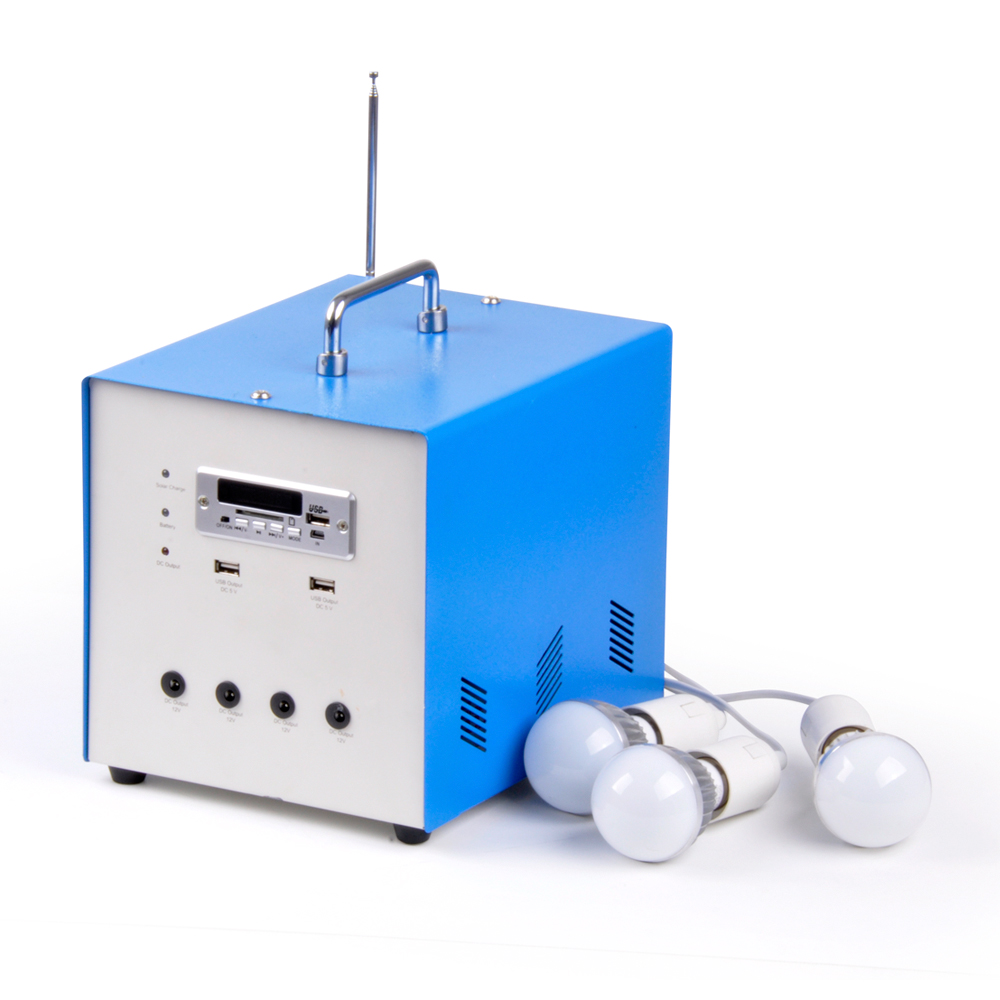

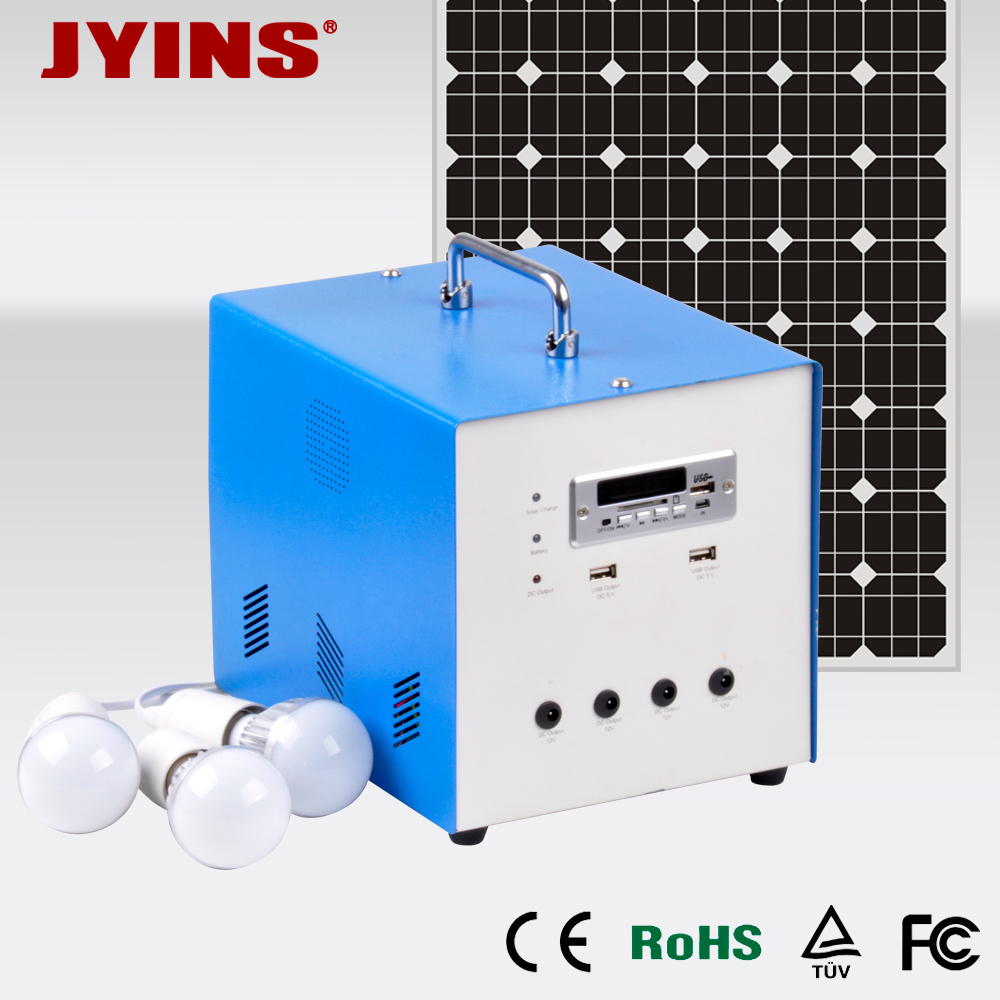

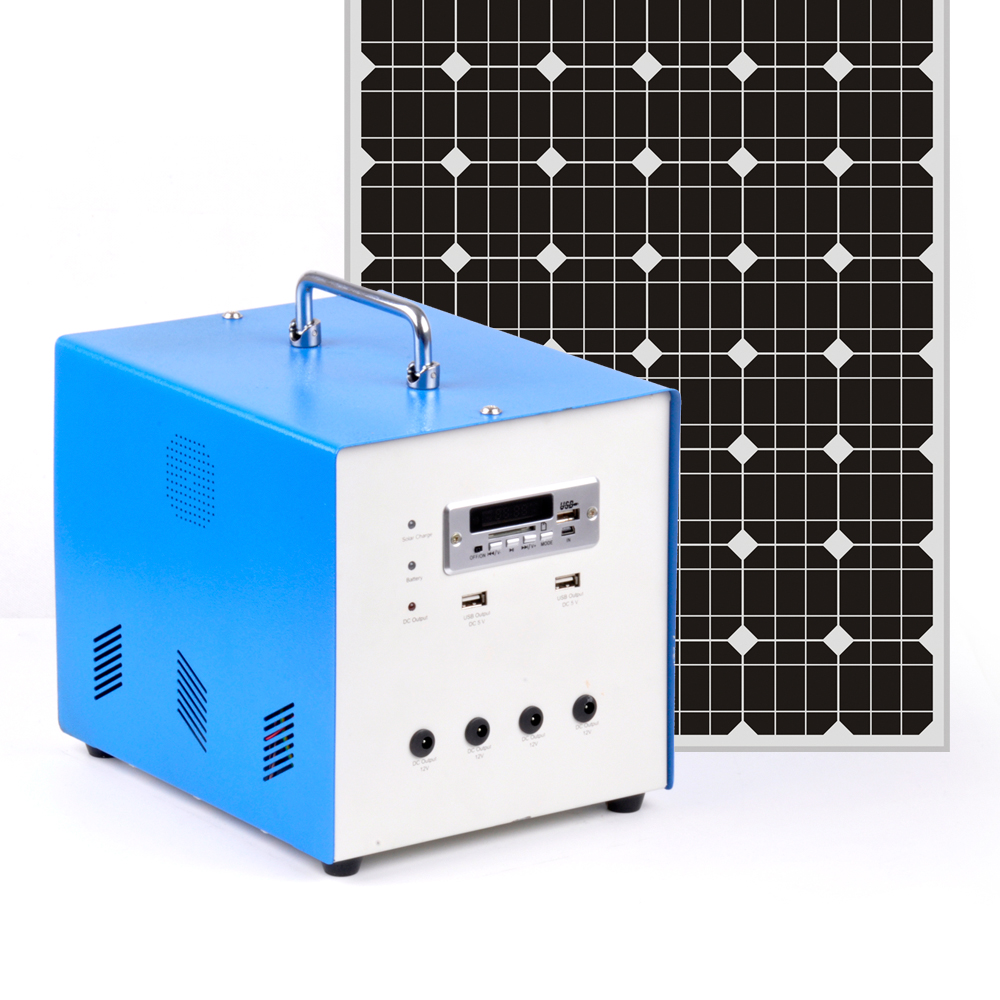

S205 Solar system

Print This Page

E-Mail To Us: info@jyins.com

Add to Inquiry basket View My Inquiry Basket SEND INQUIRY

PDF File:

PRODUCT FEATURES

Integrated design for charging DC 12V power supply, lighting device ,5V Bluetooth digital products.
High efficient PWM charging technology, intelligent management of battery's charging and discharging.
Compact dimension, low weight, easy to carry.
It can be charged both by solar energy and city electricity

SPECIFICATIONS

Item	JYPS205		JYPS205A
Solar Panel	18V/35W -50W (Mono/Poly)
Lead-acid Battery	12V/20AH*1Pcs Deep Cycle Free Maintenance
Adapter	No		18V1.5A
Controller	PWM 12V/3A
Output Voltage	DC12V3A, USB5V1A
City Electricity Switching Time	No

Charging Mode	PV Charging		PV/City Electricity Charging
Charging Time	7Hrs by 30W Solar Panel with Sufficient Sunlight,7Hrs by City Electricity

	4Hrs by 50W Solar Panel with Sufficient Sunlight,7Hrs by City Electricity

Operating Environment	0-45℃
System Case Size	270160220mm
Packing Size	370170250mm
Net Weight	7.4 KG
Standard Cable Spec.	5m DC Cable + DC Connector

Load Capacity

Appliance	Spec(W)	Qty(PCS)	Working Hour(h)	Power Consumption(W.h)
Mobile Phone	5	2	2	20
LED Bulb	2	3	5	30
Fan	10	1	4	40
TV	25	1	3	75
Total：				165

P₁PRODUCT FEATURES P₂SPECIFICATIONS P₃Load Capacity
