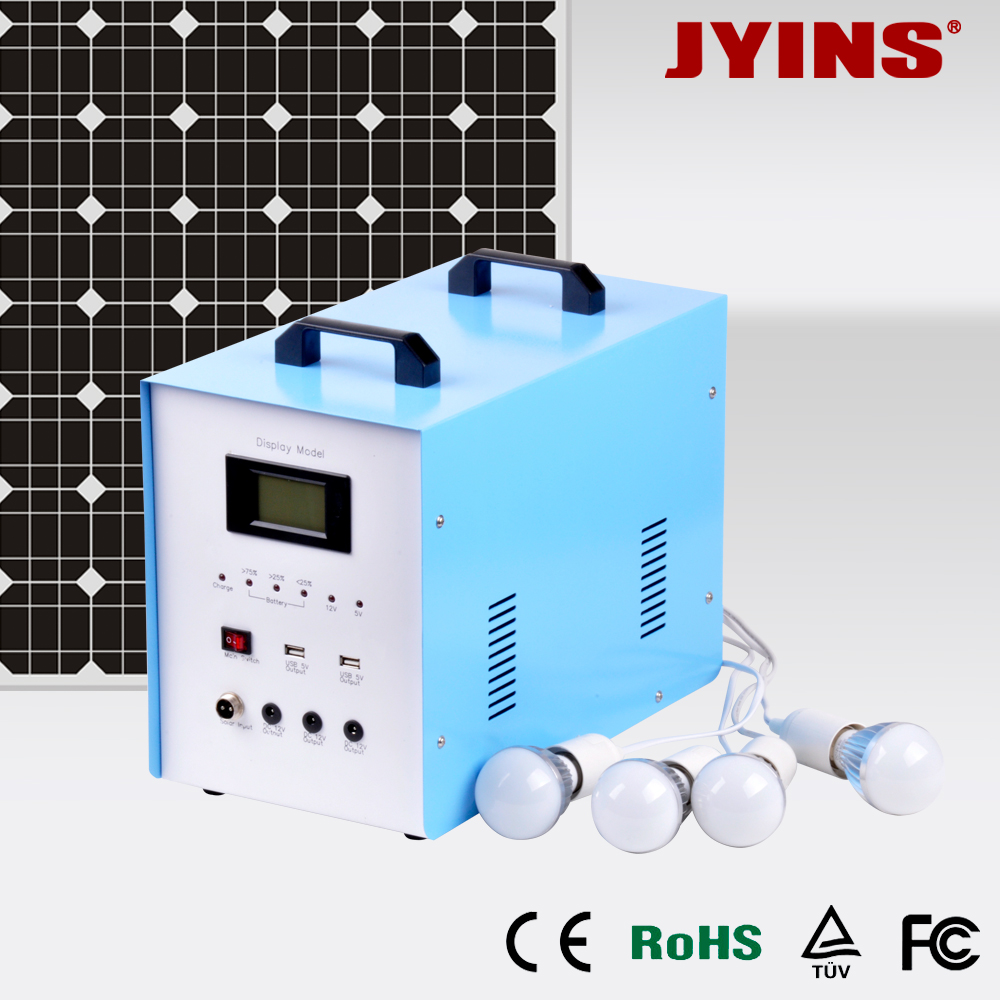

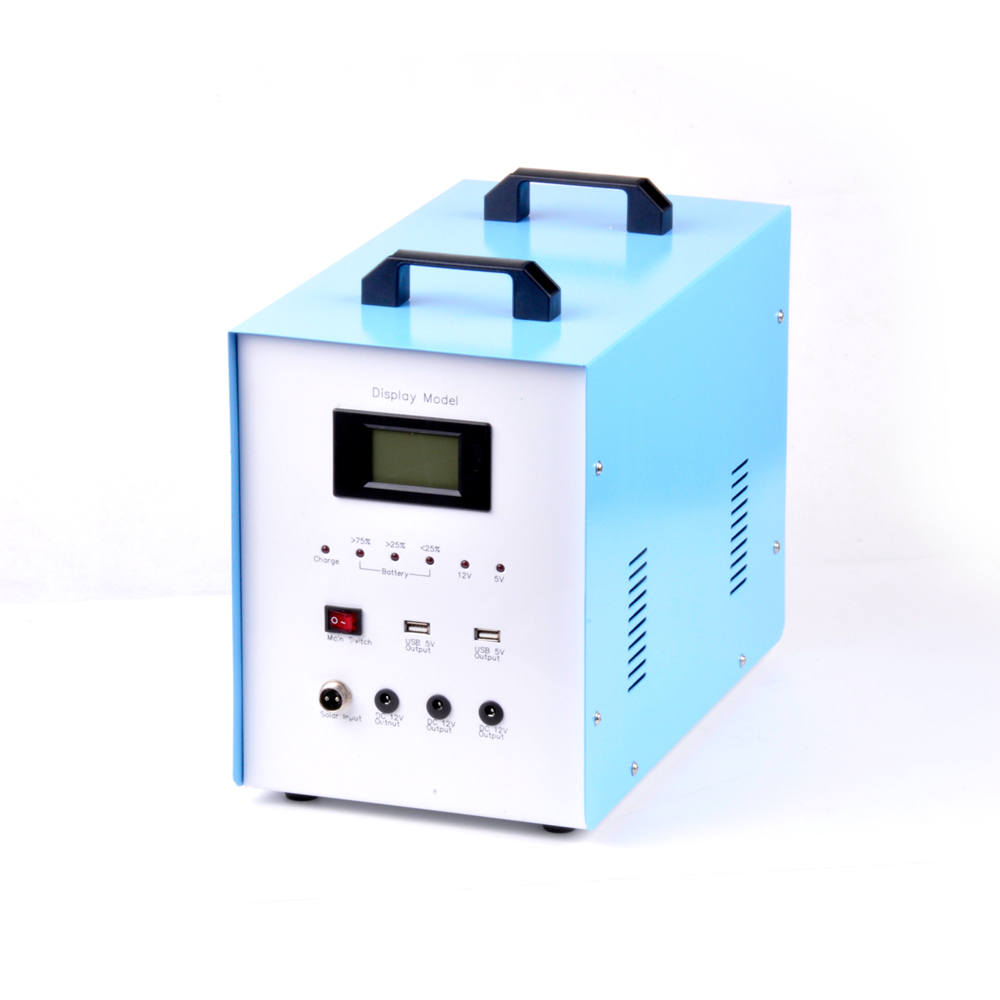

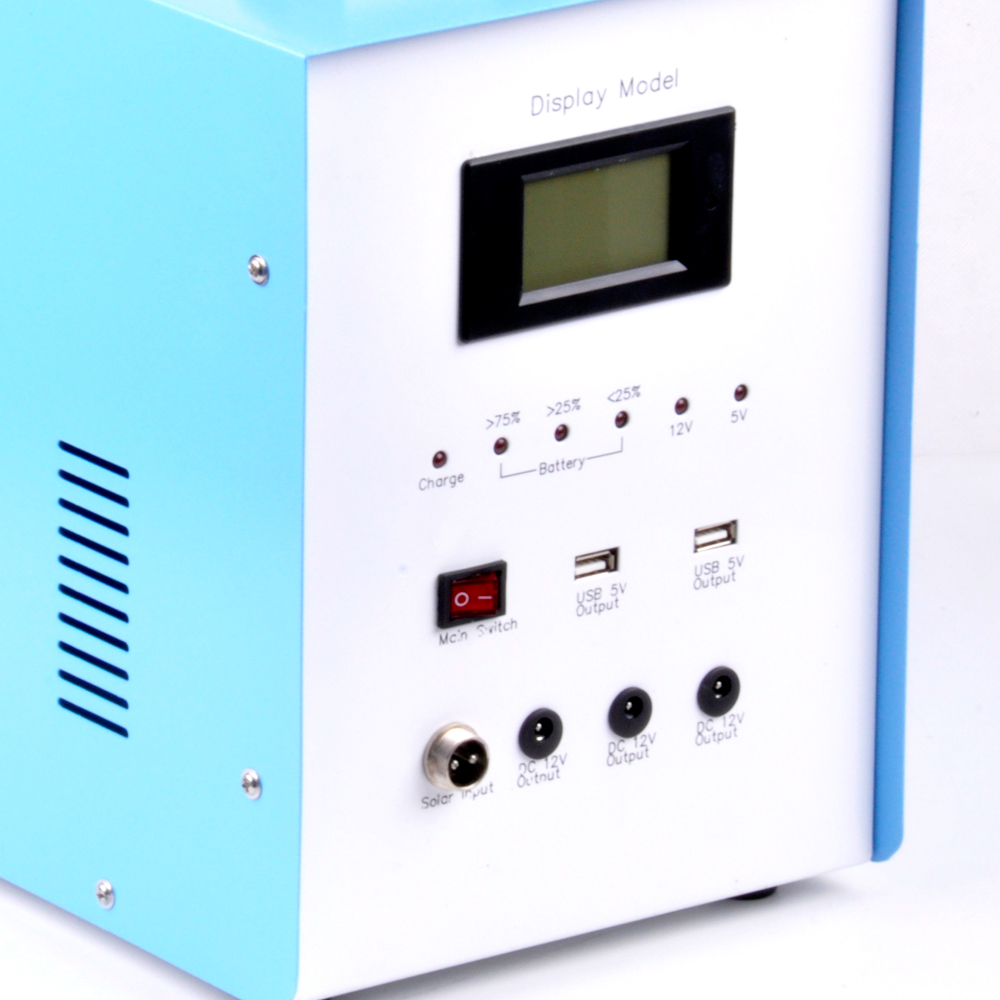

S038-200W Solar system

Print This Page

E-Mail To Us: info@jyins.com

Add to Inquiry basket View My Inquiry Basket SEND INQUIRY

PDF File:

PRODUCT FEATURES

Integrated design for charging DC 12V power supply, lighting device ,5V digital products.
High efficient PWM charing technology, intelligent management of battery's charging and discharging.
Compact dimension, low weight, easy to carry.
It can be charged both by solar energy and city electricity.

SPECIFICATIONS

Item	JYPS038		JYPS038A
Solar Panel	18V/100W -200W (Mono/Poly)
Lead-acid Battery	12V/50AH*1Pcs Deep Cycle Free Maintenance
Adapter	NO		18V4.7A
Controller	PWM 12V/10A
Output Voltage	DC12V10A, USB5V1A
City Electricity Switching Time	NO

Charging Mode	PV Charging		PV/City Electricity Charging
Charging Time	5 Hrs by 100W Solar Panel with Sufficient Sunlight,7h by City Electricity

	2.5 Hrs by 200W Solar Panel with Sufficient Sunlight,7h by City Electricity

Operating Environment	0-45℃
System Case Size	353199264mm
Packing Size	400230400mm
Net Weight	19.3 KG
Standard Cable Spec.	5m DC Cable + DC Connector

Load Capacity

Appl iance	Spec(W)	Qty(PCS)	Working Hour(h)	Power Consumption(W.h)
Mobile Phone	5	2	2	20
LED Bulb	2	3	8	48
Fan	10	1	5	50
TV	25	1	8	200
Refrigerator	40	1	4	160
Total：				478

P₁PRODUCT FEATURES P₂SPECIFICATIONS P₃Load Capacity
