FZ1230

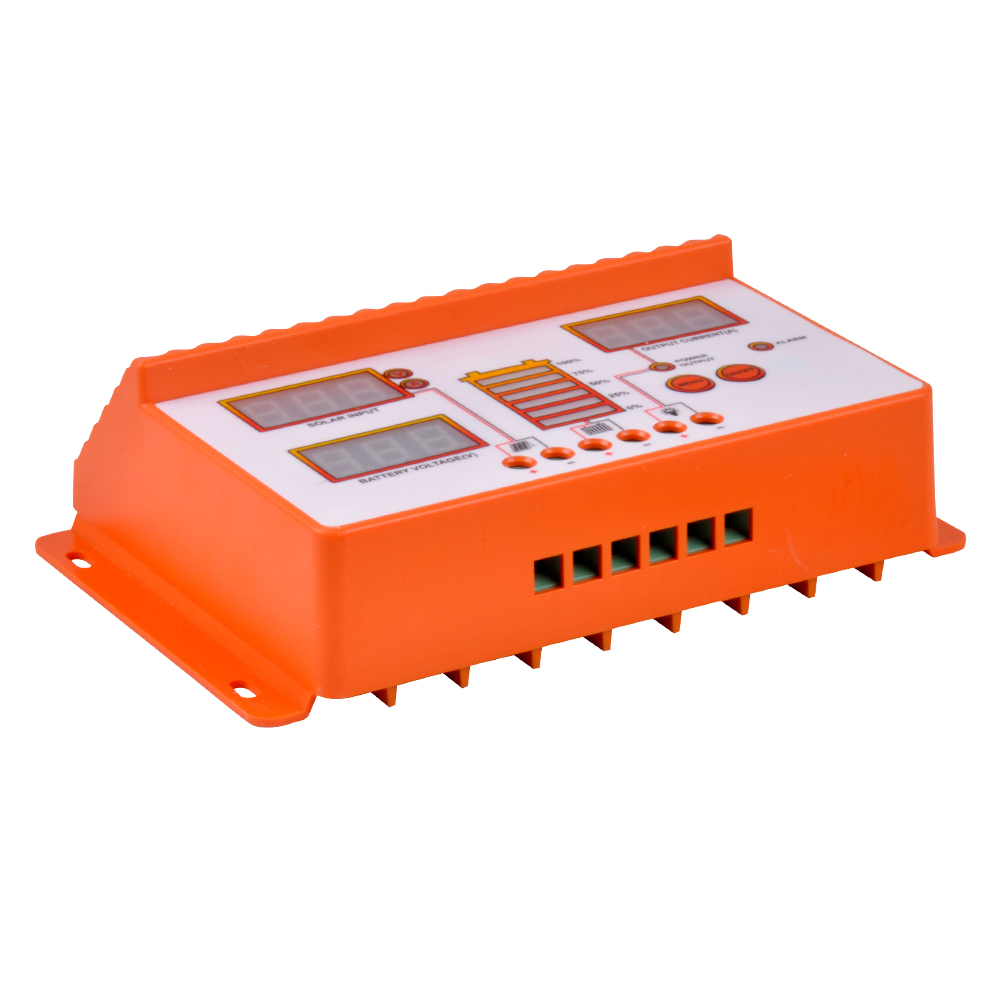

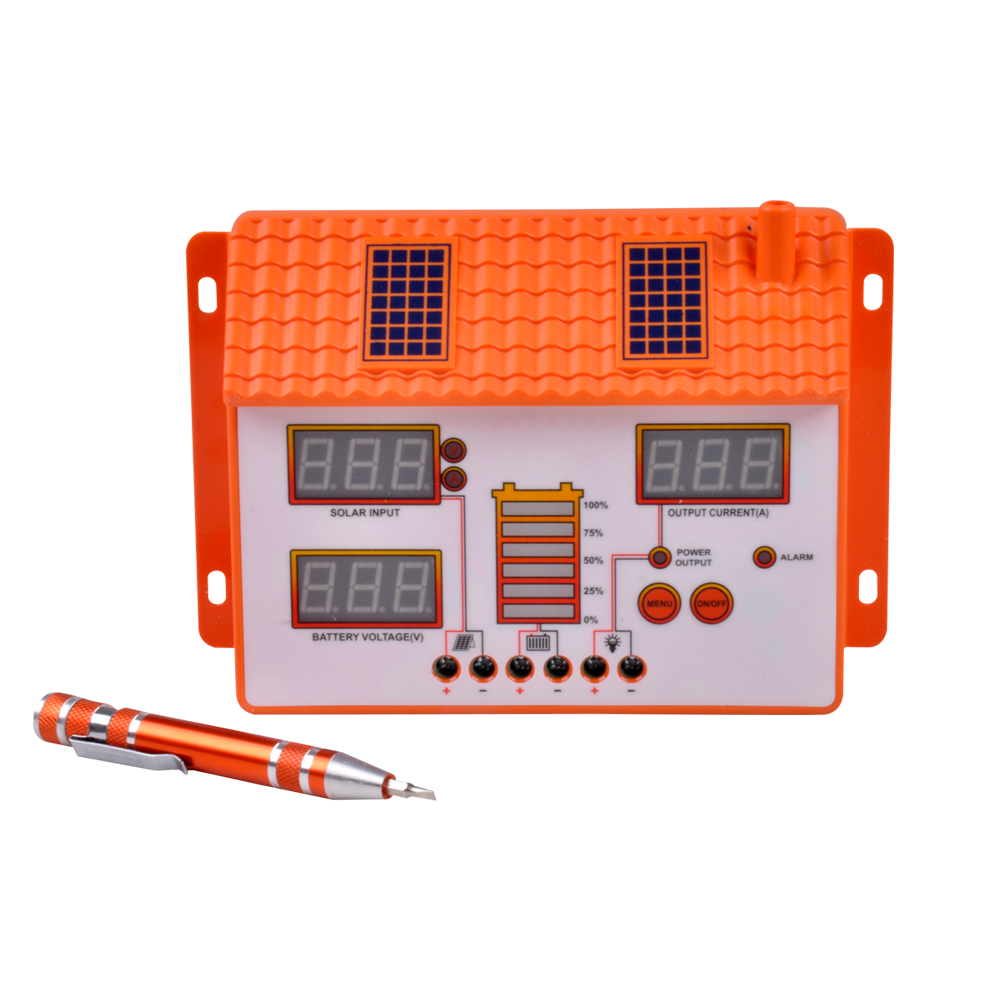

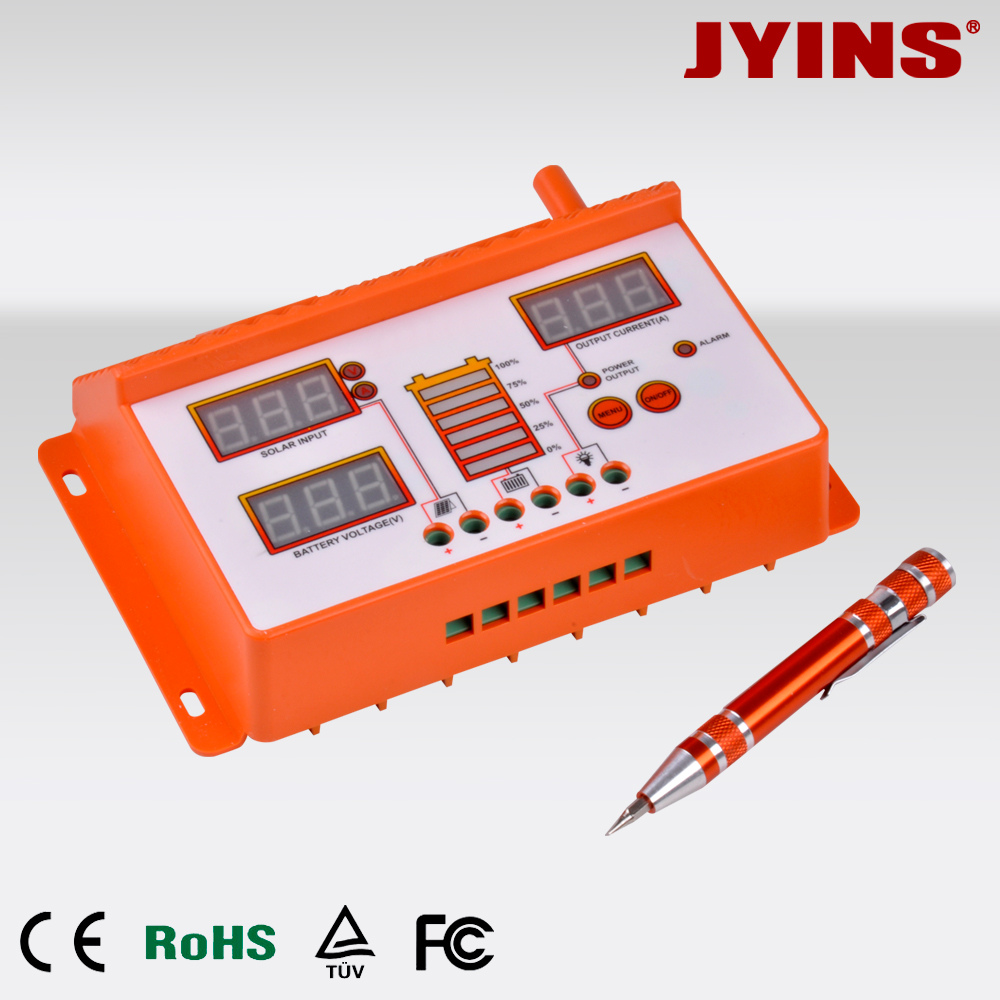

Solar system controller

Print This Page

E-Mail To Us: info@jyins.com

Add to Inquiry basket View My Inquiry Basket SEND INQUIRY

PDF File:

TROUBLE SHOOTING

Models	FZ10A	FZ15A	FZ20A	FZ30A	FZ40A	FZ45A	FZ50A
Input Voltage	12、24V (Automatic recognition)
Rated Charging Curent	10A	15A	20A	30A	40A	45A	50A
Rated Discharging Curent	10A	15A	20A	30A	40A	45A	50A
Protect Action	Overload.short circuit protection action≥3s，rated coltage of short circuit protection 1.1s，rated current will be delay to turn off in 10s

Voltage Drop	The charging voltage drop≤0.2V
	The discharging voltage drop≤0.1V
Overvoltage Protection	14.8V（12V）/29.6V（24V）
Over Discharge Voltage	10.5V（12V）/21V（24V）
Over Discharge Recovery	12.5V（12V）/25V（24V）
Working Tempertaure	-20~55℃
Dimesion	155x107x41mm			195x134x56mm
Net Weight	270g			530g

P₁TROUBLE SHOOTING
