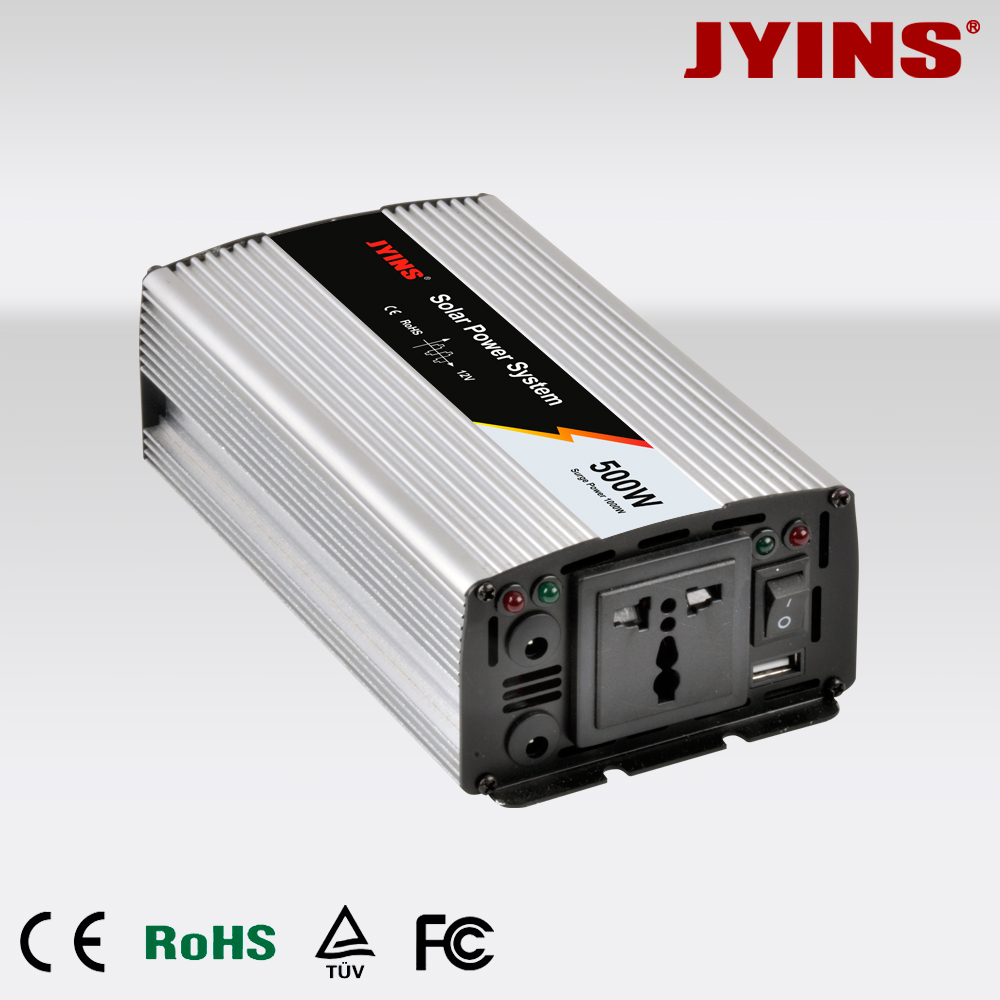

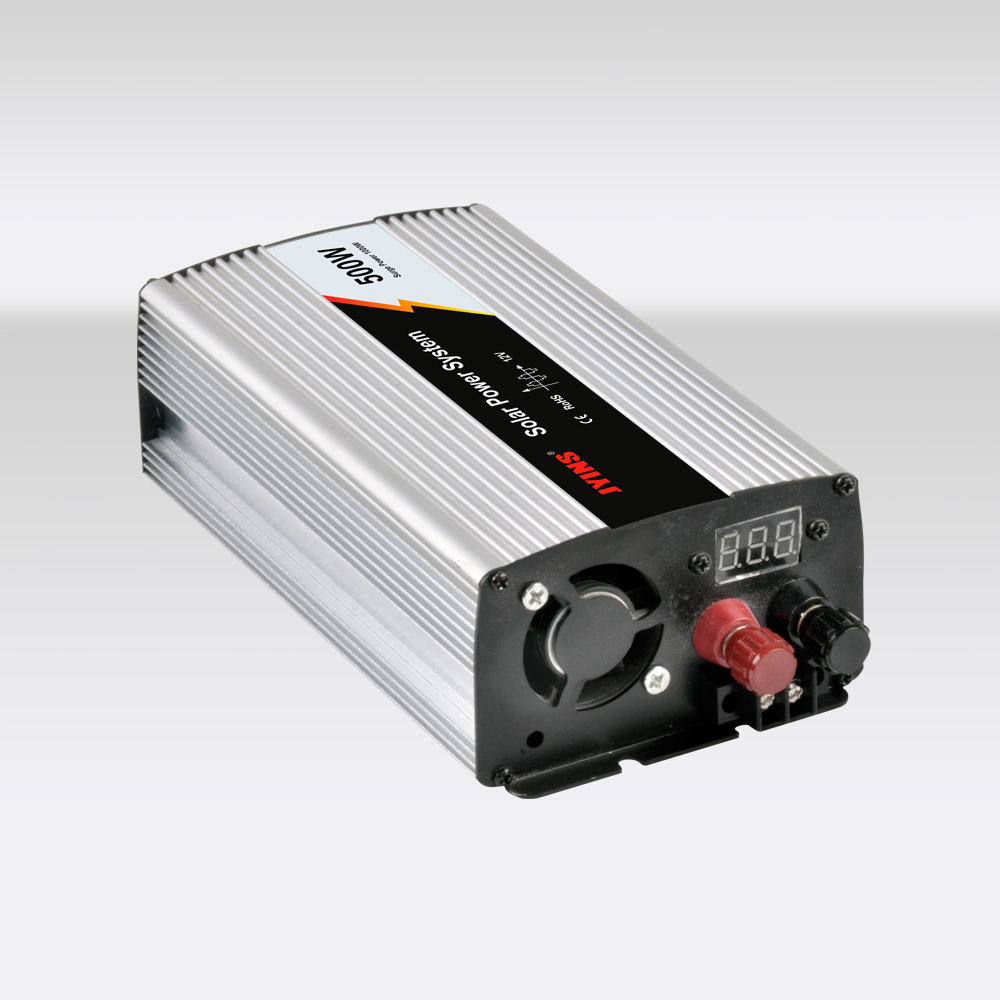

JYMC-500W-JYINS Electric

JYMC-500W

Add to Inquiry basket View My Inquiry Basket SEND INQUIRY

PDF File:

Product description

The series inverter and the solar charge discharge controller integration design referred to as inverse control of various machine; a with high performance, high reliability, load ability, perfect protection, intelligent charging control management function of the inverse power supply, DC voltage 12V inverter occasions for business, household, workstations, home appliances, below the rated power equipment to provide reliable power supply. In short it is a powerful, wide range of application of an intelligent high frequency inverse control power supply.

Product characteristics

1, Modified Sine Wave output;
2, LED display, you can visually display all the running parameters of the machine;
3, high conversion efficiency, conversion efficiency of 90%, low loss;
4, carrying capacity and anti load capacity;
5, perfect protection function: low pressure, high pressure, high temperature, short circuit, overload, reverse connection protection, etc.;

technical parameter

Inverter Parameters	Model	JYMC-500
	Rated power	500W
	Peak power	1000W
	Input voltage	DC12V
	Output voltage	110VAC or 220VAC±5%
	Unload current less than	0.3A
	Output frequency	50Hz±0.2Hz or 60Hz±0.2Hz
	Output waveform	Modified Sine Wave
	USB port	5V 1A
	Max.efficiency	90%
	Input voltage range	10-15.5V
	Low voltage alarm	10.5±0.5V
	Low voltage protection	10±0.5V
	Over voltage protection	15.5±0.5V
	Low voltage recover	12.3±0.5V
	Over voltage recover	14.8V±0.5V
	Protection function	Low voltage	Alarm at first, voltage continously reduce. LED Red light on & shut sown.
		Over voltage	LED Red light on, shut down
		Over load	LED Red light on, shut down
		Over temperature	Alarm at first, tempurature continously rise.LED Red light on & shut sown
		Short circuit	LED Red light on
		Input reverse polarity	Fuse burn-out
Solar Charger Parameters	Battery	12V
	Charging voltage	14.5V±0.3V
	PV Input Current	10A(Max)
	PV Input Voltage	25V(Max)
	Low Voltage Disconnection	9.5V±0.5V
	Low Voltage Reconnection	12.6V±0.3V
Other Parameters	Working temperature	-10°- +50°
	Storage temperature	-30°- +70°
	Dimension(mm)	215x106x63mm
	Packing(mm)	265x145x73mm
	Net./gross weight(g)	765/980g
	QTY/Ctn	15pcs
	Meas./Ctn(mm)	465x315x395mm
	Gross weight/Ctn(g)	14700g
	Warranty	1 years
	Configuration	Standard
	Cooling method	Intelligent air cooling
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
