Our Products

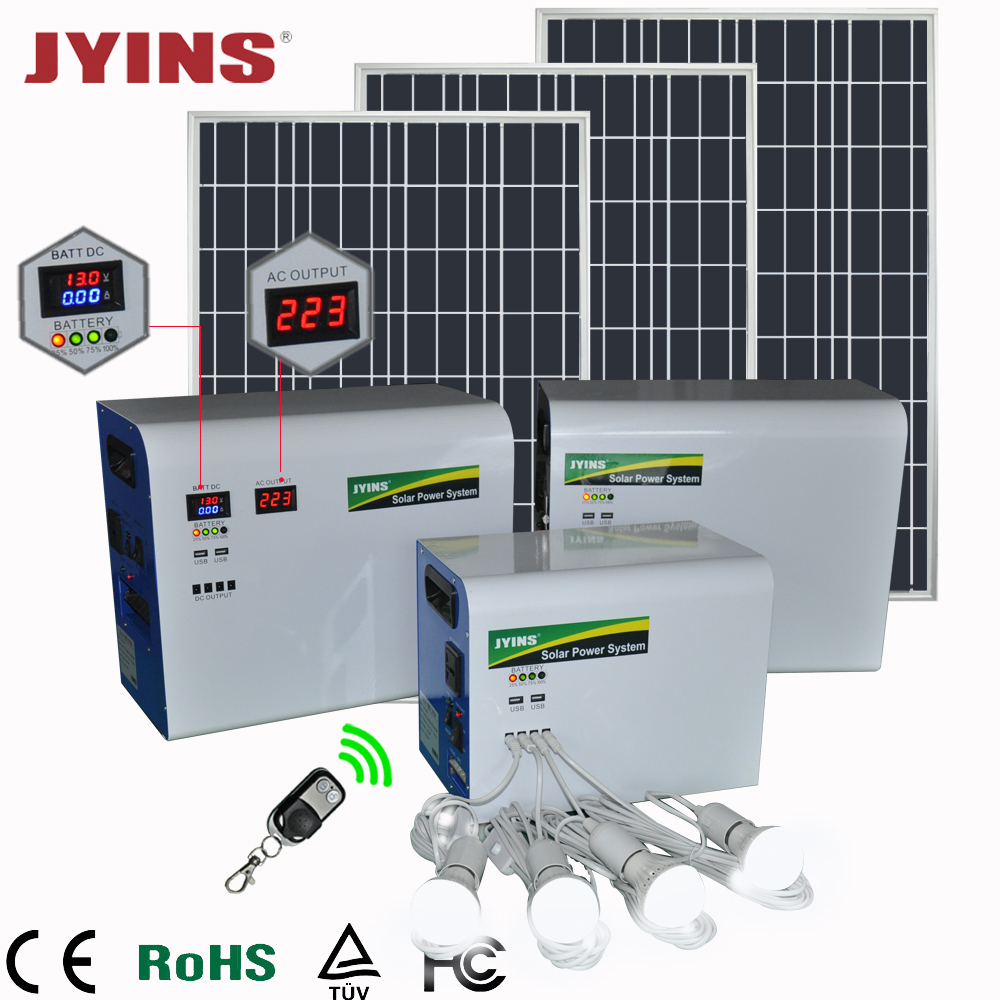

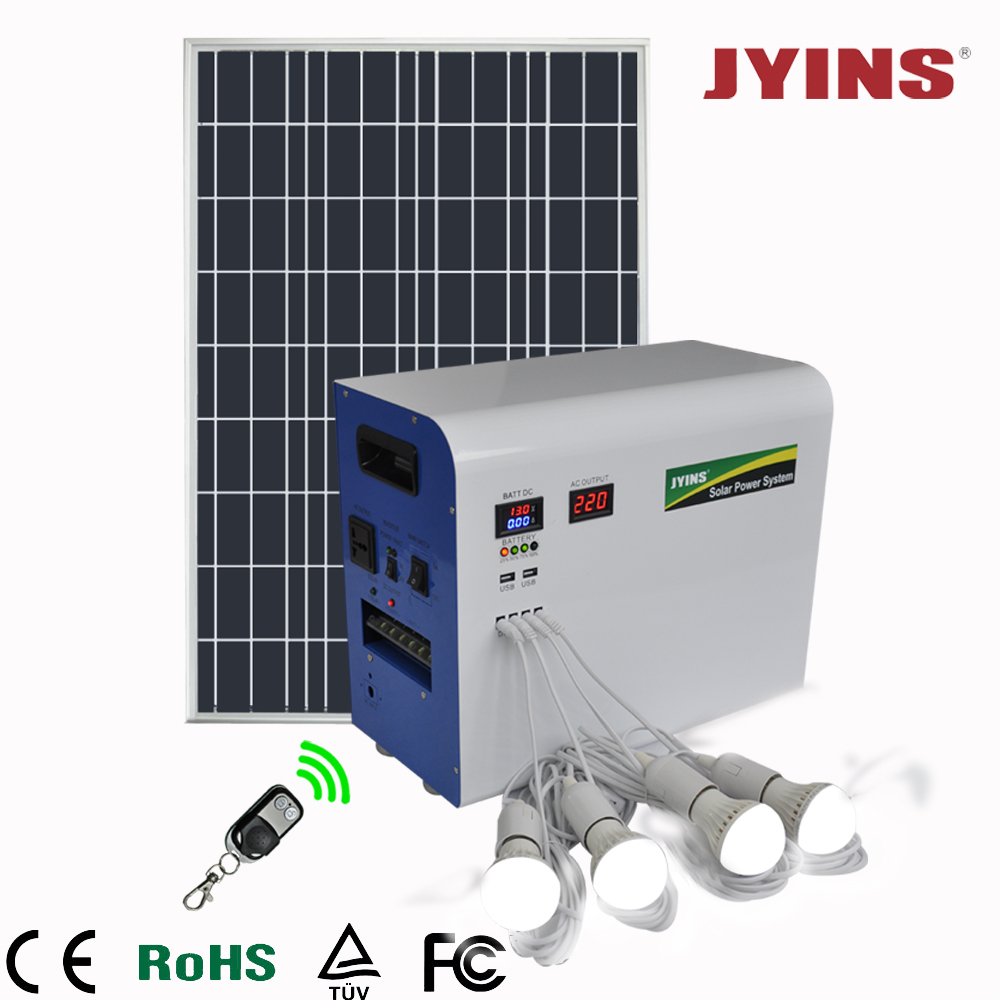

豪华主图豪华1豪华2豪华经济组合图
Features
-Integrated design, easy install and maintain
-Switch mode: manual & remote control

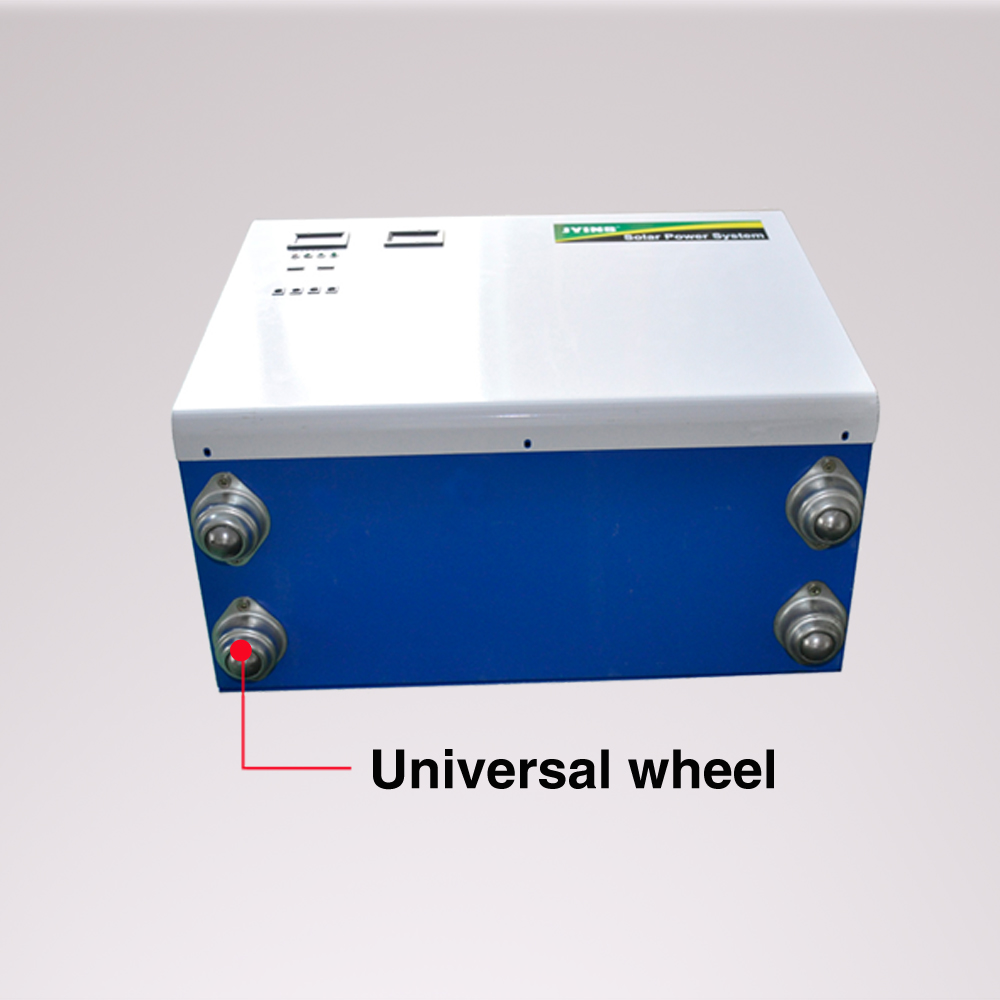

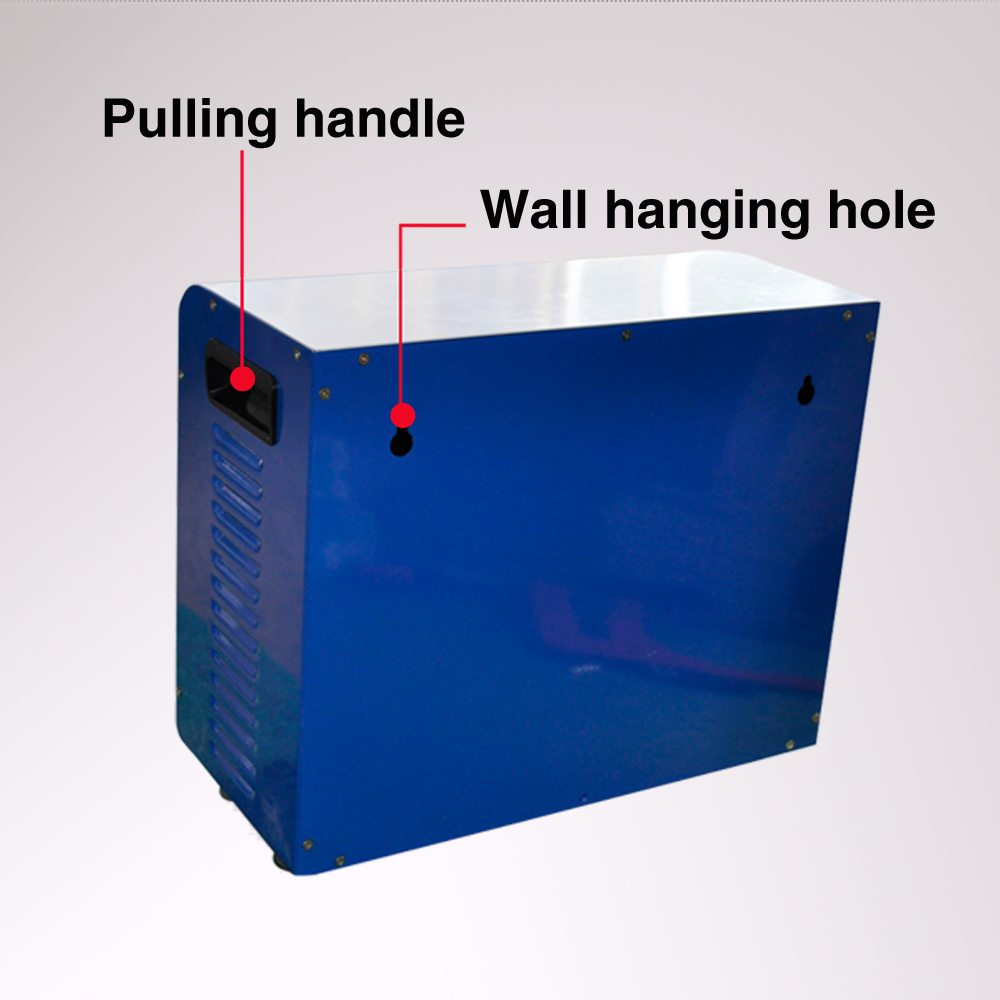

-Power box: wall mounting & horizontal
-Two working mode: AC & DC
-Safety and stable power supply
-Intelligent battery management, Pure sine wave output
- Fault indicator light display ,With perfect protect functions
Technical parameter
Product Name Specification JYSY-080D
Solar panel Model No. JYSY-P100W(poly crystalline)
Rated Maximum Power 100W
　Quantity(pcs) 2 pcs
Maximum Power Voltage:18Vmp - Current: 5.56Imp
Open Circuit Voltage(Voc) 21.24V
Short Circuit Current(Isc) 6.11A
Maximum System Voltage 1000V
Operating Temperature -40℃～+85℃
Lead-acid battery Standard Test Conditions 1000W/m2, AM1.5, 25℃
Solar controller Nominal Capacity 12V100AH
Rated Voltage(V) 12V
Maximum charging current(A) 20A
ChargeVoltage(V) Floating charge: 14.4V,Equalizing charge: 13.8V
Voltage range (V) 11-16.5V
Operating temp. -40℃～+60℃
Inverter Continuous power 500W
Peak power 1000W
AC output Voltage & Frequency 110/220/240V ±10% ;50Hz ± 2%
Wave form Pure Sine Wave
Input:DC 12V Working Voltage:11V-15V
Efficiency :>93% Overload Protection:500-600W
Thermal protection:≥60℃ Cooling method:By fan
DC Low-voltage Alarm:9.5-11V Fuse :20A*2
DC Low-voltage Protection:9-10.5V DC Over-voltage Protection:≥15V
Green Led Indicator Green Light(Working),Flash(Overload Protection)
Red LED Indicator Red Light(Error Protection)
PV cables:4mm²  *10m; 5m Lamp holder &lamp wire*4PCS; PV brackets &Other accessories; Manual: 1pc
Packing Information
Volume(m³) 0.146cbm/set
G.W.(kg) 59.2kg/set
Quantity/20GP 178 set
How much electricity the solar system produce?
Daily production 680w-1080w
Average monthly production 20.4kw-32.4kw
Expected annual production 248.2kw-394.2kw
Max. output power 500w
Charging mode solar panel
Charging time By solar panel about 6 hours.
Working mode AC & DC
This solar power kit can supply power for mobile phones, lights, fan, tablet PC, laptop, printer, TV, Electrograph, washing machine, fridge, desktop computer, etc. Please note that total load power cannot exceed 500w, inductive load power should be less than 300w.
