Our Products

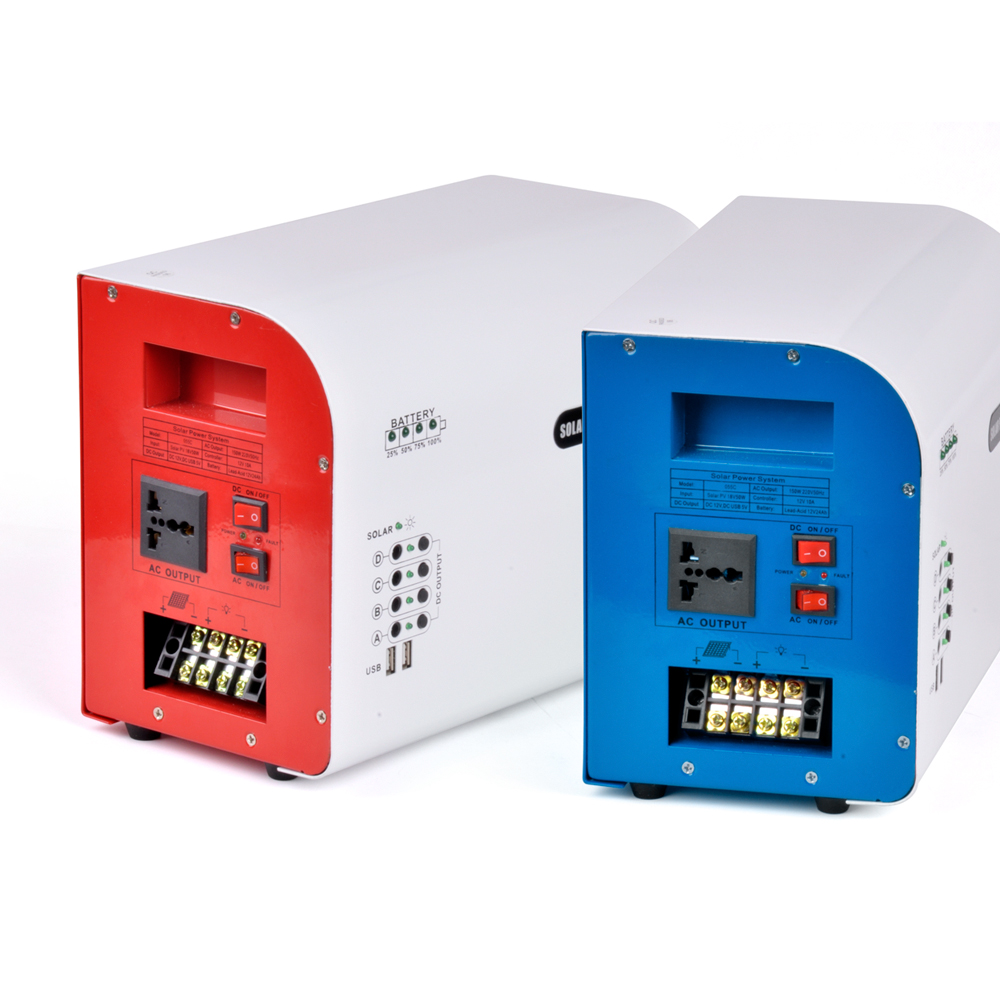

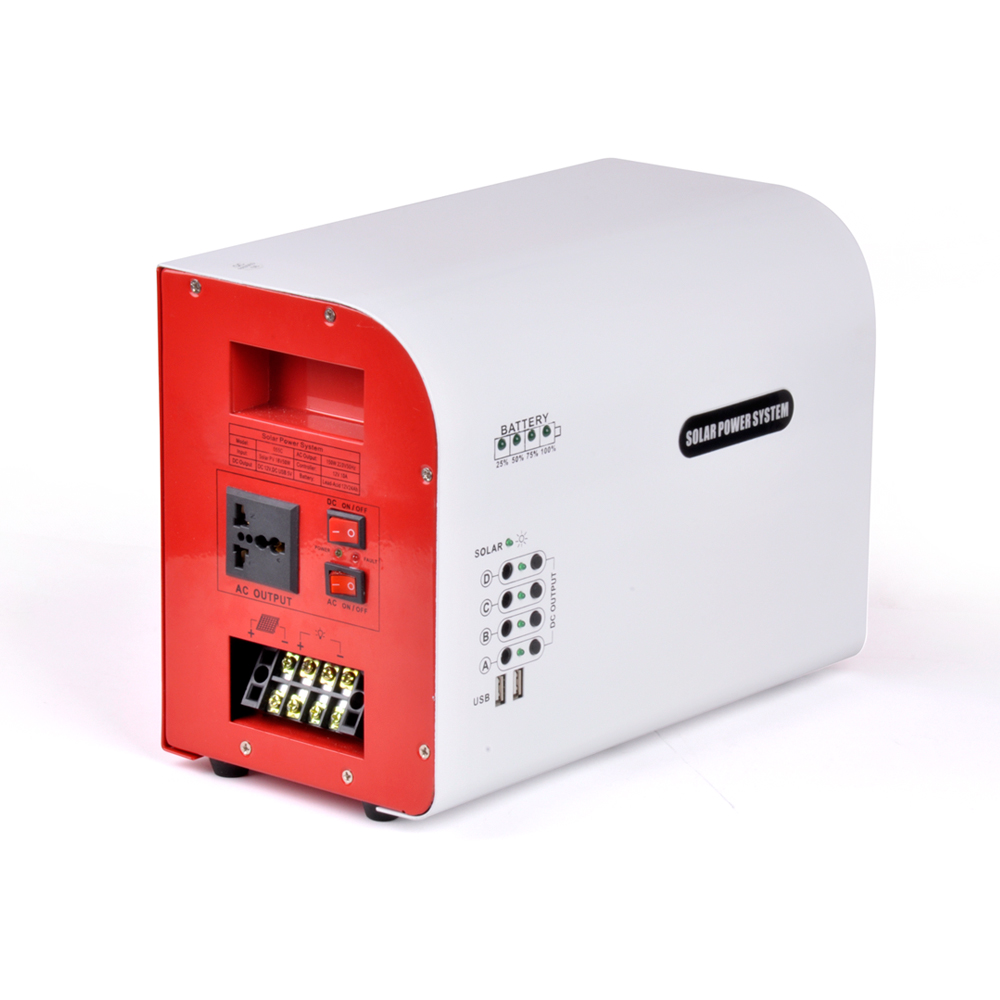

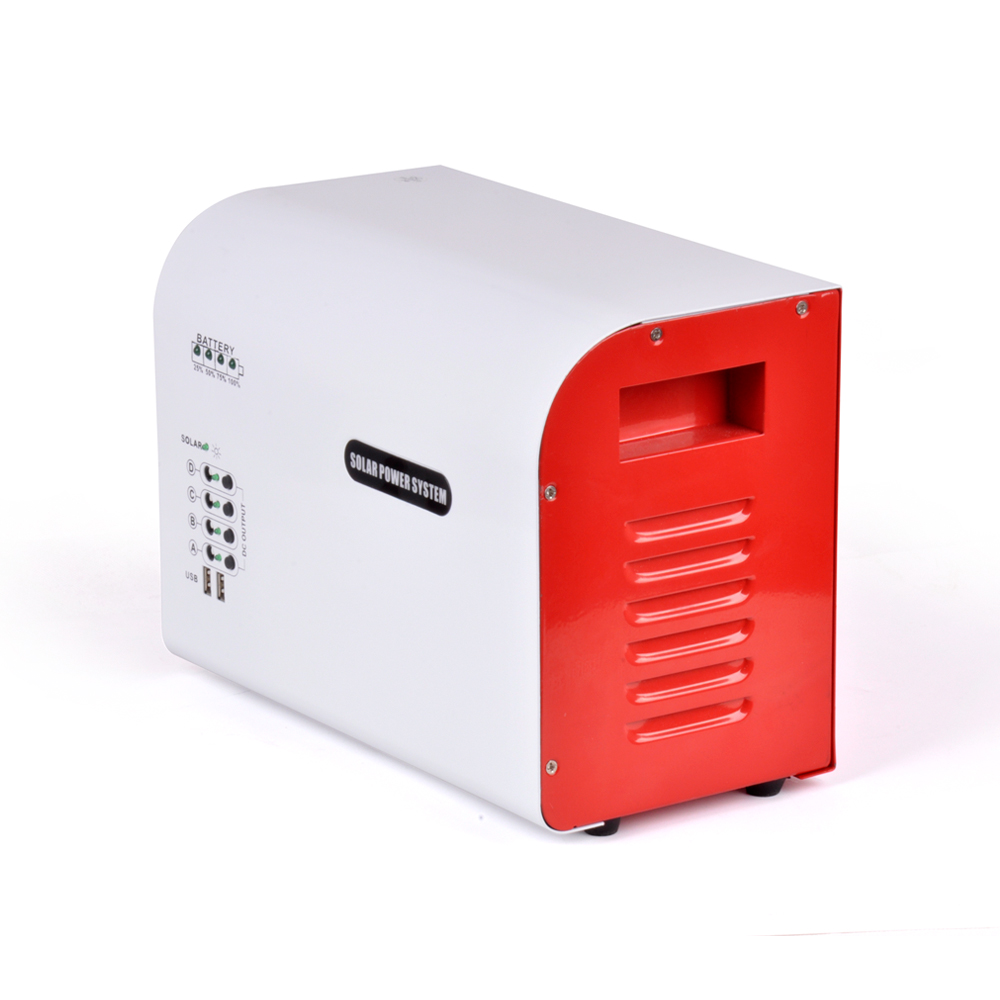

TY056D主图01TY056D主图02TY056D主图03TY056D主图04
Features
-Integrated design, easy install and maintain
-Switch mode: manual & remote control
-Power box: wall mounting & horizontal
-Two working mode: AC & DC
-Safety and stable power supply
-Intelligent battery management, Pure sine wave output
- Fault indicator light display ,With perfect protect functions
Technical parameter
Product Name Specification JYSY-056D
Solar panel Model No. JYSY-P120W(poly crystalline)
Rated Maximum Power 100W
Maximum Power Voltage: 18 Vmp - Current: 6.67Imp
Open Circuit Voltage(Voc) 21.24V
Short Circuit Current(Isc) 7.33A
Maximum System Voltage 1000V
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12V65AH
Solar controller Rated Voltage(V) 12V
Maximum charging current(A) 10A
ChargeVoltage(V) Floating charge: 14.4V,Equalizing charge: 13.8V
Voltage range (V) 11-16.5V
Operating temp. -40℃～+60℃
Inverter Continuous power 300W
Peak power 600W
AC output Voltage(V)and Frequency 110/220/240V ±10% ;50Hz ± 2%
Wave form Pure Sine Wave
Input:DC 12V Working Voltage:11V-15V
Efficiency :>93% Overload Protection:300-360W
Thermal protection:≥60℃ Cooling method:By fan
DC Low-voltage Alarm:9.5-11V Fuse :40A
DC Low-voltage Protection:9-10.5V DC Over-voltage Protection:≥15V
Green Led Indicator Green Light(Working), Flash(Overload Protection)
Red LED Indicator Red Light(Error Protection)

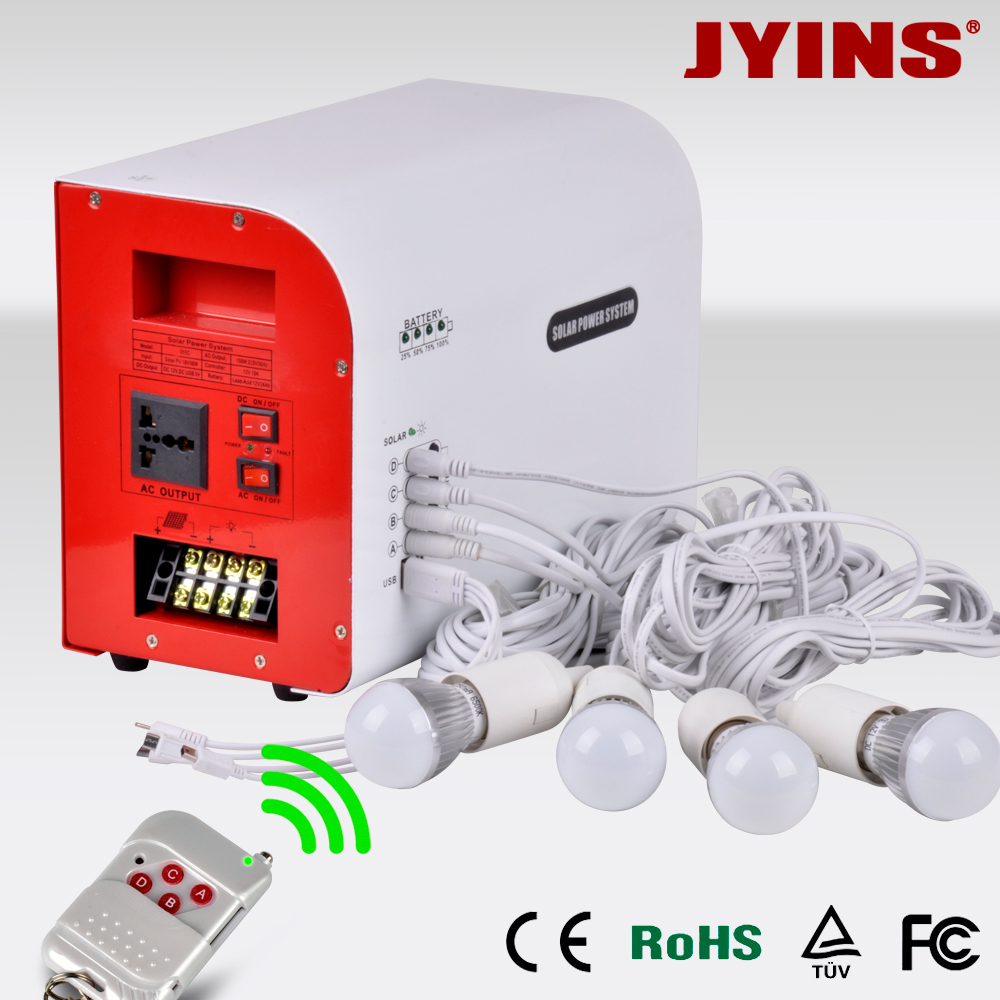

PV cables:4mm²  *10m; 5m Lamp holder &lamp wire*4PCS; PV brackets &Other accessories; Manual: 1pc
Packing Information
Volume(m³) 0.11 cbm/set
G.W.(kg) 40 kg/set
Quantity/20GP 236 set
How much electricity the solar system produce?
Daily production 340w-540w
Average monthly production 10.2kw-16.2kw
Expected annual production 124.1kw-197.1kw
Max. output power 500w
Charging mode solar panel
Charging time By solar panel about 7.8 hours.
Working mode AC & DC
This solar power kit can supply power for mobile phones, lights, fan, tablet PC, laptop, printer, TV, Electrograph, washing machine, fridge, desktop computer, etc. Please note that total load power cannot exceed 300w, inductive load power should be less than 200w.
