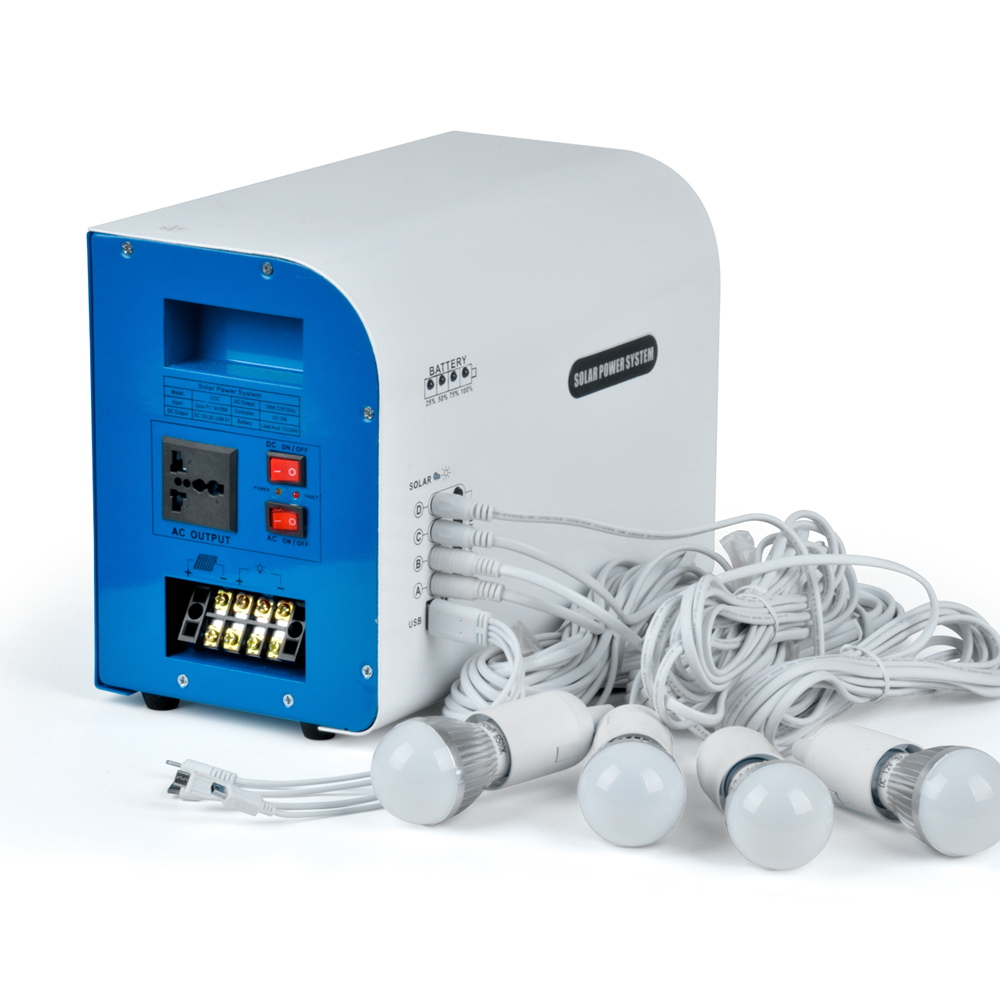

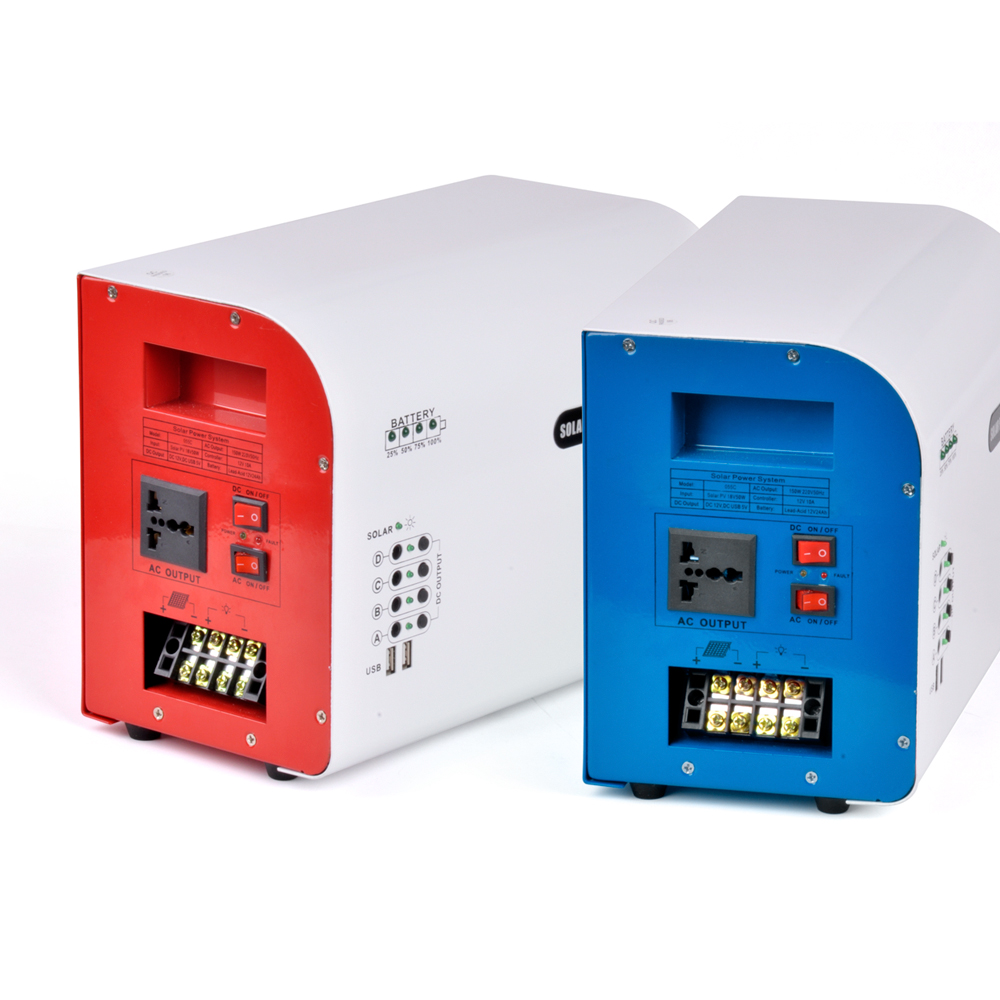

solar power kit (Economical Series)
-Integrated design, easy install and maintain

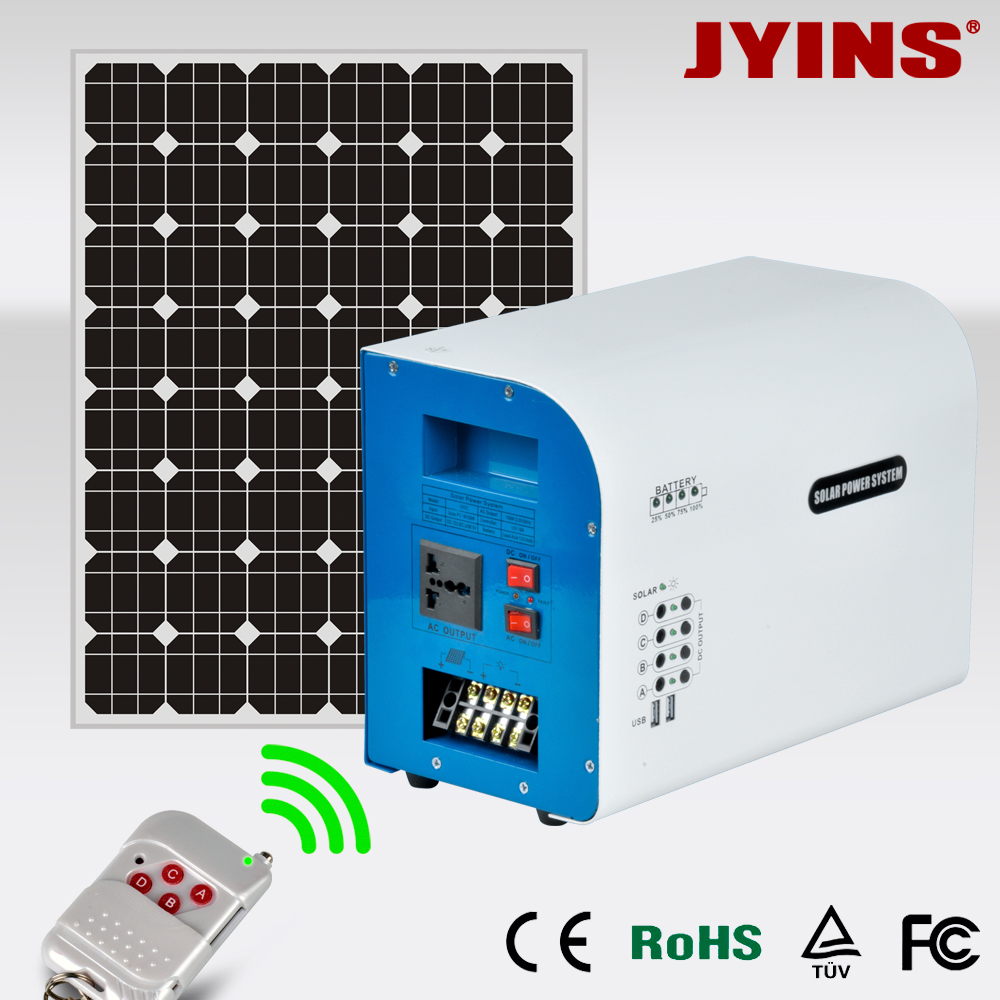

-Switch mode: manual & remote control

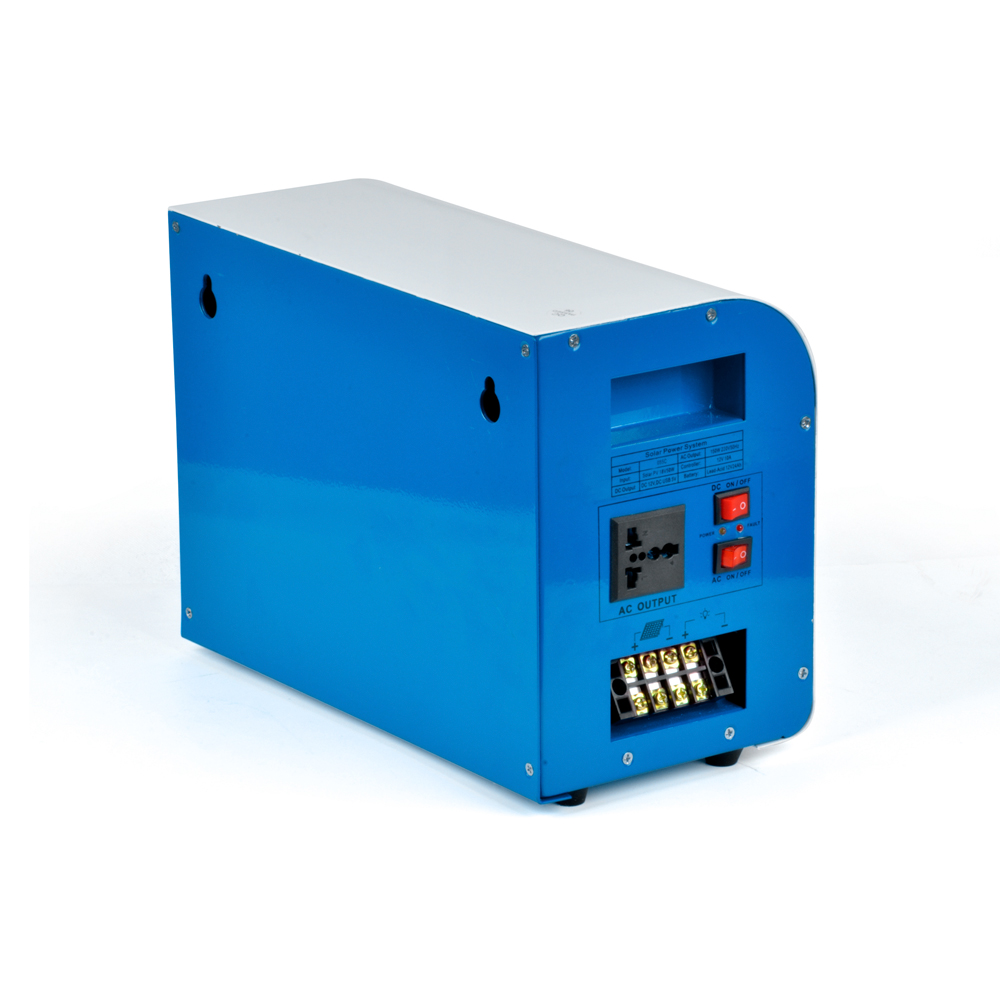

-Power box: wall mounting & horizontal
-Two working mode: AC & DC
-Safety and stable power supply
-Intelligent battery management, modified sine wave output
- Fault indicator light display ,With perfect protect functions
Technical parameter
Product Name Specification JYSY-056A
Solar panel Model No. JYSY-P50W(poly crystalline)
Rated Maximum Power 50W
Maximum Power Voltage: 18 Vmp - Current: 2.78Imp
Open Circuit Voltage(Voc) 21.24V
Short Circuit Current(Isc) 3.06A
Maximum System Voltage 1000V
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12V38AH
Solar controller Rated Voltage(V) 12V
Maximum charging current(A) 10A
ChargeVoltage(V) Floating charge: 14.4V,Equalizing charge: 13.8V
Voltage range (V) 10.8-16.5 V
Operating temp. -40℃～+60℃
Inverter Continuous power(W)                                                                 300W
Surge power(W) 600W
AC output Voltage(V)& Frequency (V) 220; 50Hz ± 2Hz
Wave form Modified sine wave
Input: DC 12V Working Voltage:9.5V-15.5V
Efficiency ≥70℃
Thermal protection:≥70℃ Cooling method:By fan
Storage temperature range 0℃～40℃
Alarm:yes Fuse :45A
DC low voltage shutdown: ≦9.5V Over voltage shutdown:≤15.5V
PV cables:4mm²  *10m; 5m Lamp holder &lamp wire*4PCS;  &Other accessories; Manual: 1pc
Packing Information
Volume(m³) 0.063 cbm/set
G.W.(kg) 24.5 kg/set
Quantity/20GP 412 set
How much electricity the solar system produce?
Daily production 172w-220w
Average monthly production 5.16kw-6.6kw
Expected annual production 62.78kw-79.2kw
Max. output power 300w
Charging mode solar panel
Charging time By solar panel about 9 hours.
Working mode AC & DC
This solar power kit can supply power for mobile phones, lights, fan, tablet PC, laptop, printer, TV, Electrograph etc. Please note that total load power cannot exceed 300w, inductive load power should be less than 200w.
