Our Products

TY055C主图01TY055C主图02TY055C主图03TY055C主图04

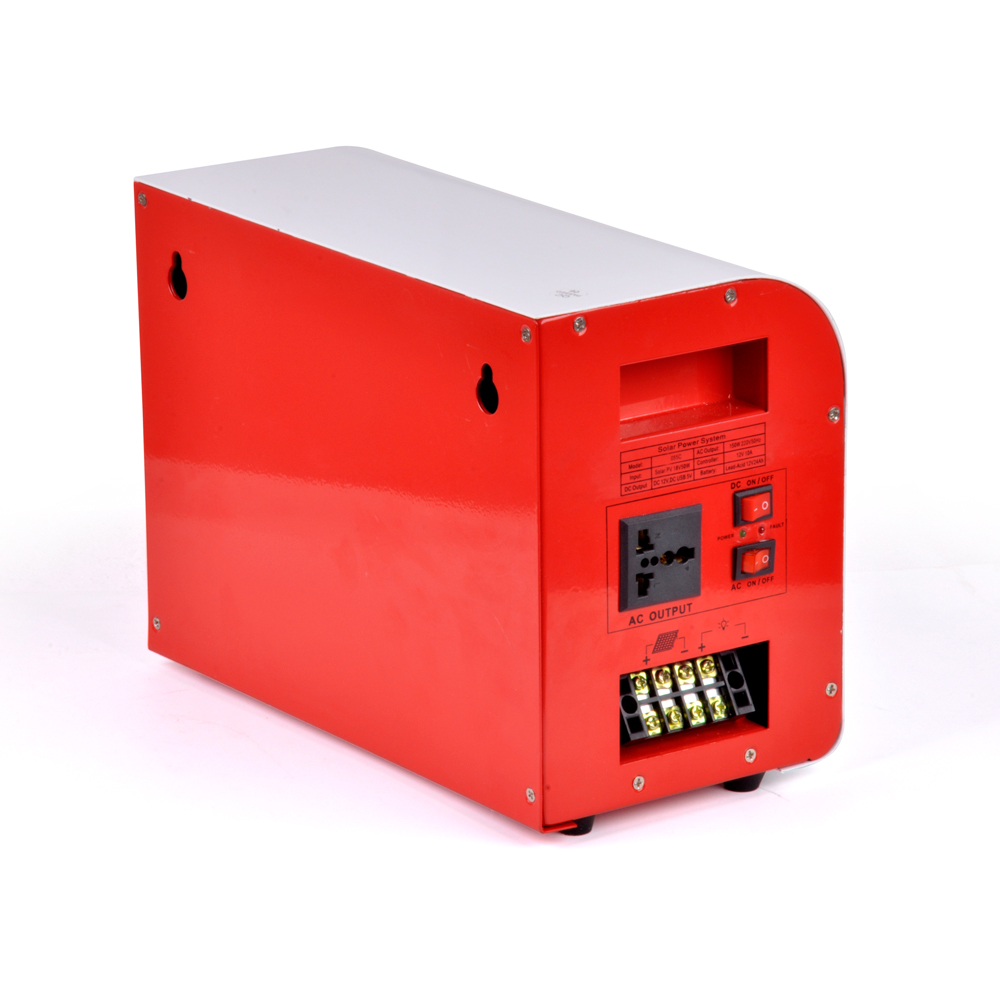

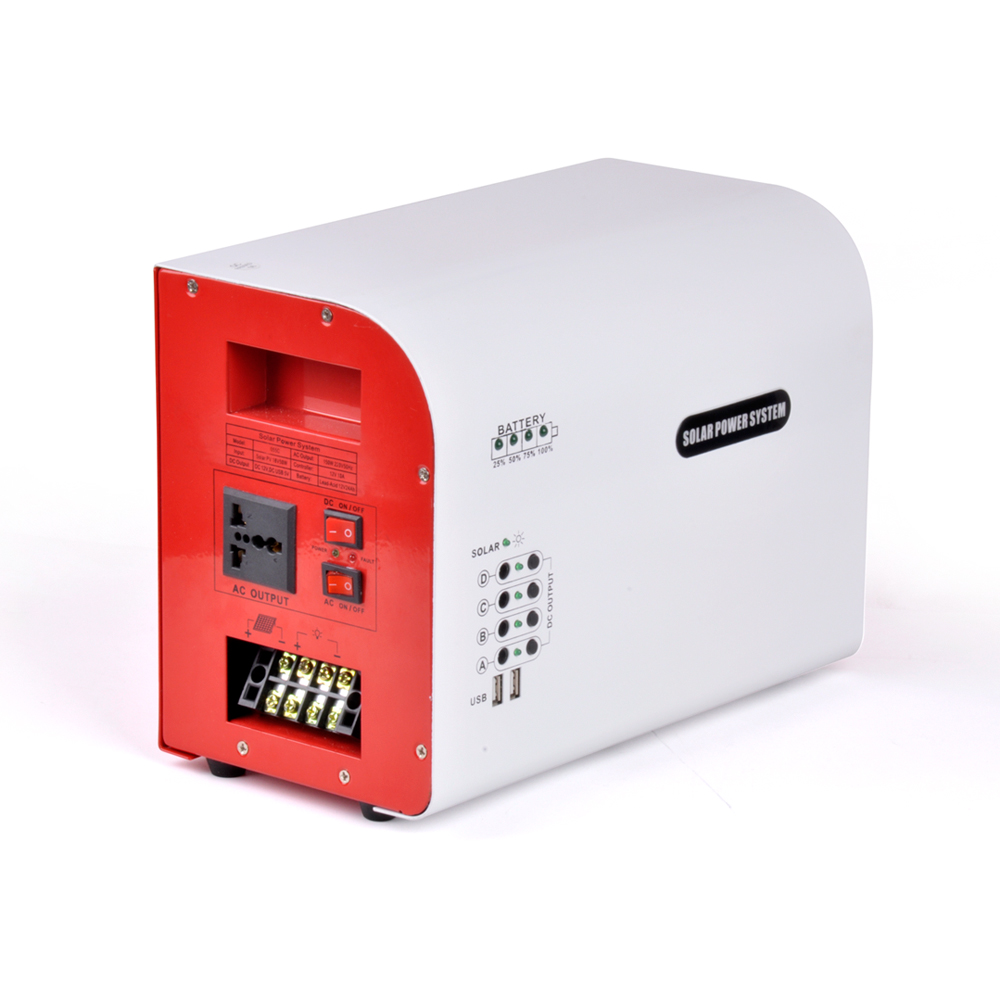

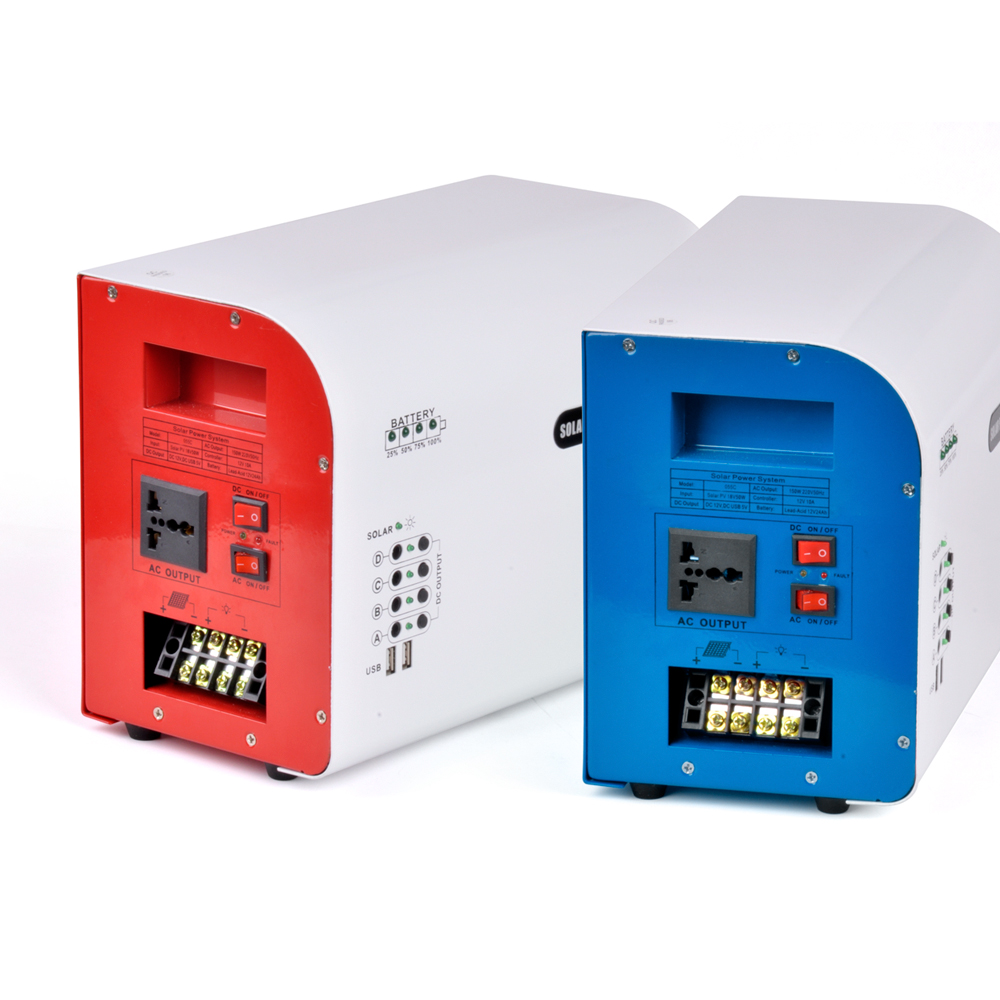

solar power kit (Economical Series)
-Integrated design, easy install and maintain
-Switch mode: manual & remote control
-Power box: wall mounting & horizontal
-Two working mode: AC & DC
-Safety and stable power supply
-Intelligent battery management, modified sine wave output
- Fault indicator light display ,With perfect protect functions
Technical parameter
Product Name Specification JYSY-055B
Solar panel Model No. JYSY-P20 (poly crystalline)
Rated Maximum Power 20W
Maximum Power Voltage (Vmp) 18V
Maximum Power Current (Imp) 1.11A
Open Circuit Voltage(Voc) 21.24V
Short Circuit Current(Isc) 1.22A
Maximum System Voltage 1000V
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12AH
Solar controller Rated Voltage(V) 12V
Maximum charging current(A) 3A
Floating charge protection(V) 14.4V
Equalizing charge protection(V) 13.8V
Voltage range (V) 10.8-16.5V
Operating temp. -40℃～+60℃

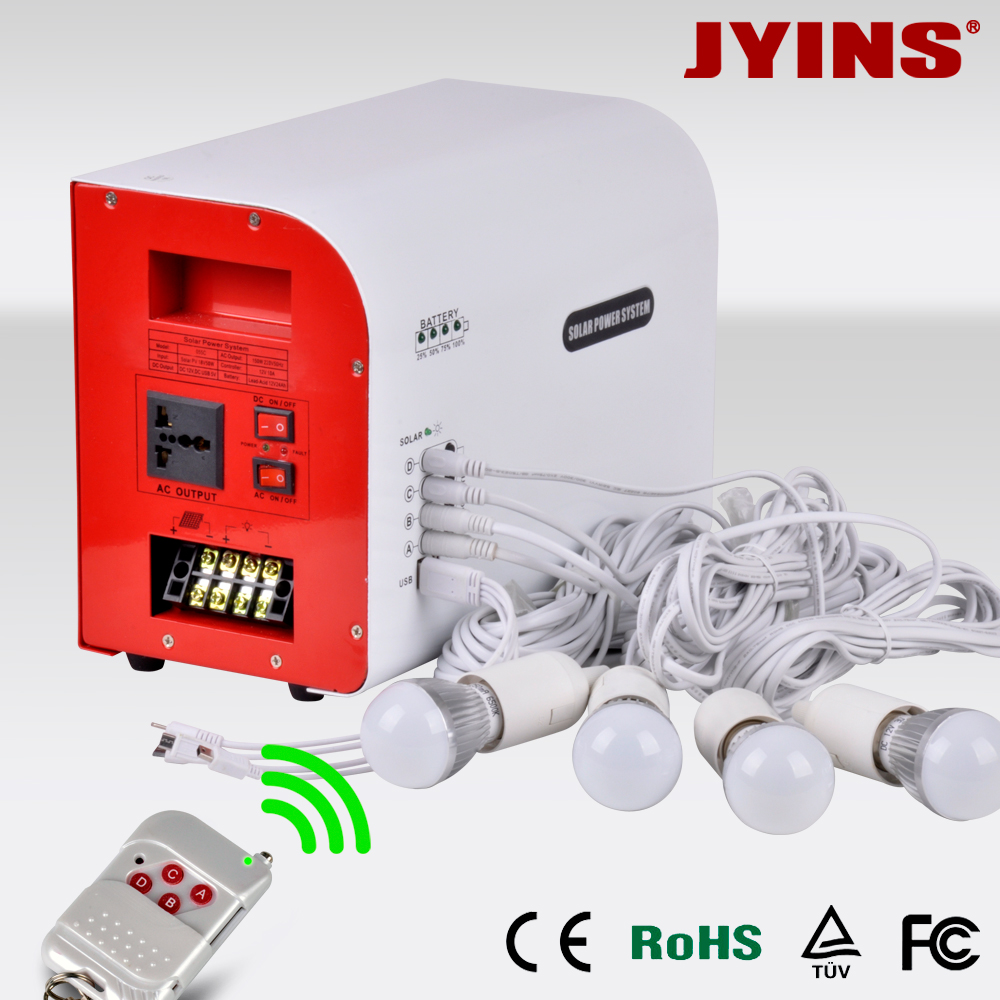

Accessories PV cables 5m
Remote control 1pc
USB charging wire 1pc
3w Led lamp 4 pcs
5m lamp wire and lamp holder 4 sets
Manual 1pc
Packing Information
Volume(m³) 0.020 cbm/set
G.W.(kg) 8.1 kg/set
Quantity/20GP 1050 set
How much electricity the solar system produce?
Charging mode solar panel
Charging time By solar panel about 7.2 hours.
Daily production 68w-108w
Working time(full charged) 3W lamps*2pcs work 24 hours; 3W lamps*4pcs work 12 hours
The solar lighting system can supply power for light, 6''fan, mobile phones, MP3 players and other 5V electronic equipments.
