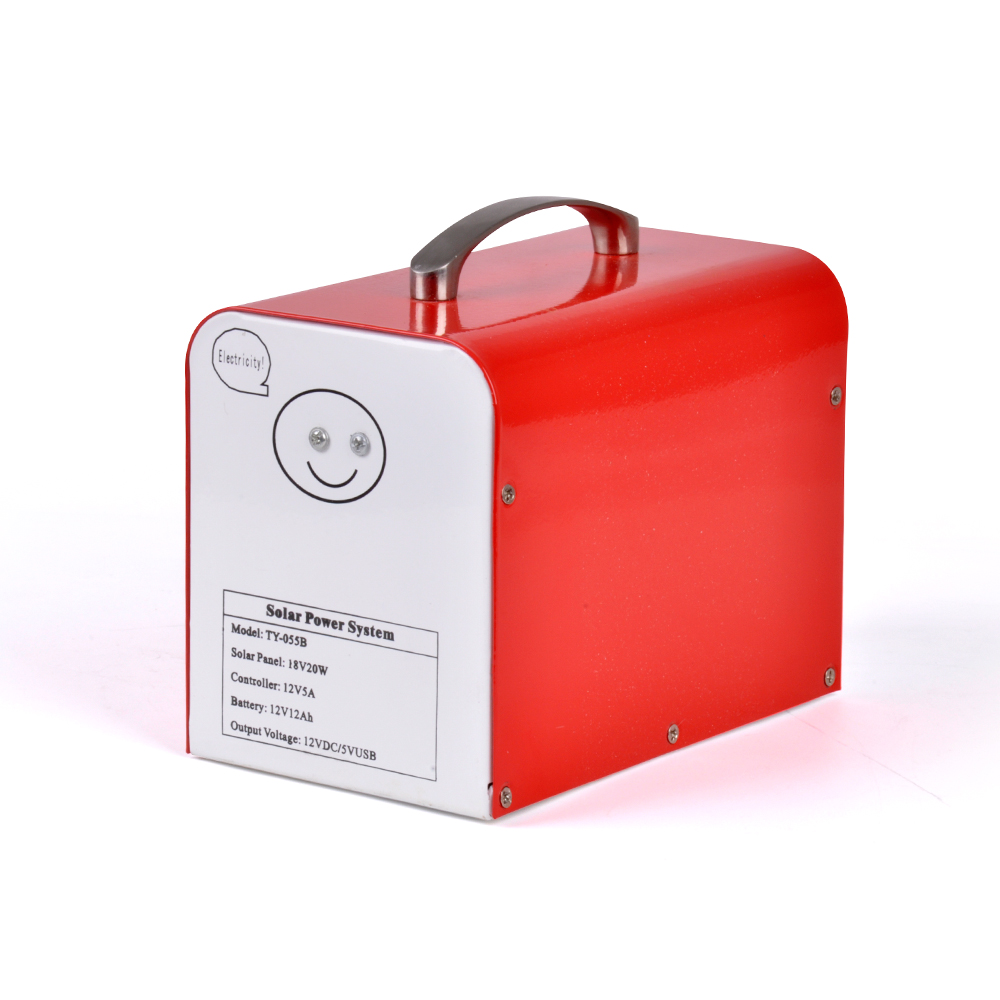

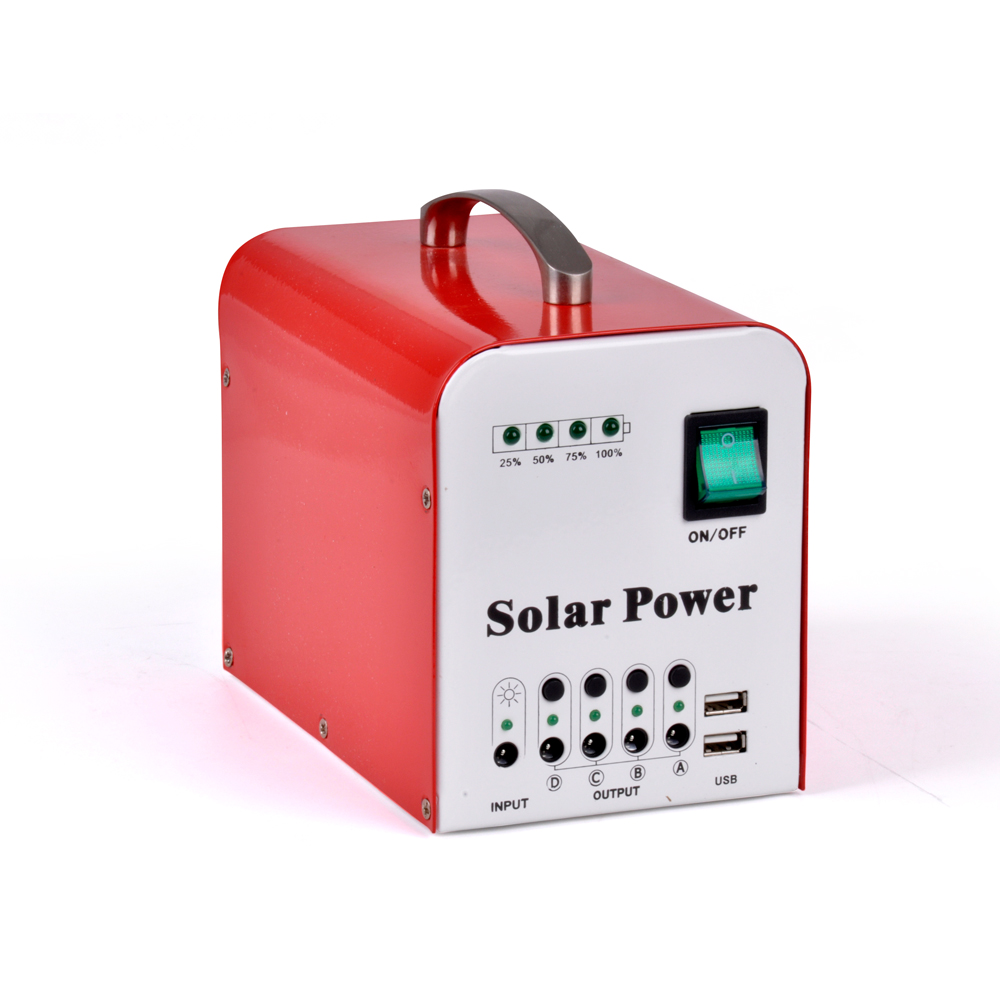

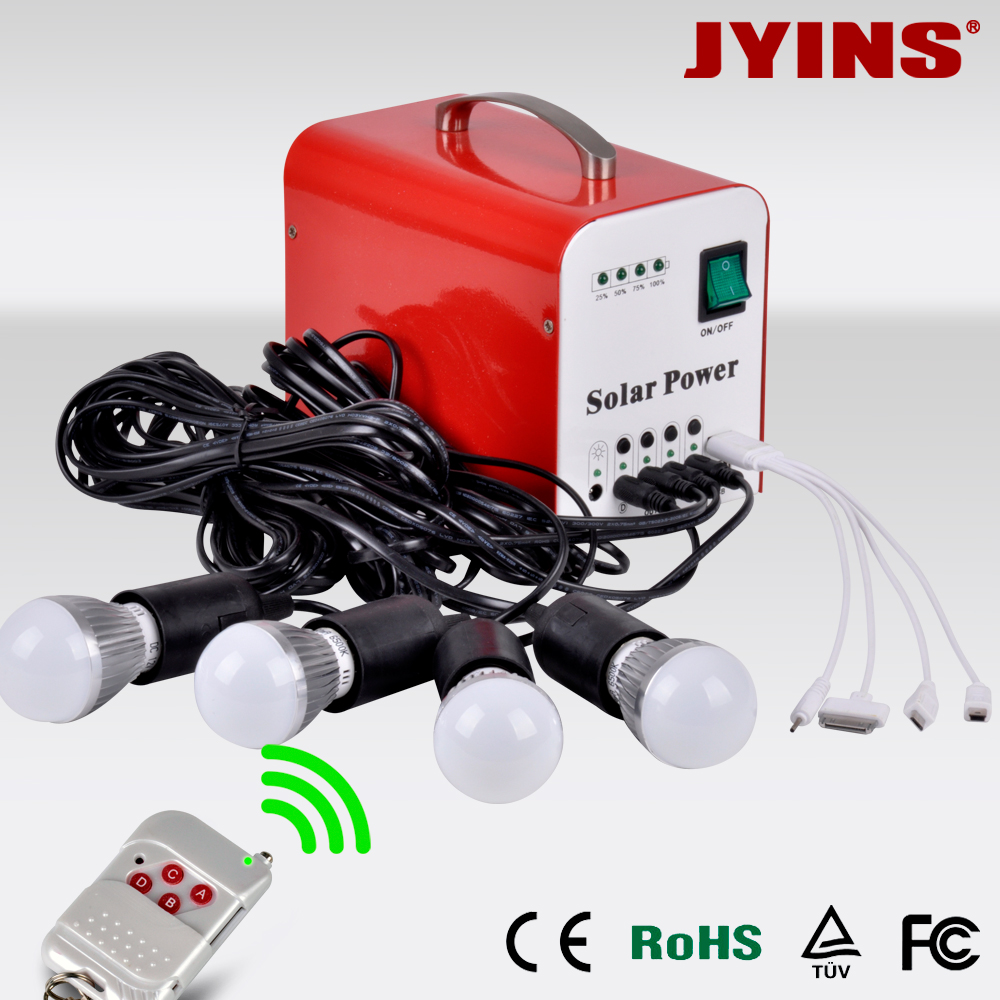

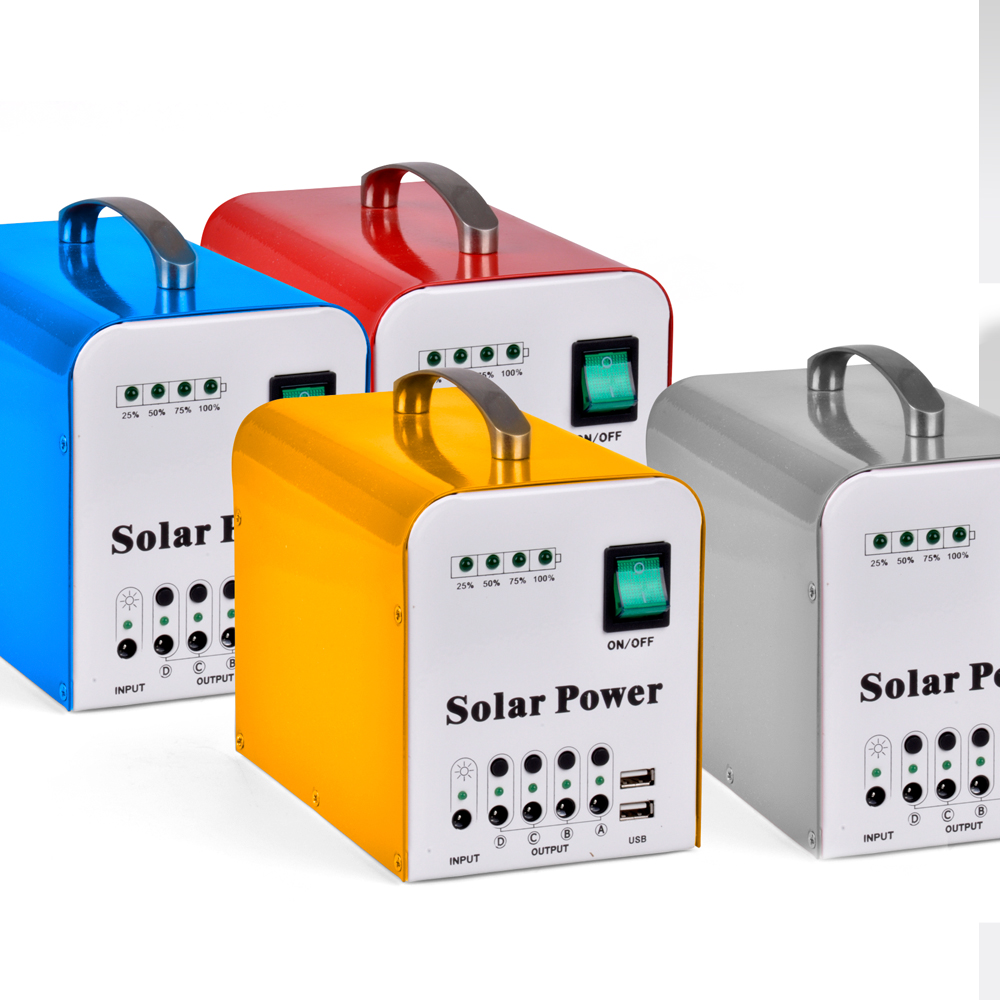

DC solar lighting kit

-Switching mode: manual & remote-control
-Output: DC12V/5V, safe and reliable
-Pure DC output with lower loss
-Use LED light, high brightness & energy saving
-Portable and convenient
-Protect function for overload, battery overcharge & discharge, output short circuit,etc


Technical parameter:
Product Name Specification JYSY-050A
Solar panel Model No. JYSY-P10 (poly crystalline)
Rated Maximum Power 10W
Maximum Power Voltage (Vmp) 18V
Maximum Power Current (Imp) 0.56A
Open Circuit Voltage(Voc) 21.24V
Short Circuit Current(Isc) 0.611A
Maximum System Voltage 1000V
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12V7AH
Solar controller Rated Voltage(V) 12V
Maximum charging current(A) 3A
Floating charge protection(V) 14.4V
Equalizing charge protection(V) 13.8V
Voltage range (V) 10.8-16.5V
Operating temp. -40℃～+60℃
Accessories PV cables 5m
Remote control 1 pc
USB charging wire 1pc
3w Led lamp 4pcs
5m lamp wire and lamp holder 4 sets
Manual 1pc
Packing Information
Volume(m³) 0.016 cbm/set
G.W.(kg) 4.9 kg/set
Quantity/20GP 1562 set
How much electricity the solar system produce?
Charging mode solar panel
Charging time By solar panel about 8.4 hours.
Daily production: 34w-54w
Working time(full charged) 3W lamps*2pcs work 14 hours; 3W lamps*4pcs work 7 hours
The solar lighting system can supply power for light, 6''fan, mobile phones, MP3 players and other 5V electronic equipments.
