SC1205-JYINS Electric

SC1205

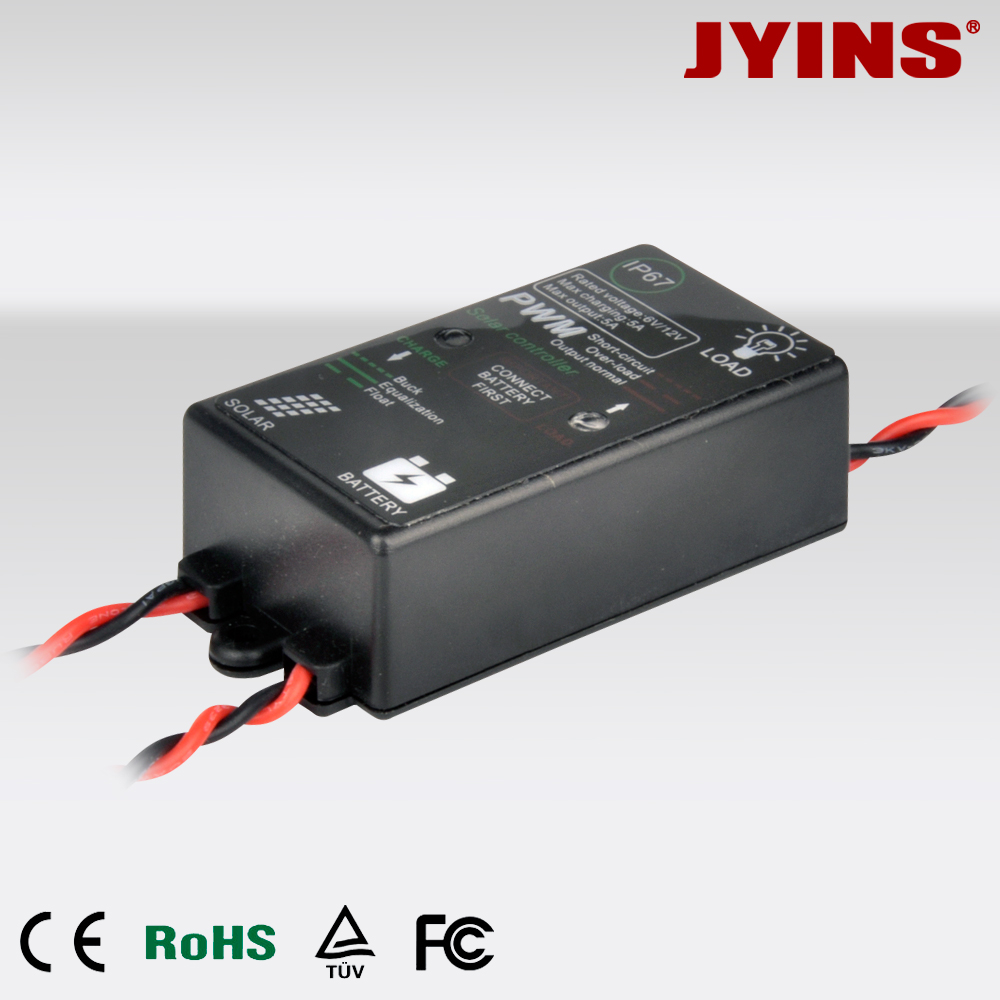

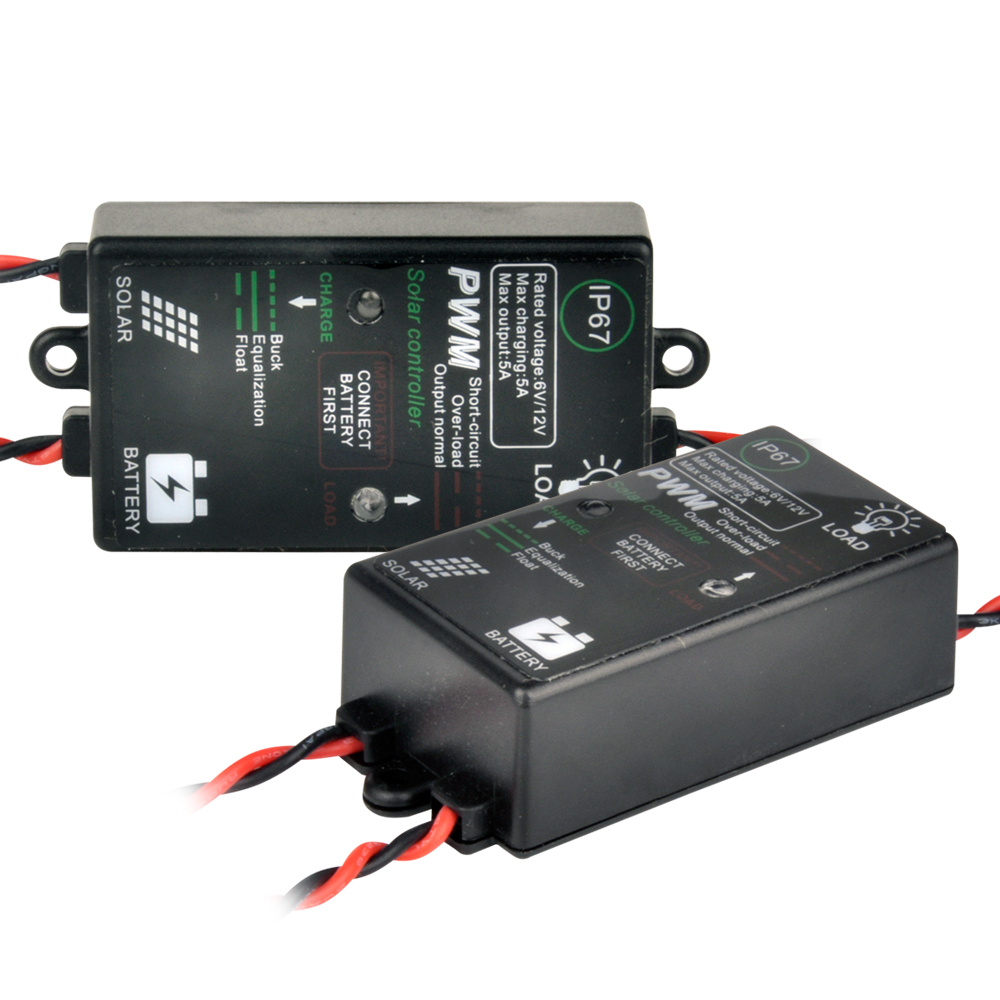

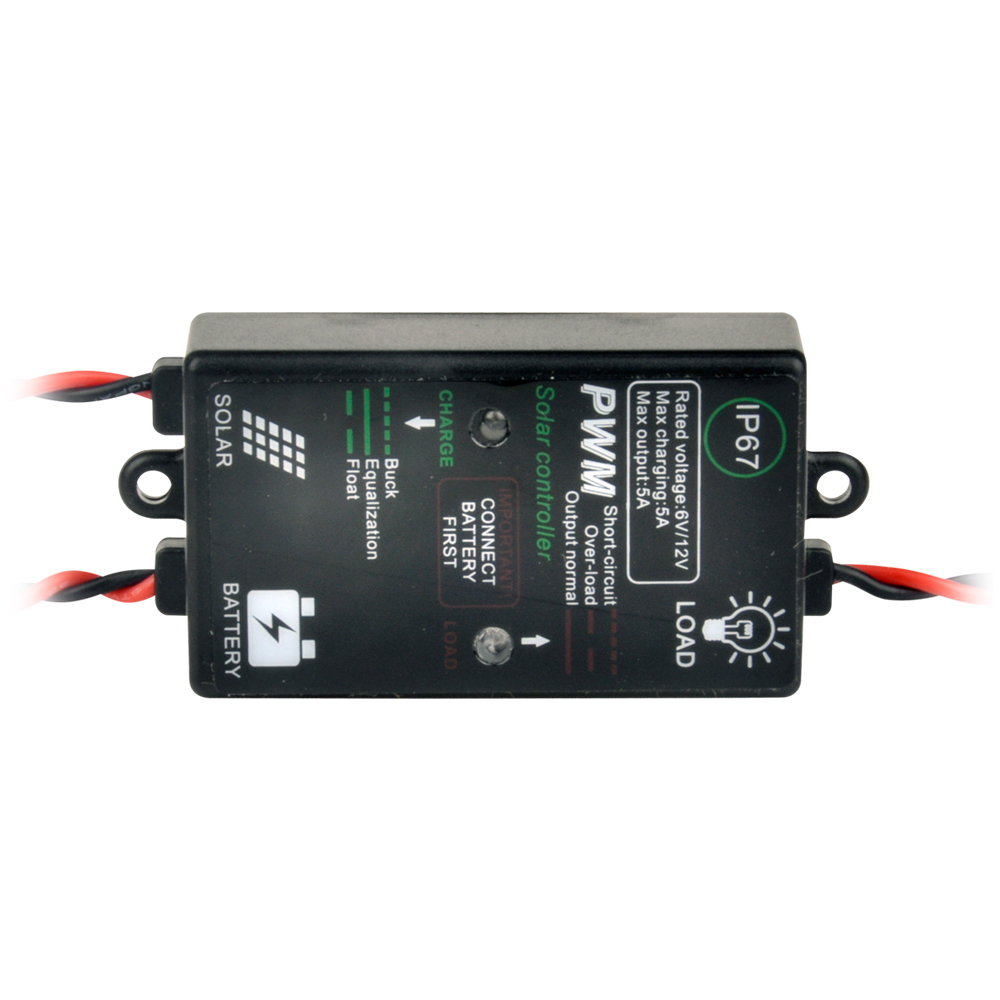

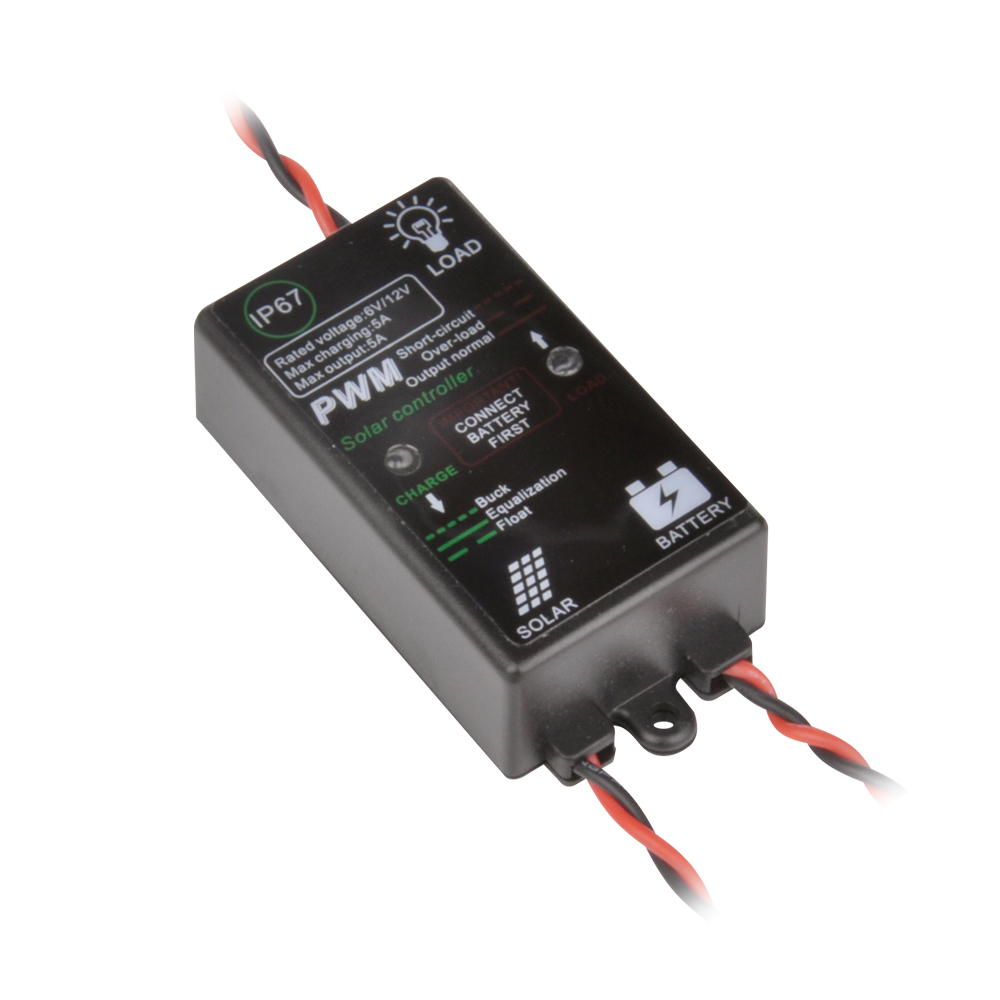

Water-proof solar charge controller

Print This Page

E-Mail To Us: info@jyins.com

Add to Inquiry basket View My Inquiry Basket SEND INQUIRY

PDF File: SC1205 controller

Introduction

The SC-Series solar charge controller applies a microchip for intelligent control.The charging efficiency can be highly increased by using dual-mos charging circuit ,compared to normal diode for reserve current protection. The controller can extend the battery life with build-in 4-stage PWM charging program.It is equipped with various of protection function such as over-charge protection,over discharge protection ,over-load protection,reverse current protection.

Installation

Connect the individual components to the symbols provided.
Observe the following connection sequence during commissioning:
1.Connect the battery to the charge controller - plus and minus
2.Connect the photovoltaic module to the charge controller - plus and minus
3.Connect the consumer to the charge regular - plus and minus
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
*********Both LED will be flashing for 5 times when you first connect battery to the controller,this can be as a system start signal.Controller is broken if you can't see this.
ATTENTION!
1.Controller will be broken if you don't follow the connection sequency
2.Please use big cable to reduce voltage drop on wire.
3.This controller is without short-circuit protection.Therefore,we strongly recommended to connect a fuse to the circuit.

Daily maintenance

The controller is builded to be fully automatic.Please keep the controller out of water and dust after installation.No maintenance is necessary in normal condition.If the voltage is too low and not enough to start the controller(in some extreme weather),please disconnect the solar controllers and active the battery manually ,after that,connect the system again..

Specification

Model	SC601	SC603	SC605
Max charge current	1A	3A	5A
Max discharge current	1A	3A	5A
Over load	About 2A	About 4A	About 6A
Rated battery voltage	6V
Max solar panel input voltage	10.8V
Equalize voltage	7.4V
Constant voltage	7.1V
Float voltage	6.9V
LVD	5.6V
Discharge return	6.3V
Charging control	PWM 3 stage
Standby lost	2.8mA@6V
Min start voltage	4.5V
wire	20AWG*10cm
Size/weight	60x25x18mm/50g

Attn：1.All voltage are for 12V system,pls time 2 if you are using 24V system

2.voltage tolerance 1%

3.Product specifications are subject to change without prior notice
