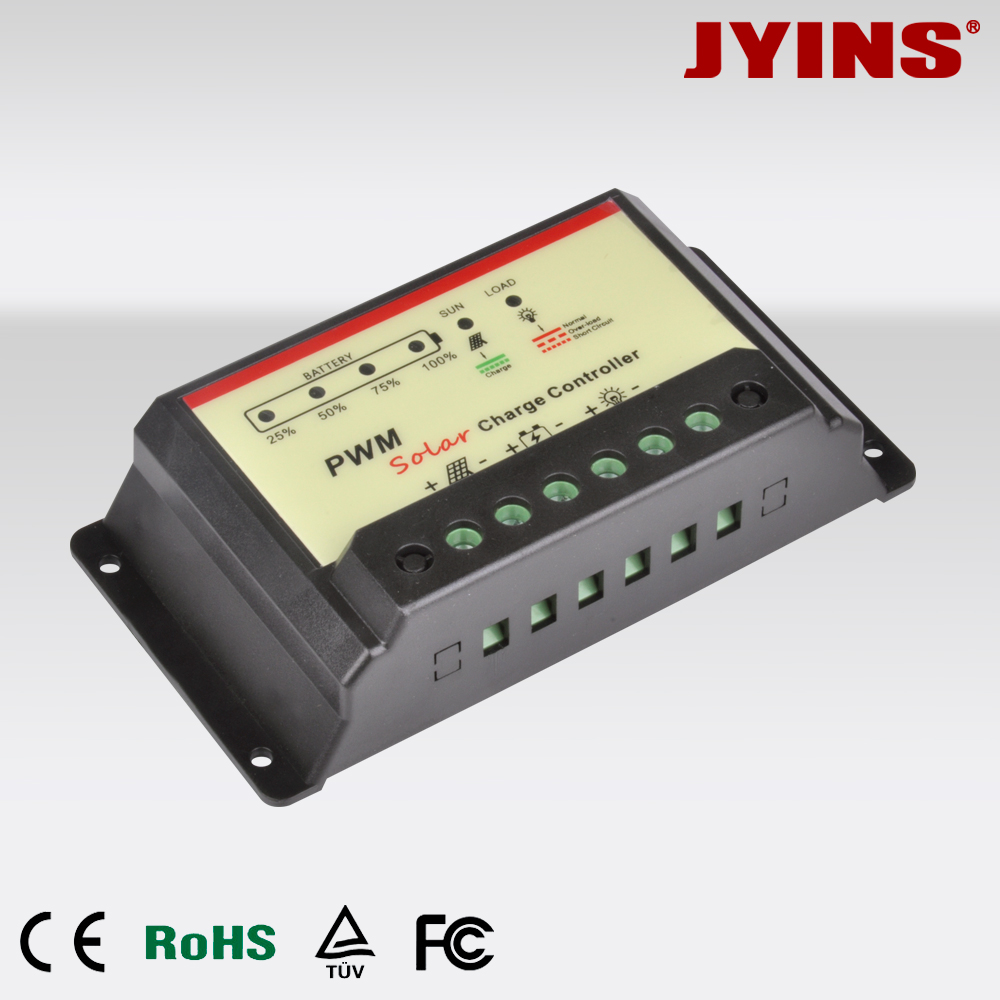

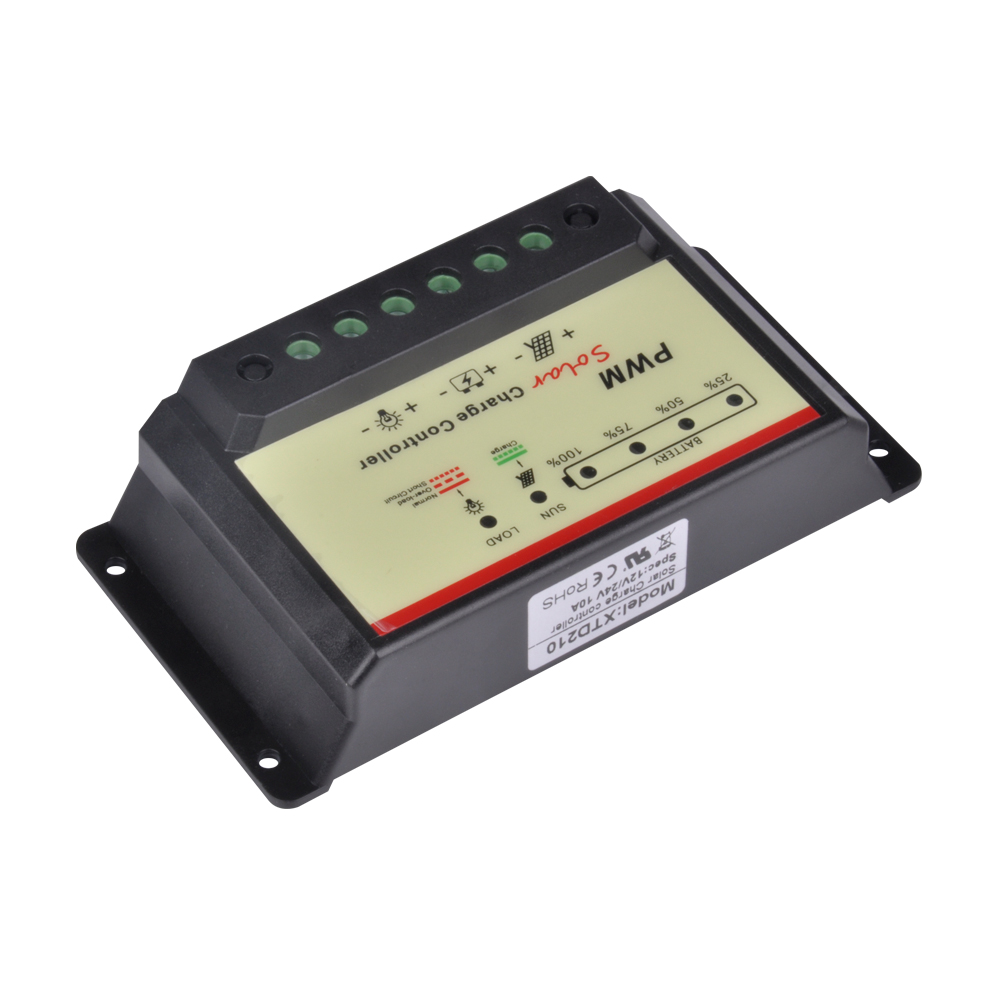

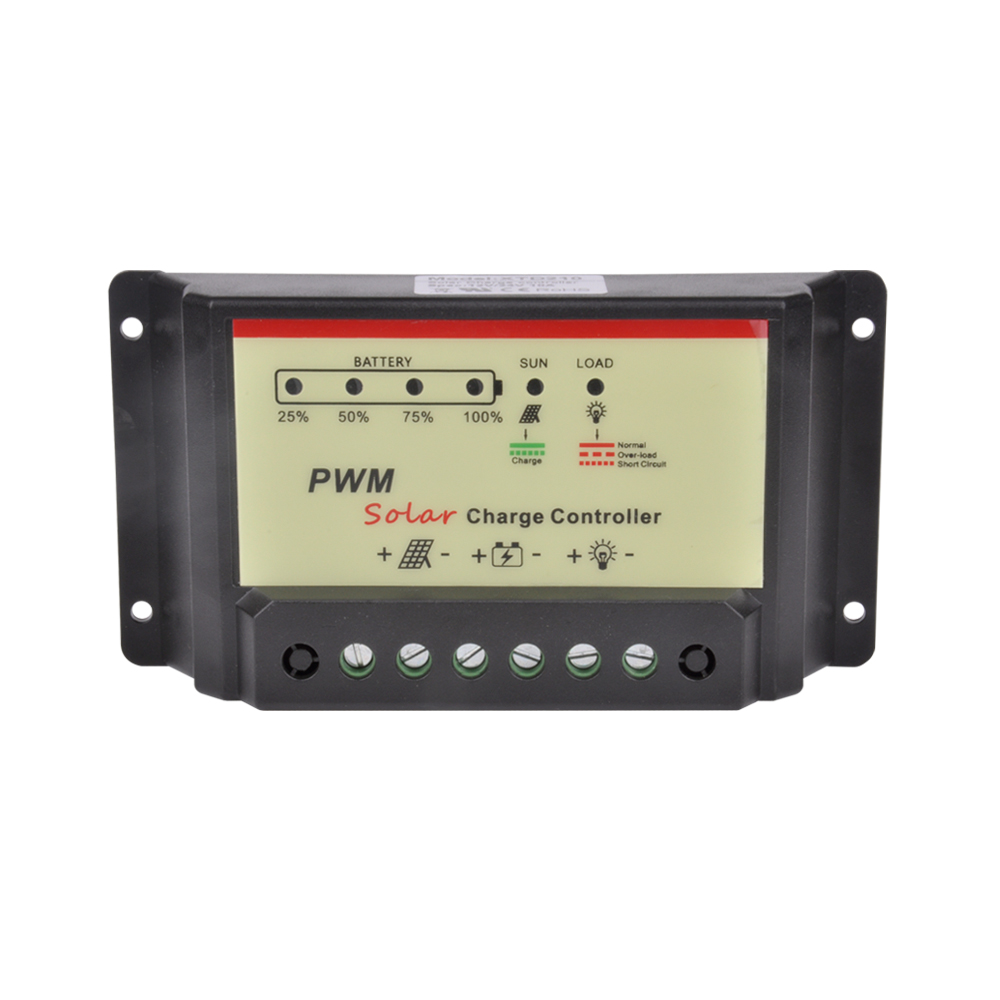

XTD210

Solar system controller

PDF File: XTD210 controller
SAFETY INSTRUCTIONS
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL
it is not suited for nickel metal hydride, lithium ions or other batteries.
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
PRODUCT FEATURES

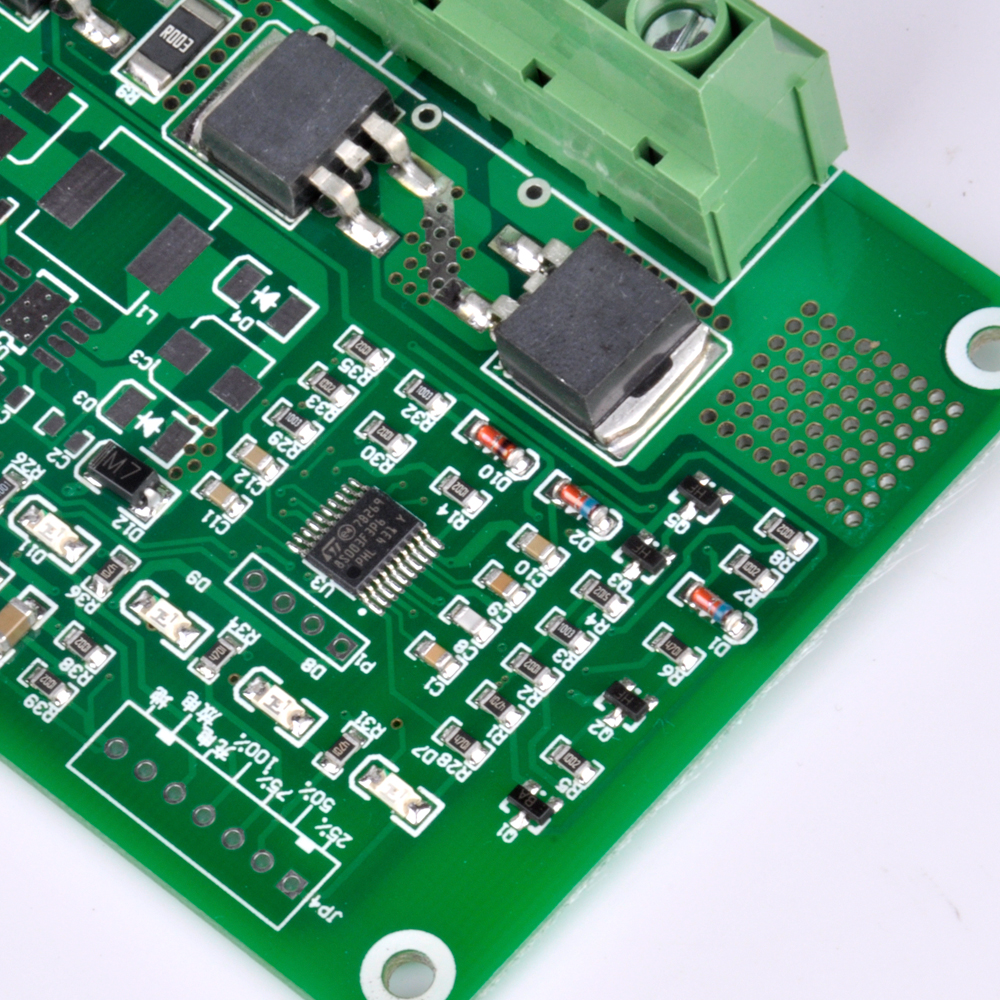

1.Build-in industrial micro controller.
2. Input and output LED display,asimple 4-stage battery capacity indicator.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
SYSTEM CONNECTION
1.Connect the battery to the charge regulator - plus and minus.it will detect the battery voltage and goes to charging progress.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
TECHNICAL PARAMETER

MODEL

XTD110

XTD120

XTD210

XTD220

Batt voltage

12V

12V/24V

Charge current

10A

20A

10A

20A

Discharge current

10A

20A

10A

20A

Max Solar input

42V

Charge drop

<0.2V

Discharge drop

<0.25V

Equalization

14.8V

Bulk

14.5V

Acceptance

14.2V PWM

Float

13.8V

Charge reconnect

13.0V

Discharge stop

11.2V

Discharge reconnect

12.6V

Self-consume

<10mA

Temperature compensation

N/C

USB output

N/C

N/C

Operating temperature

-35~+60 ℃

Size/Weight

133*70*35mm /150g

*all red color voltage X2 while using 24V system

*Product specifications are subject to change without prior notice
