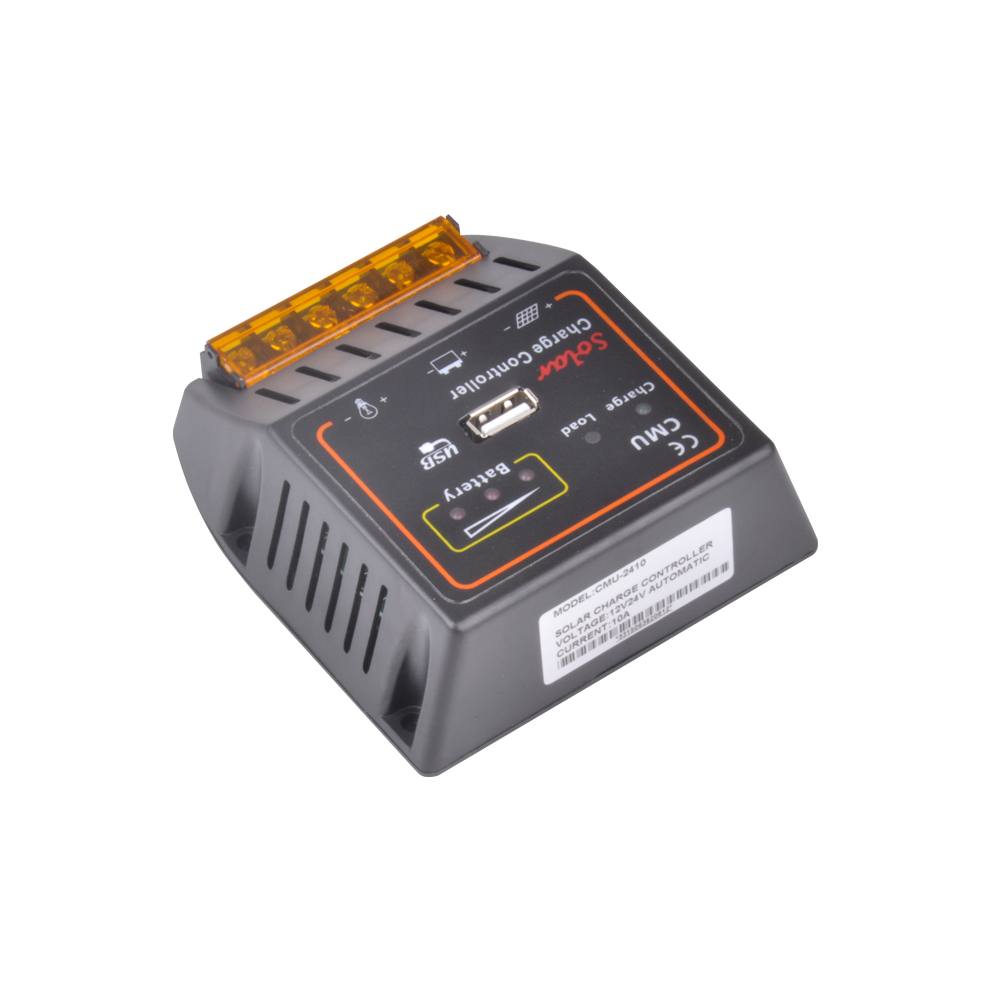

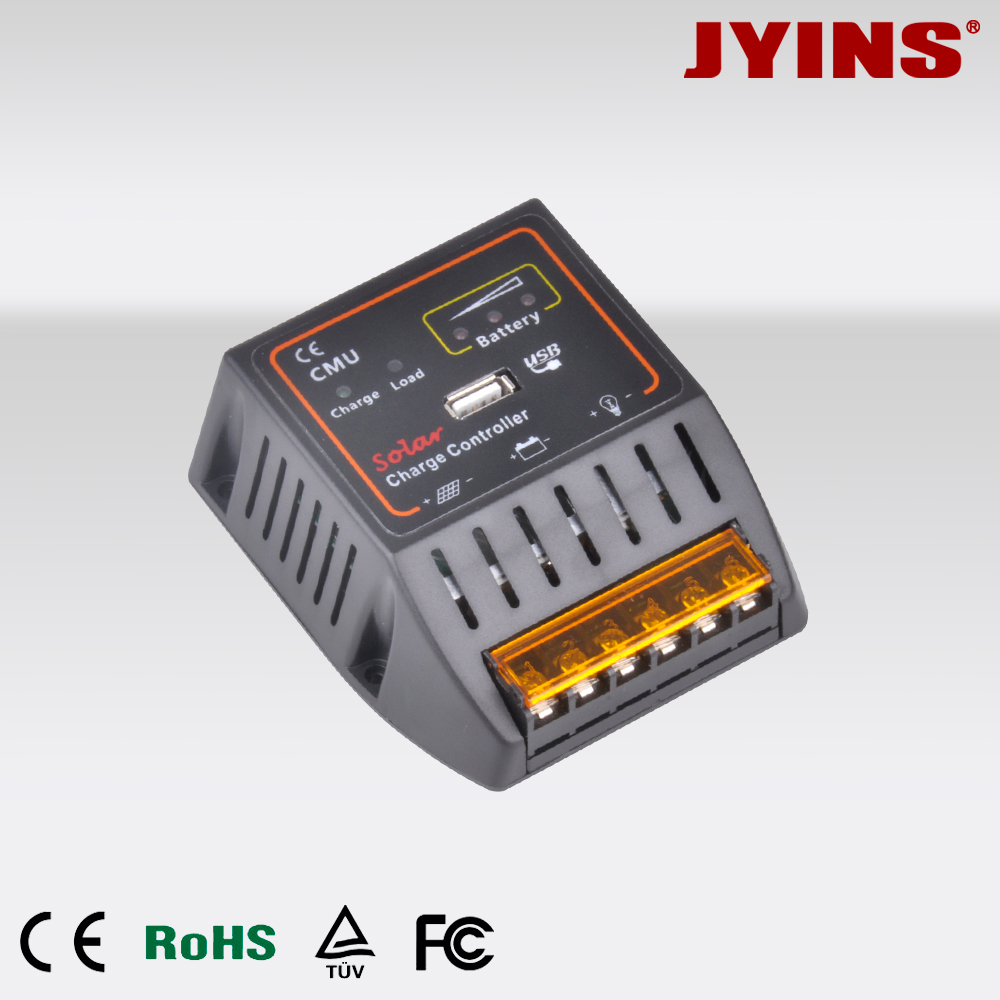

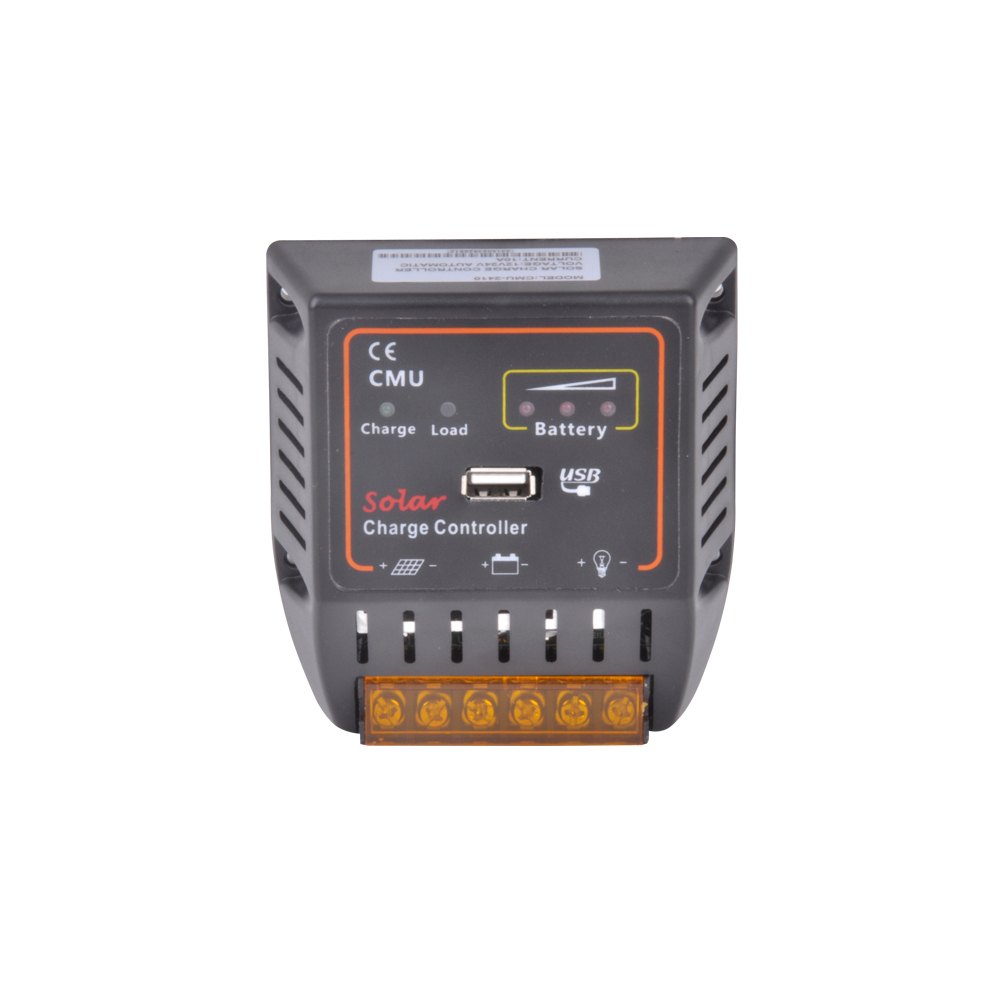

CMU2410

Solar system controller

Print This Page

E-Mail To Us: info@jyins.com

Add to Inquiry basket View My Inquiry Basket SEND INQUIRY

PDF File: CMU2410 controller

Product Overview

1. Use single-chip microcomputer control which makes the controller has the advantages of intelligent, strong adaptability, reliable function.
2. Use PWM charge mode, which can improve system efficiency and prolong the life span of the battery.
3. Clear charge state, discharge state and battery power display.
4. Adopts the modified shell which accords with air flow, has better cooling effect (compare with the old version).
5. Optimize the assembly design, the structure more stable (new shell uses 4 screws, old version use 2 screws).

Protection

1. Over-load protection
2. Short circuit protection
3. Lightning protection
4. Under-voltage protection
5. Over-charging protection
6. Reverse polarity protection

Installation Instructions

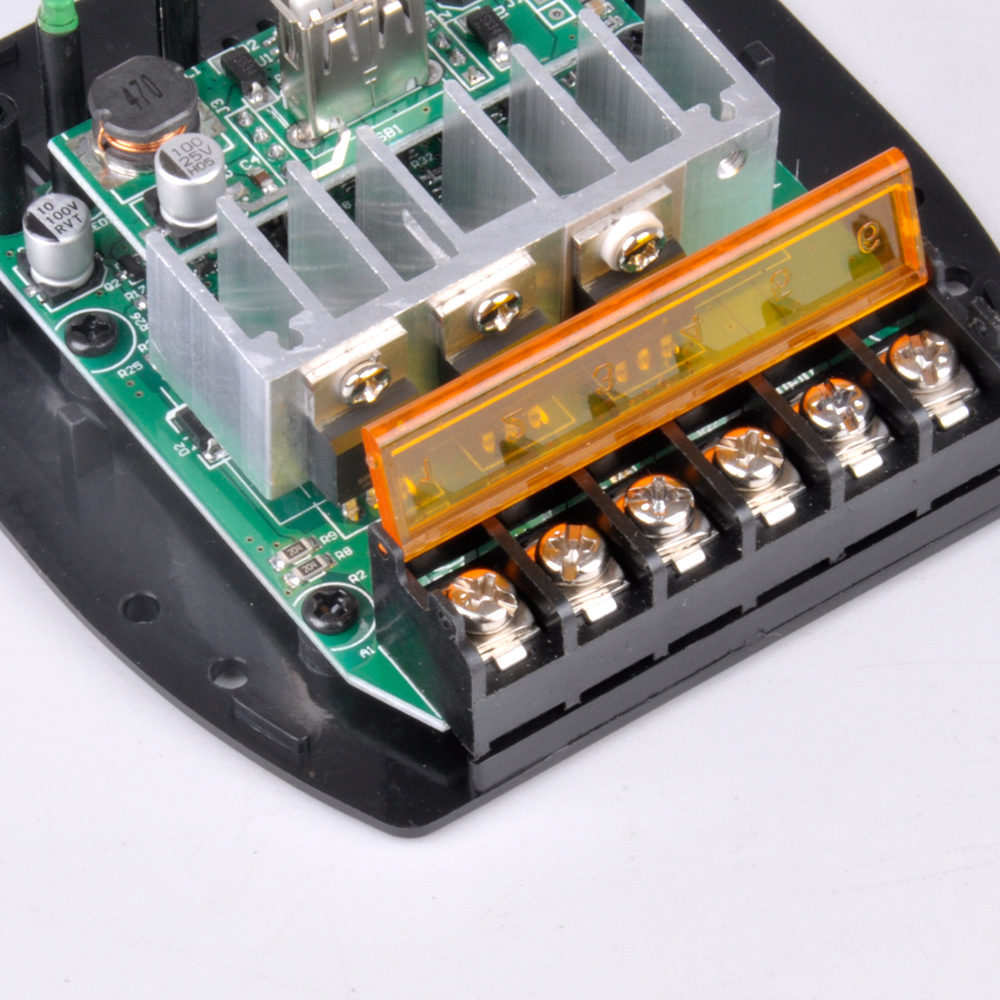

Open the top cover of controller and connect the wire with terminals as the diagram on the top cover of it.
Please first connect the battery, and then connect the solar panel and the load in order.
The controller has reverse polarity protection internally, but if the connection error still may damage your controller.
Please make sure the voltage and current are within the rated range of controller.

Specification

Model	CMP -2410	CMP -2420	CMU -2410	CMU -2420	CMD -2410	CMD -2420	CMK -2410	CMK -2420	CMKU -2410	CMKU -2420
Rated charge current	10A	20A	10A	20A	10A	20A	10A	20A	10A	20A
Rated discharge current	10A	20A	10A	20A	10A	20A	10A	20A	10A	20A
Rated voltage	12V/24V
Over discharge voltage	10.5V/21.0V
Discharge recovery voltage	12.2V/24.4V
Voltage of stop charging	14.7V/29.4V
LED voltmeter	-	-	-	-	√	√	-	-	-	-
LCD display	-	-	-	-	-	-	√	√	√	√
Output switch	-	-	-	-	-	-	√	√	√	√
USB output voltage	-	-	5V	5V	-	-	-	-	5V	5V
USB output current	-	-	2A	2A	-	-	-	-	2A	2A
Working temperature	-20～+60℃
Temperature compensation	-3mV/℃/cell
Dimension of controller	103×95×38(mm)（L×W×H）
Packing dimension	115×102×55(mm)（L×W×H）
Weight	160g～180g

*Parameters may customized by customers.

P₁Product Overview P₂ Protection P₃Installation Instructions P₄Specification
