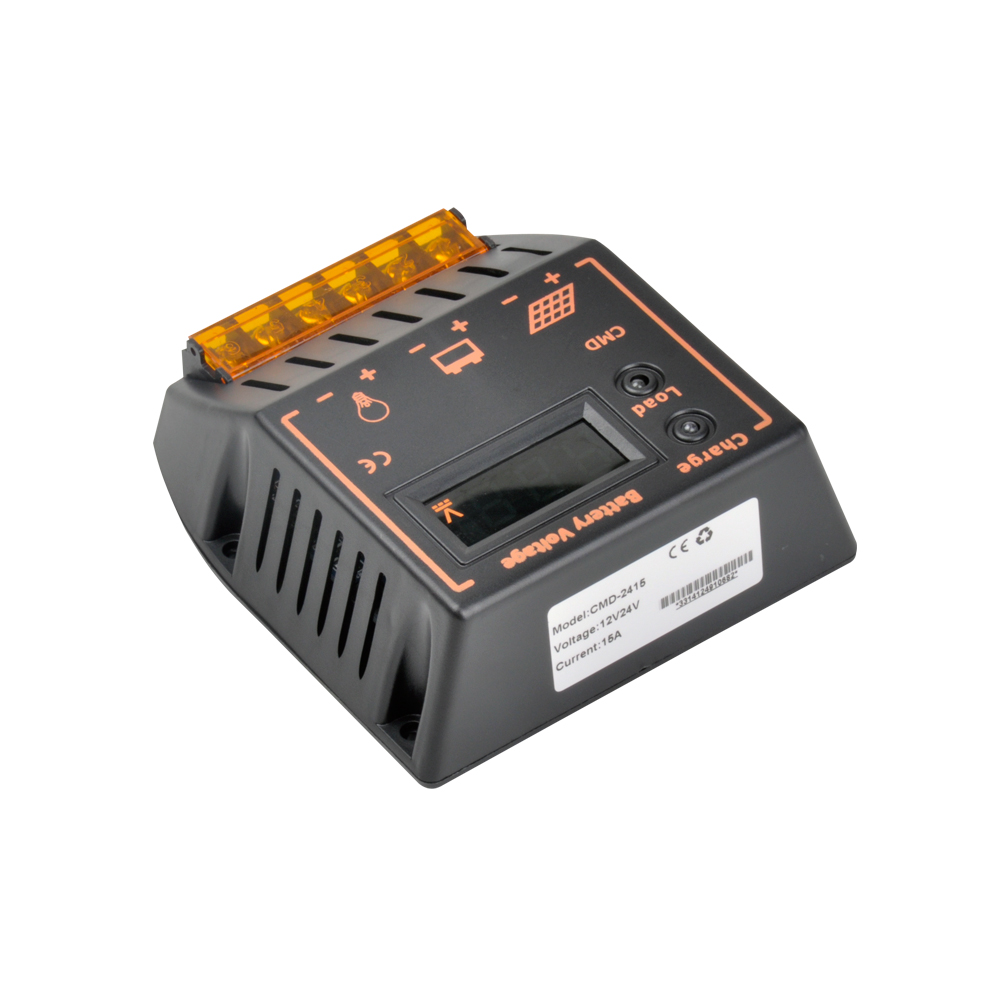

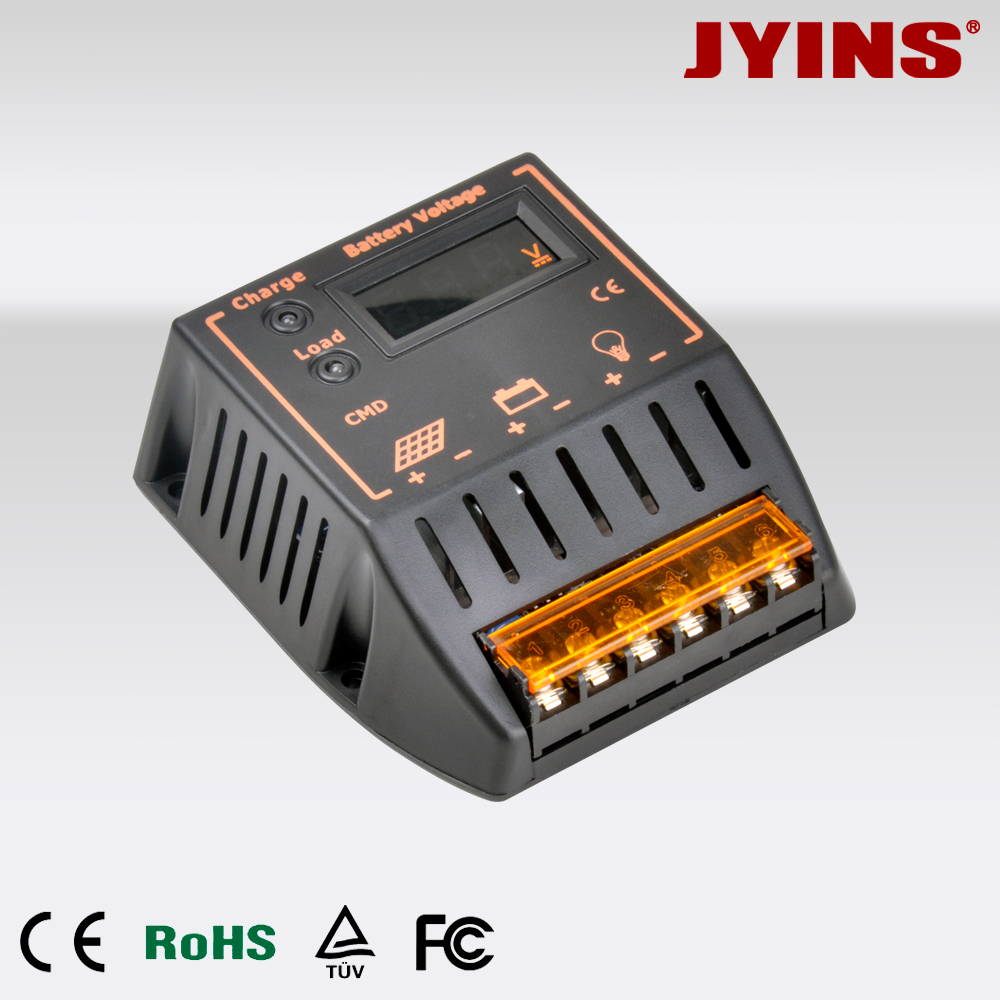

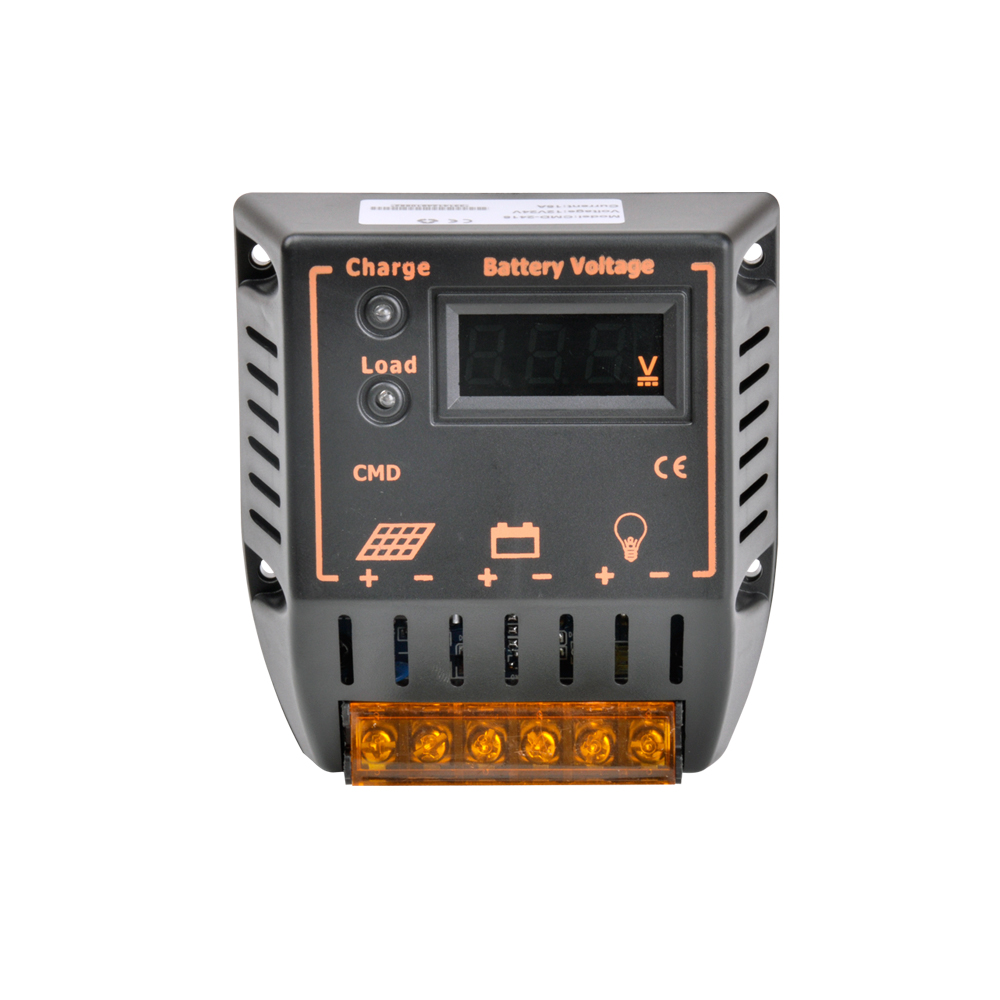

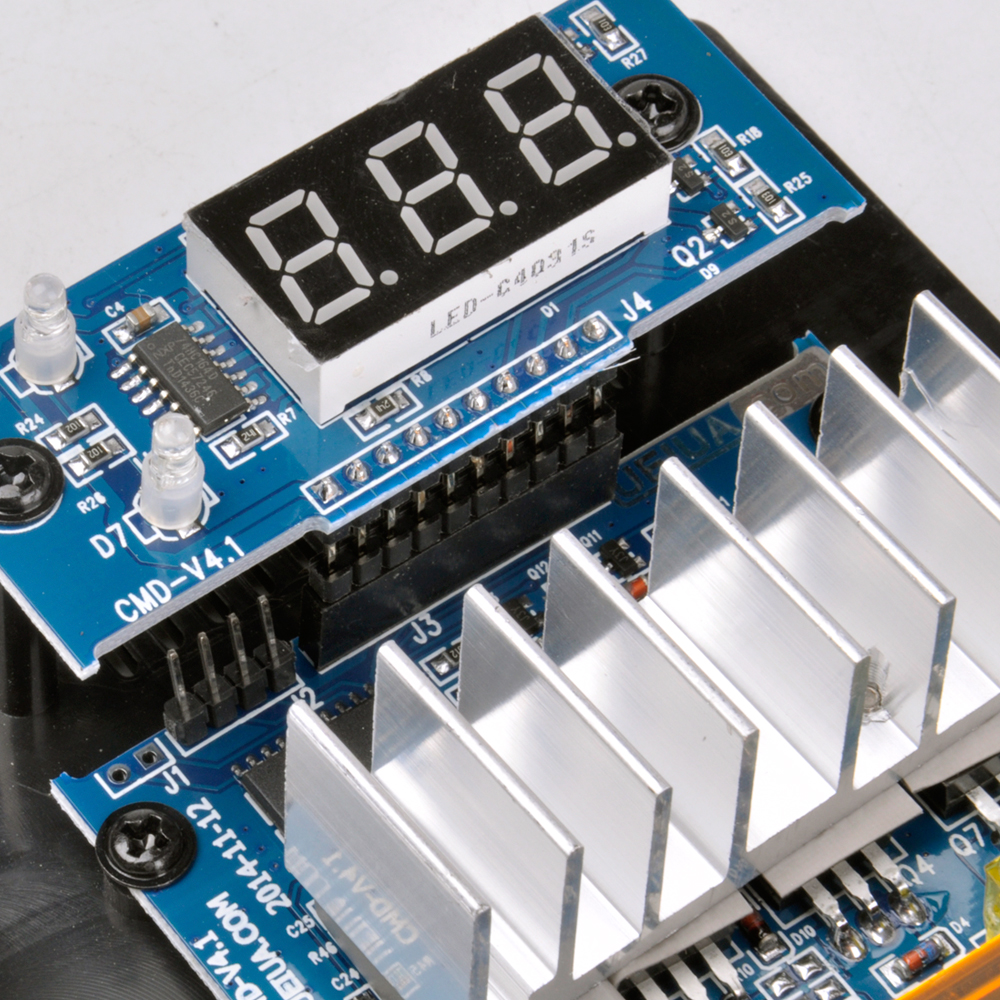

CMD2415

Solar system controller

PDF File: CMD2415 controller
Product overview
1. Use single-chip microcomputer control which makes the controller has the advantages of intelligent, strong adaptability, reliable function.
2. Use Ueiua PWM upgrade control scheme WPC mode, which can improve system efficiency and prolong the life span of the battery.
3. With intuitive digital tube to show the current battery state, it is convenient for the user to know the working condition of the controller.
Protection
1. Over-load protection
2. Short circuit protection
3. Lightning protection
4. Under-voltage protection
5. Over-charging protection
6. Reverse Polarity Protection
Installation Instructions
Open the top cover of controller and connect the wire with
terminals as the diagram on the top cover of it.

1.Connect the “+”, “-” Poles of the battery to the corresponding ports of controller (the third and the fourth one from left).

2.Connect the “+”, “-” poles of the solar panel to the corresponding ports of controller (the first and the second one from left).

3. Connect the “+”, “-” poles of the load to the corresponding ports of controller (the fifth and the sixth one from left).
Note: If there is connection error, it may damage your controller.
Technical Data

Model

CMD-2405

CMD-2410

CMD-2415

CMD-2420

Rated charge current

5A

10A

15A

20A

Rated discharge current

5A

10A

15A

20A

Over load, short circuit protection

1.5 times by rated current

Short circuit recovery time

10s

Open circuit voltage of solar panel

40V

No load loss

0.05W

Over voltage protection

15V; ×2/24V

Float charge voltage

14V; ×2/24V

Discharge recovery voltage

12V; ×2/24V

Over discharge voltage

10.5V; ×2/24V

Control mode

                    software intelligent control

Working temperature

-35℃～+55℃

Dimension

95.1×102.5×38.5(mm)（L×W×H）

Weight

185g

*Parameters may customized by customers. If you need any assistance or have further questions, please don't hesitate to contact with Ueiua or our dealers.
