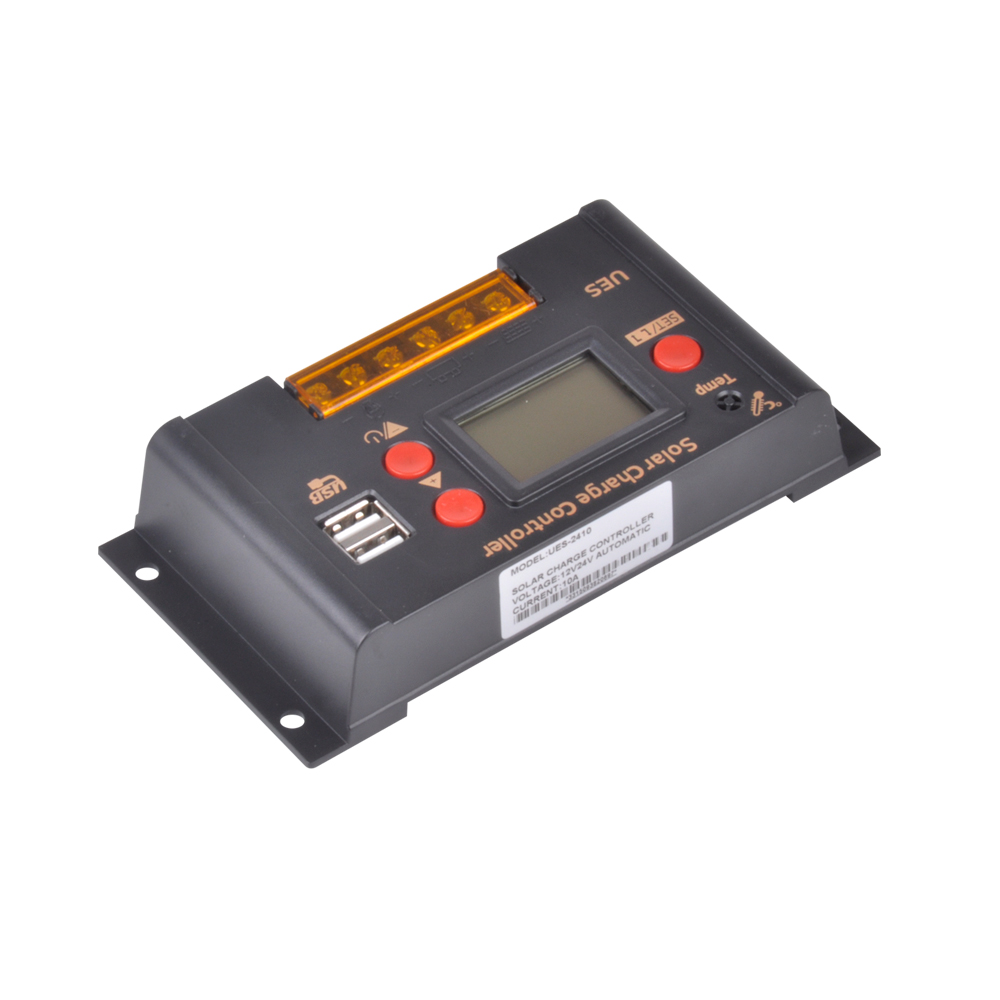

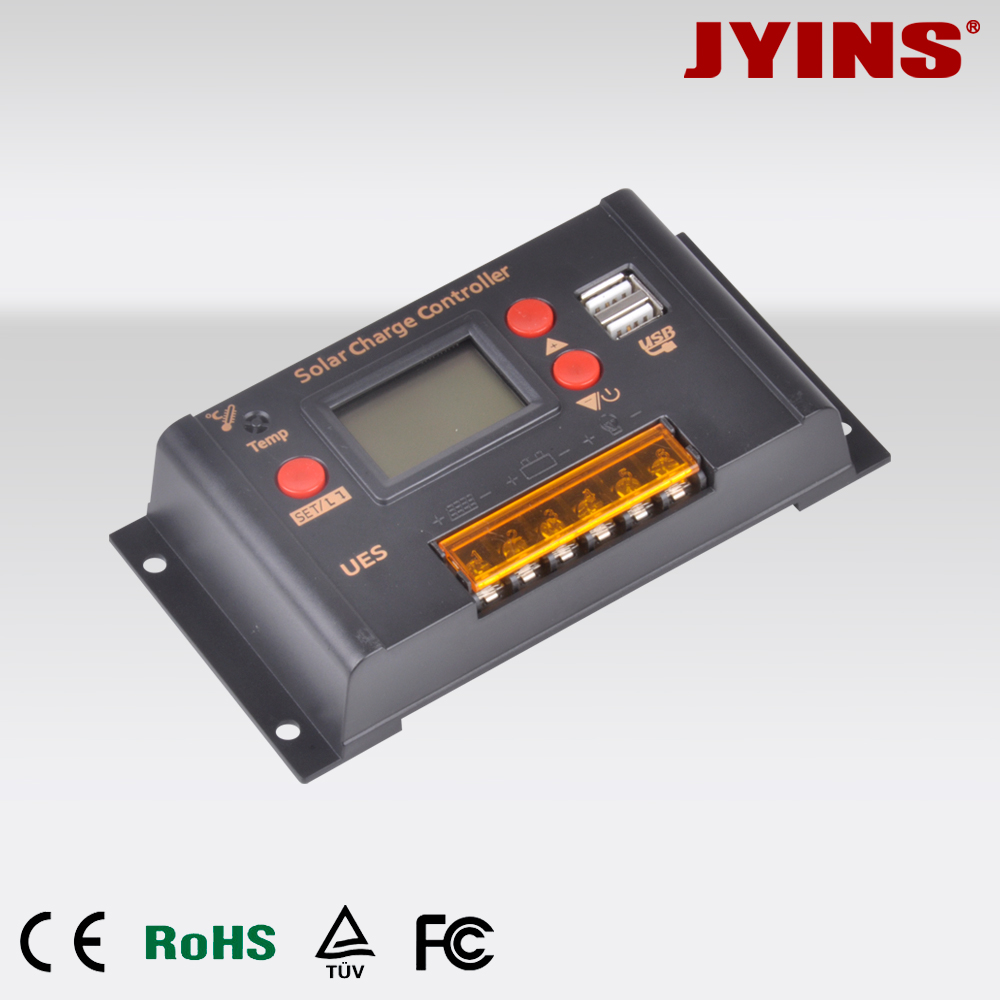

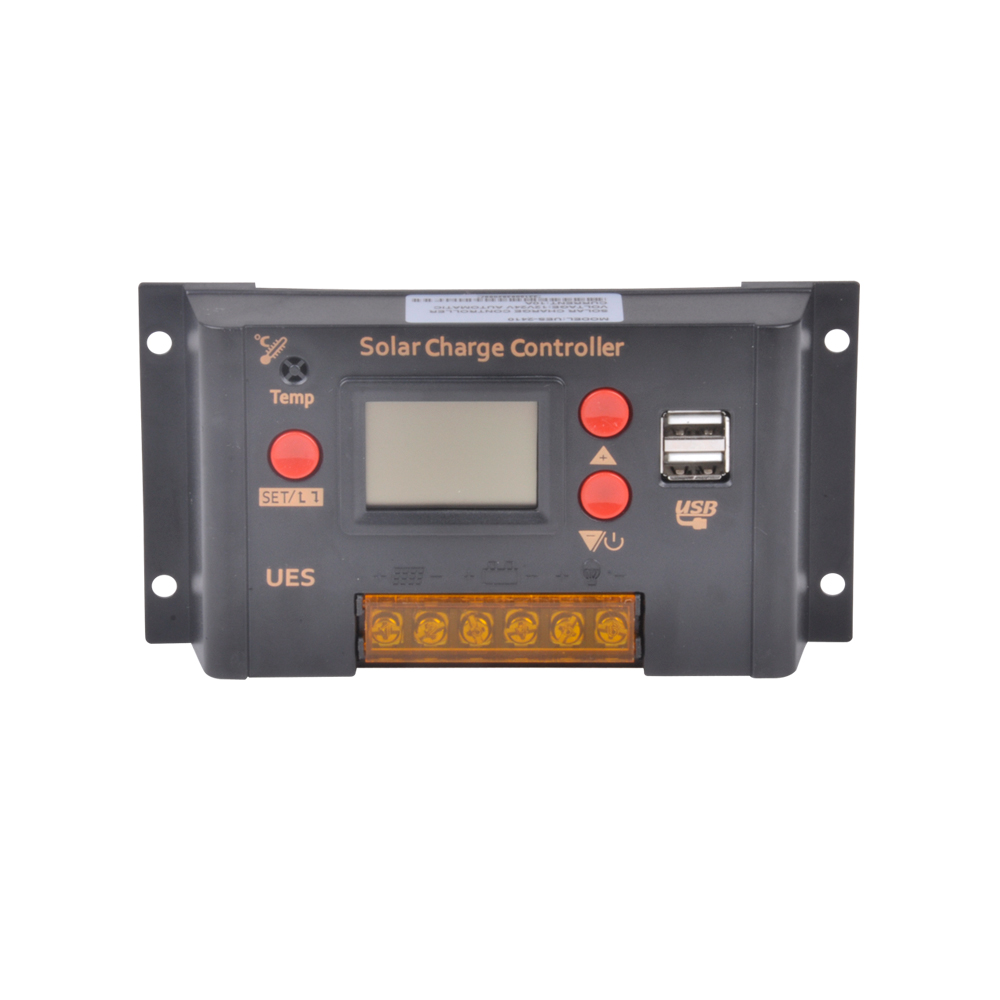

UES2410

LCD solar charge controller

PDF File: UES2410 controller
Product Introduction
UES series solar charge controller is a kind of intelligent, multi-functional solar charge and discharge controller. These serial products adopt customized LCD display screen, which makes the operation on the interface rather convenient. All the controlling parameters can be reset flexibly to satisfy your different needs.
This controller has the following features:
● Visual LCD graphic symbol                                                           ● Brief key operation
● Automatic identification system voltage level                                 ● Intelligent PWM charge mode
● Automatic temperature compensation                                          ● Multiple selection of battery
● Adjustable charge-discharge control parameters                             ● Settable operating modes of loads
●Accumulated function of charge and discharge ampere hours            ● Battery over temperature protection
● Battery low voltage protection                                                     ● Battery reverses polarity protection
● Overload & short circuit protection                                                ● With Dual USB 5V output

Specification

Model

UES-2410

UES-2420

Max. charge current

10A

20A

Max. discharge current

10A

20A

Max. solar panel input voltage

≤55V

Rated voltage

12V/24V auto work

Stop charge voltage

14.7V/29.4V

Low voltage recovery

12.2V/24.4V

Low voltage protection

10.5V/21.0V

USB output voltage/current

5V 2A

Characteristic

No load loss:≤10mA; Temperature compensation:-3mV/cell/℃

Operation temperature

-20℃~60℃

Dimension of controller

152×80.2×30mm (L*W*H)

Package size

163×95×40mm (L*W*H)

Weight

200g

*Parameters may customized by customers.
