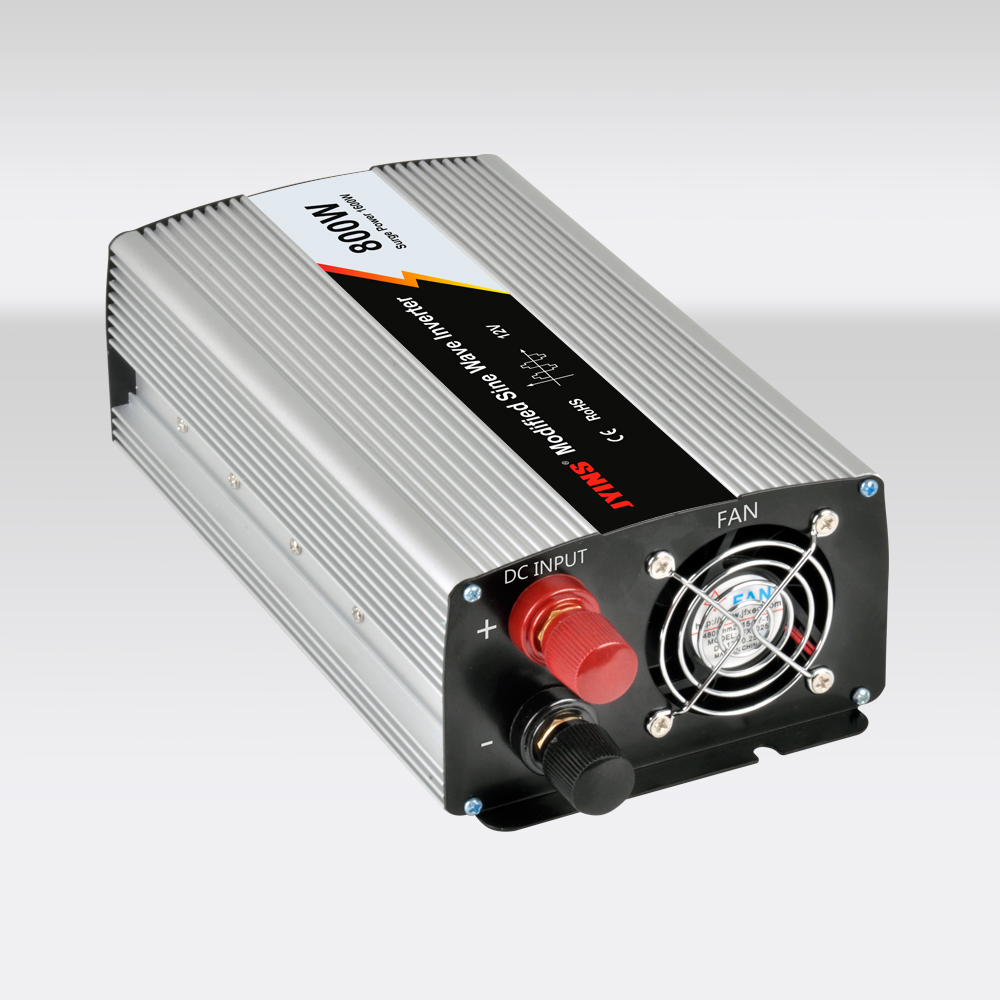

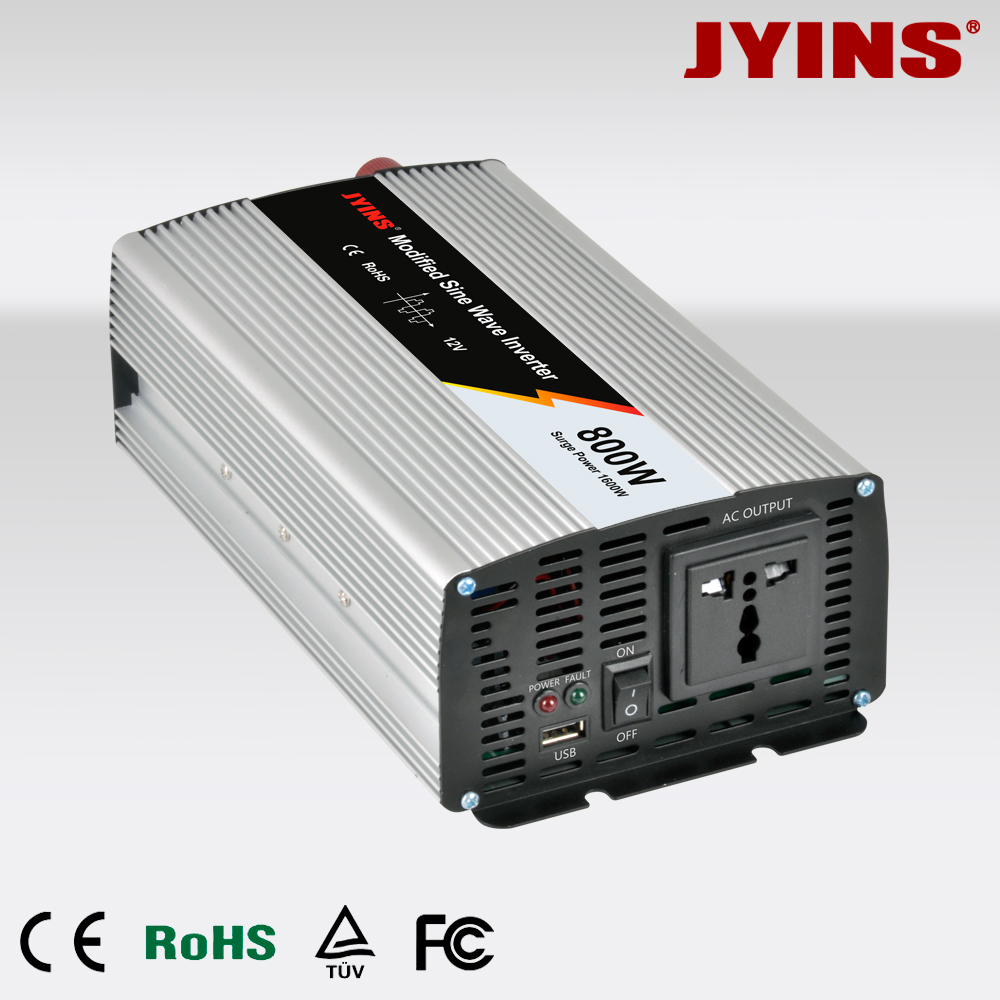

Product description:
JYM series inverter is modified sine wave inverter, JYM series fullly contain 75W-6000W, It can convert 12V/24V/48V DC from dedicated batteries or DC outlet in vehicles or boats
into 110V/120V/220V AC power. Modifeid sine wave inverter is a reliable and cost-effective choice, more economical than pure sine wave inverter.It have the advantage to run all
resistive load.
Application For:
1. Industrial equipment: solar energy system, solar street light system, etc.
2. Travel set equipment: vehicles, ambulances, RV, boats,traffic lights, etc.
3. Office equipment: computers, printers, scanners, digital cameras, etc.
4. Household electrical equipment: electric fans, light bulb ,Energy-saving lamp, hair dryer, etc.

Unavailable For:
Most sensitive load such as ivacuum cleaners, air conditioning, LED lighting,microwave, refrigerators,saws, drills.

Product features:
·Modified sine wave output.
·Soft-start technology.
·High efficiency-converts the battery’s available power
·100% sufficient power.
·Aluminum shell with good heat dissipation and strong shock resistance.
·Optional Crocodile clip and cigar lighters , easy to connect batteries.
·USB charging port: 5V , ideally qualified for powering your phone,laptop,etc.
·LED indicators for power and protections.
·Switch-mode design, easy to use.
·Intelligent fan for cooling,long use life.
·OEM and ODM are available, Shell color can be customized.
·Optional remote control and LED display for 800W-6000W inverters.
Protection Functions:
Over load protection
Over temperature protection
Over voltage protection
Low voltage protection
Short circuit protection
Revers polarity protection
Technical parameter:
Model JYM-800-1 JYM-800-1 JYM-800-1 JYM-800-2 JYM-800-2 JYM-800-2
Rated power 800W
Peak power 1600W
Input voltage DC12V DC24V DC48V DC12V DC24V DC48V
Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
Unload current less than 0.8A 0.5A 0.2A 0.8A 0.5A 0.2A
Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform Modified Sine Wave
USB port 5V 1A
Max.efficiency 90%
Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
Low voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
Low voltage protection 10±0.5V 20±0.5V 40±15V 10±0.5V 20±0.5V 40±15V
Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
Low voltage recover 12.3±0.5V 24±0.5V 48±1V 12.3±0.5V 24±0.5V 48±1V
Over voltage recover 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V
Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
Working temperature -10°- +50°
Storage temperature -30°- +70°
Dimension(mm) 278x135x78mm
Packing(mm) 355x180x95mm
Net./gross weight(g) 1528/2028g
QTY/Ctn 10Pcs
Meas./Ctn(mm) 465x375x435mm
Gross weight/Ctn(g) 20280g
Warranty 1 years
Configuration Standard
Cooling method Intelligent air cooling
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
